LEGRANDTERTIARY CIRCUIT BREAKERS410858 LEGRAND MAGNET DIFER DX3 P+N 30mA C32

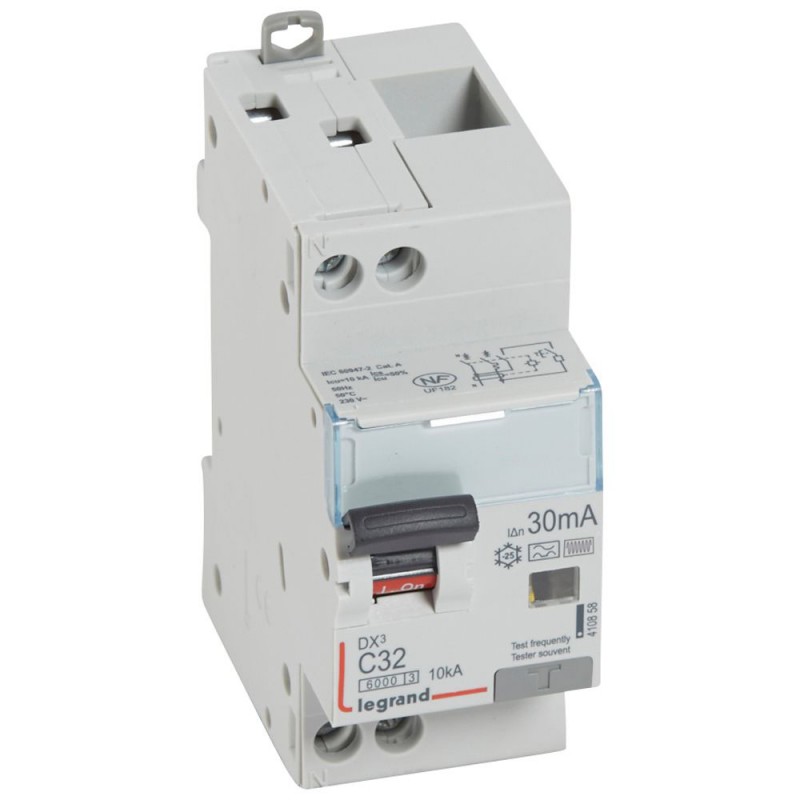

LEGRAND 410858 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

410858 LEGRAND MAGNET DIFER DX3 P+N 30mA C32

Code: 410858

Manufacturer: LEGRAND

Description:

MAGNET DIFER DX3 P+N 30mA C32
MAGNET DIFFER DX3 P+N 30mA C32
Magnetothermal differential DX3 6000/10kA - 1P+N - 230 V~ -32 TO-curve C - 30mA-type Hpi
Differential circuit breaker DX³ 6000/10kA curve C - 1P+N - 32A - 30mA - Type Hpi

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 90,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Single-pole + neutral 230 V~ Type Hpi curve C - Sensitivity: 30mA - rated current: 32 - Number of modules: 2 - Appliances with brand N except 40A

General characteristics

Automatic switches differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws

ETIM for 410858 Circuit breakers and fuses (EC000905)

Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.75 mm²
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueF
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameSurge current capacity (EF002564)
Feature value3 kA
Feature nameAnti-nuisance tripping version (EF009497)
Feature valueYes
Feature nameRated short-circuit breaking capacity according to IEC 60947-2 (EF006065)
Feature value10 kA
Feature nameRated short-circuit breaking capacity according to EN 61009 (EF012628)
Feature value6 kA
Feature nameRated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981)
Feature value6 kA
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameNumber of protected poles (EF005548)
Feature value1
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value2
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.75 mm²
Feature nameRated current (EF000227)
Feature value32 A
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameRelease characteristic (EF000889)
Feature valueC
Feature nameRated voltage (EF000228)
Feature value230 V
