LEGRANDINDUSTRIAL CIRCUIT BREAKERS409877 LEGRAND AUTOMATIC DX3 3P MA2.5 25KA

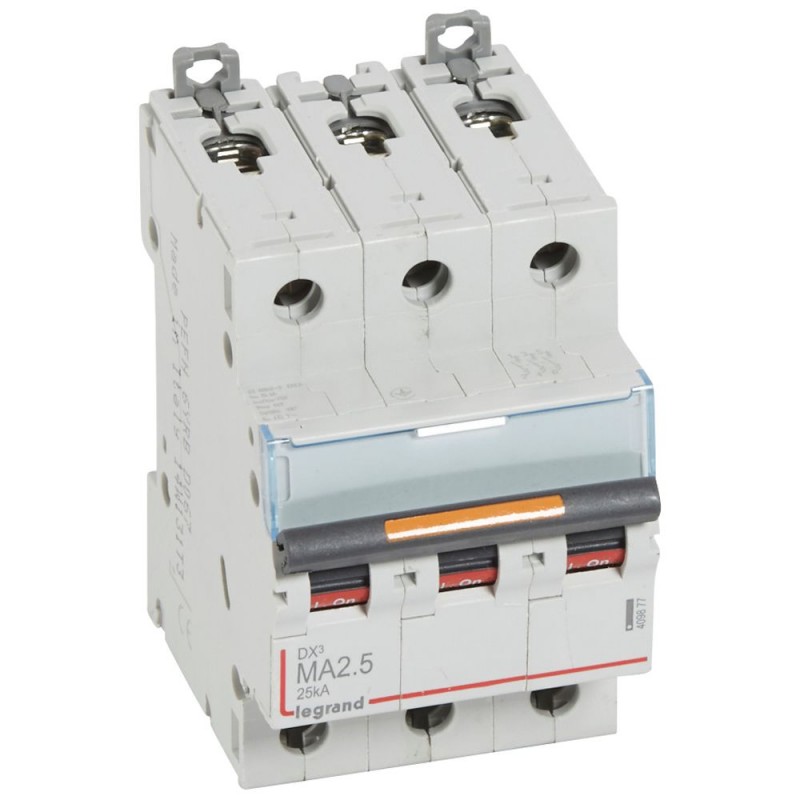

LEGRAND 409877 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

409877 LEGRAND AUTOMATIC DX3 3P MA2.5 25KA

Code: 409877

Manufacturer: LEGRAND

Description:

AUTOMATIC DX3 3P MA2.5 25KA
Automatic DX3 MA 25kA - 3P - 400V~ - 2.5 TO - just magnetic
Automatic DX³ MA 25kA - 3P - 400V~ - 2.5A - magnetic only

Categories:

  • Circuit breakers and fuses > Miniature circuit breaker (MCB)
  • LEGRAND > INDUSTRIAL CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 138,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Three-pole 400 V~ - Only magnet - rated current: 2.5 A - Number of modules: 4,5

General characteristics

MCB DX3 MA - 25 kA - breakers only magnetic protection of the outputs - breaking capacity: 25 kA - UNE-en 60947-2 - 400 V~ - Support the auxiliary and all of the controllers-motorized - Connection: top entry and bottom exit for terminals with screws - Are associated to the blocks of differential adaptive

ETIM for 409877 Circuit breakers and fuses (EC000042)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value1.5 mm²
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueNo
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameAdditional equipment possible (EF008148)
Feature valueYes
Feature nameRated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558)
Feature value25 kA
Feature nameRated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557)
Feature value50 kA
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4 kV
Feature nameNumber of protected poles (EF005548)
Feature value3
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value3
Feature namePollution degree (EF002570)
Feature value3
Feature nameWidth in number of modular spacings (EF002950)
Feature value3
Feature nameRated insulation voltage Ui (EF001366)
Feature value500 V
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value1.5 mm²
Feature nameRated current (EF000227)
Feature value2.5 A
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
Feature nameRelease characteristic (EF000889)
Feature valueMA
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
409877 EN_408966.pdf
1 Mbytes
