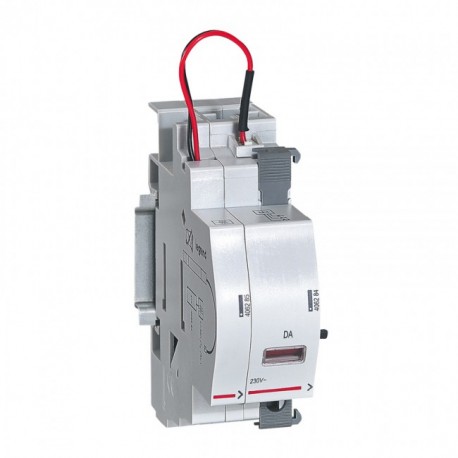

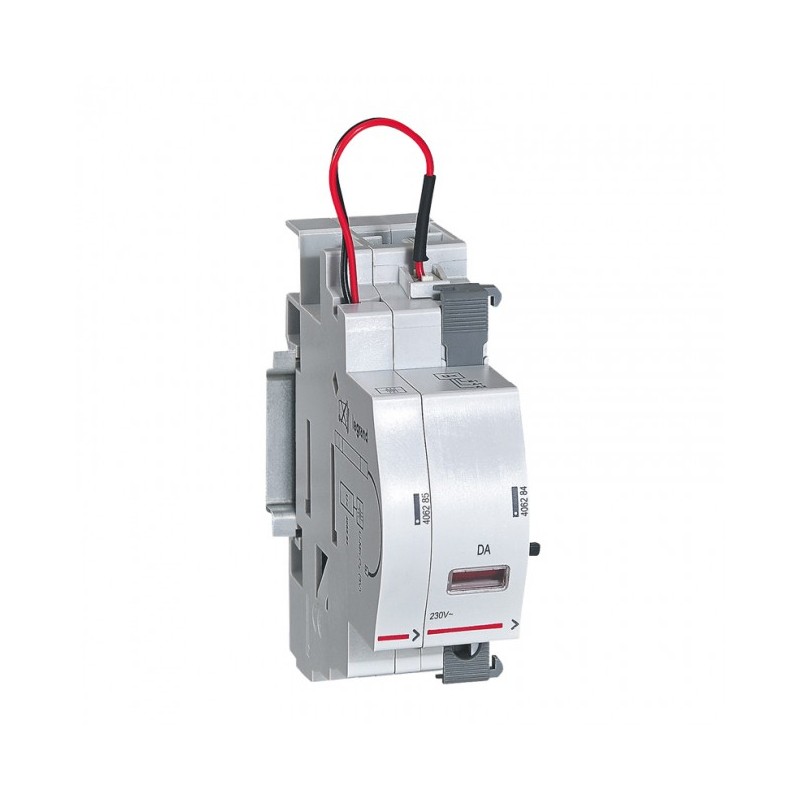

LEGRAND 406287 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

406287 LEGRAND DESCNEC. MIN VOLTAGE SELF-EMPLOYED

Code: 406287

Manufacturer: LEGRAND

Description:

DESCNEC. MIN VOLTAGE SELF-EMPLOYED
Stand alone release DX³ 230 V~ - supplied with battery for N/C push-button

Categories:

  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)103.00
Product characteristics
Remote tripping auxiliaries
  • To fit on the left-hand side of DX³ and TX³ devices
  • Maximum 1 remote tripping auxiliary per device
  • Allow insertion of the supply busbar
  • No tool required for joining together the auxiliary and the main device.
  • For MCBs, RCBOs, RCCBs and remote trip isolating switches
Autonomous shunt trip for N/C push-button
  • 230 VA
  • For remote tripping with positive security on a control circuit via a N/C push-button or emergency stop. Does not trigger its associated device in case of mains power failure (the trigger occurs only after a deliberate action of a N/C push-button).
  • Supplied with battery
  • Mimimum working reserve: 60 hours (for remote tripping even if there is no supply voltage)
  • For remote tripping with positive security on a control circuit via a N/C push-button or emergency stop.
  • Does not trigger its associated device in case of mains power failure (the trigger occurs only after a deliberate action of a N/C push-button).
  • Supplied with battery
  • Mimimum working reserve: 60 hours (for remote tripping even if there is no supply voltage)
  • Number of modules : 1.5
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³

DATASHEET - PDF

Title
Size
Type
406287 EN_406287.pdf
136 Kbytes
