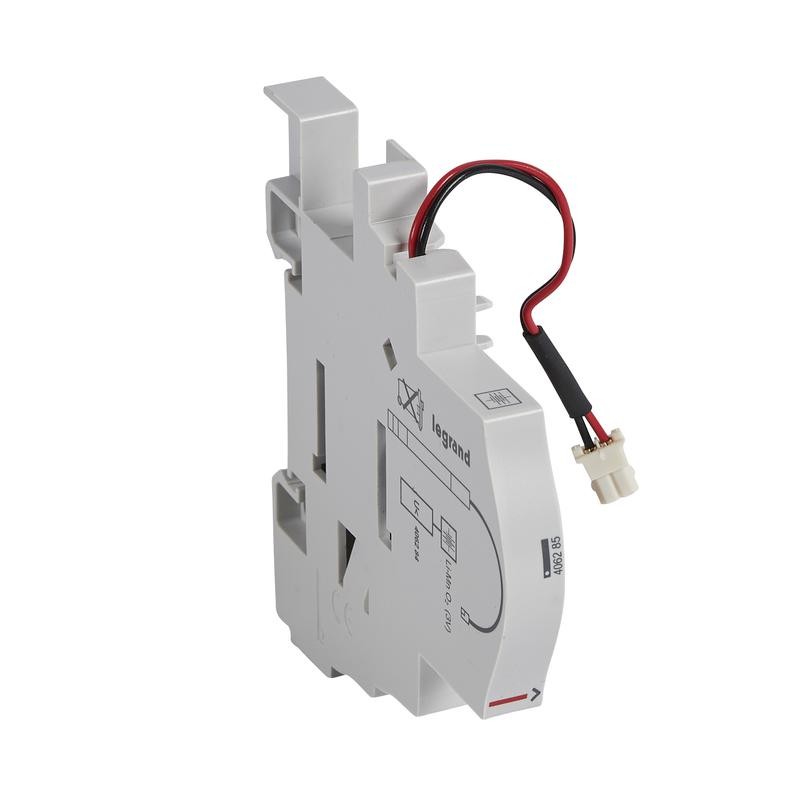

LEGRAND 406285 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

406285 LEGRAND BATTERY FOR 406284

Code: 406285

Manufacturer: LEGRAND

Description:

BATTERY FOR 406284
Replacement battery DX³ - for stand alone release Cat. No. 4 062 87
Recharge battery for standalone trigger ref. 4 062 87

Categories:

  • Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)36.00
Product characteristics
Remote tripping auxiliaries
  • To fit on the left-hand side of DX³ and TX³ devices
  • Maximum 1 remote tripping auxiliary per device
  • Allow insertion of the supply busbar
  • No tool required for joining together the auxiliary and the main device.
  • For MCBs, RCBOs, RCCBs and remote trip isolating switches
Autonomous shunt trip for N/C push-button
  • 230 VA
  • For remote tripping with positive security on a control circuit via a N/C push-button or emergency stop. Does not trigger its associated device in case of mains power failure (the trigger occurs only after a deliberate action of a N/C push-button).
  • Supplied with battery
  • Mimimum working reserve: 60 hours (for remote tripping even if there is no supply voltage)
  • Spare battery for autonomous shunt trip Cat.No 4 062 87
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³

ETIM for 406285 Modular devices for distribution board/surface mounting (EC001286)

Feature nameFunction (EF000030)
Feature valueOther
Feature nameNumber of fault-signal switches (EF007613)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameWidth in number of modular spacings (EF002950)
Feature value0.5
Feature nameSuitable for max. current main contact unit (EF008730)
Feature value125 A
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameWith auto test for earth leakage function (EF008727)
Feature valueNo
Feature nameRated voltage (EF000228)
Feature value3 V
Feature nameDevice fitting (EF007826)
Feature valueOther
Feature nameSuitable for max. number of poles main contact unit (total) (EF008729)
Feature value4
