LEGRANDTERTIARY CIRCUIT BREAKERS406260 LEGRAND CONTACT FAULT SIGNAL

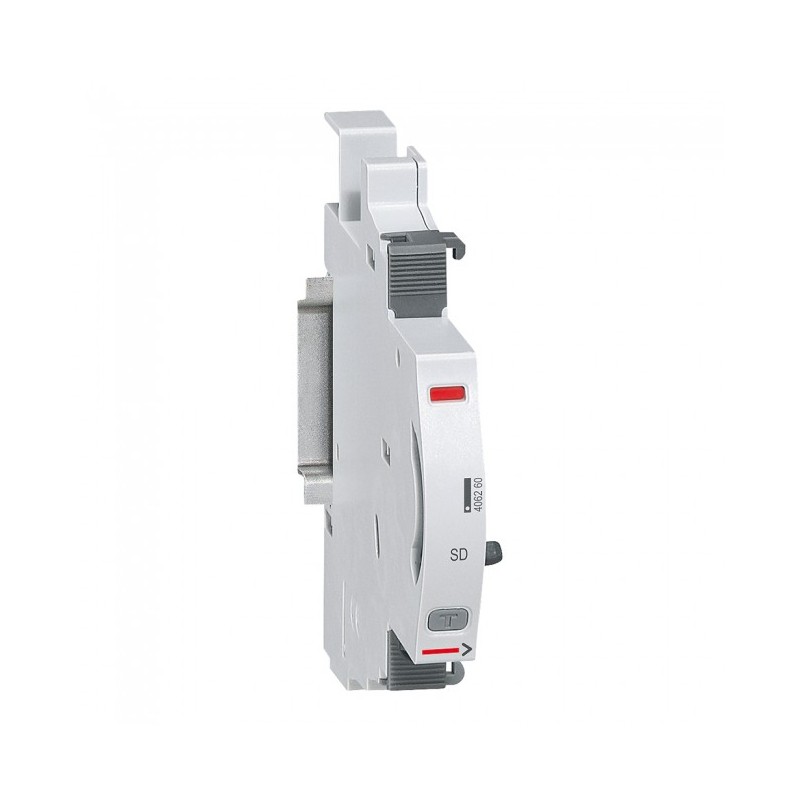

LEGRAND 406260 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

406260 LEGRAND CONTACT FAULT SIGNAL

Code: 406260

Manufacturer: LEGRAND

Description:

CONTACT FAULT SIGNAL
CONTACT SIGNAL DEFAULT
DX³ 6A Fault Signalling Changeover Switch
Contact inverter fault signal DX³ - 6A - 240V~

Categories:

  • Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 29,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Auxiliaries for RCBOs Clip on the left hand side of the RCBO (maximum 3) Allow insertion of the supply busbar at the top Auxiliaries common to DX3 MCBs, RCDs and RCBOs Fault signalling changeover switch, 6 A - 250 V± Indicates tripping of the RCBO at a fault
Device fittingUniversal
FunctionAuxiliary switch/fault-signal switch
Width in number of modular spacings0.5
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact1
Number of fault-signal switches0
Rated switch current6 A
Rated voltage240 V
Voltage typeAC/DC
With auto test for earth leakage functionNo
Suitable for max. number of poles main contact unit (total)4
Suitable for max. current main contact unit125 A
Width8.8 mm
Height84.5 mm
Depth77.7 mm

ETIM for 406260 Modular devices for distribution board/surface mounting (EC001286)

Feature nameFunction (EF000030)
Feature valueAuxiliary switch / fault-signal switch
Feature nameNumber of fault-signal switches (EF007613)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameWidth in number of modular spacings (EF002950)
Feature value0.5
Feature nameSuitable for max. current main contact unit (EF008730)
Feature value125 A
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameRated switch current (EF006706)
Feature value6 A
Feature nameWith auto test for earth leakage function (EF008727)
Feature valueNo
Feature nameRated voltage (EF000228)
Feature value240 V
Feature nameDevice fitting (EF007826)
Feature valueUniversal
Feature nameSuitable for max. number of poles main contact unit (total) (EF008729)
Feature value4

DATASHEET - PDF

Title
Size
Type
406260 EN_406258.pdf
781 Kbytes
