LEGRAND404952 LEGRAND 3P 1 METER COMB

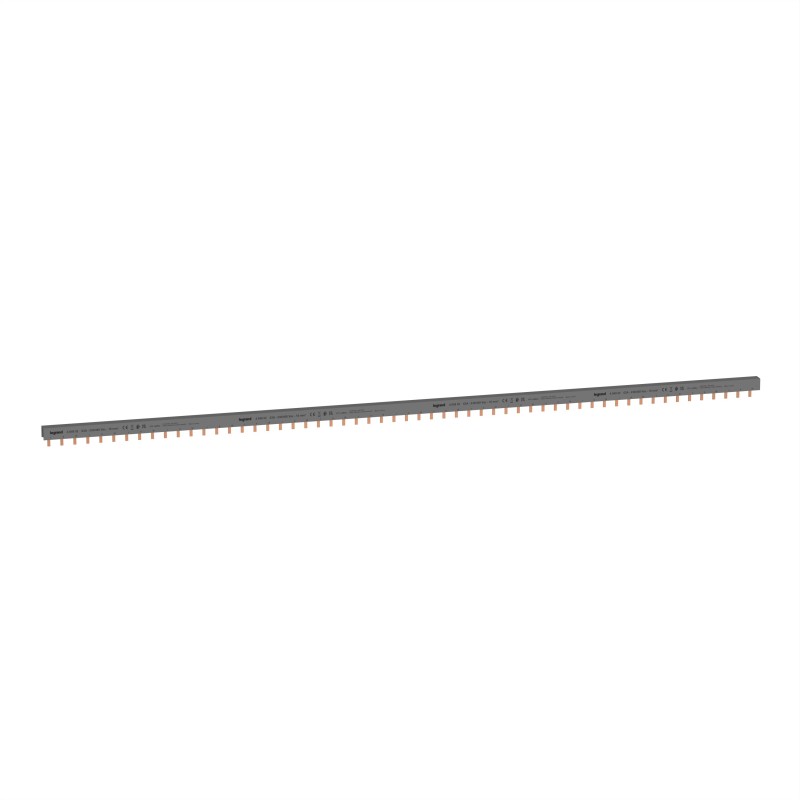

LEGRAND 404952 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

404952 LEGRAND 3P 1 METER COMB

Code: 404952

Manufacturer: LEGRAND

Description:

3P 1 METER COMB
Universal tripolar feeding comb - 1 meter

Categories:

  • Low-voltage industrial components > Phase busbar
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 2.396,16 €

Unit Price: 239,616 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Tripolar comb 57 module. Traditional HX³ combs for screw terminals - Allow the power supply of a row or a group of equipment Tripolar combs - Length: 56 modules (1m) - Maximum number of connectable devices: 19. Horizontal distribution HX³ up to 63A - distribution by traditional combs.
Depth1016 mm
Number of phases3
Number of poles3
Partition Measure17.8 mm
Section16 mm²
Can be cut to sizeYes
Width in number of modular spaces19
Permanent nominal current Iu80 A
IsolatedYes
Nominal voltage peaks2 kV
Conditional Short-Circuit Current Rating Iq0.63 kA
Maximum rated operating voltage Ue400 V
Icw short-duration rated current resistance1.2 kA
Suitable for devices with neutral conductorNo
Suitable for devices with auxiliary switchNo
ColourGrey
Height29.5 mm
Operating Temperature (Min-Max)-20-50 °C
Storage Temperature (Min-Max)-40-70 °C
Halogen-freeNo
Busbar type suppliedHorizontal

ETIM for 404952 Low-voltage industrial controls and switchgear (EC000215)

Feature nameSuitable for devices with auxiliary switch (EF007217)
Feature valueNo
Feature nameSuitable for devices with N-conductor (EF007218)
Feature valueNo
Feature nameModule width (EF007504)
Feature value17.8 mm
Feature nameNumber of phases (EF000351)
Feature value3
Feature nameWidth in number of modular spacings (EF002950)
Feature value19
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value0.63 kA
Feature nameMax. rated operation voltage Ue (EF007357)
Feature value400 V
Feature nameRated permanent current Iu (EF001389)
Feature value80 A
Feature nameRated surge voltage (EF002993)
Feature value2 kV
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1.2 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameColour (EF000007)
Feature valueGrey
Feature nameCan be cut to size (EF015250)
Feature valueYes
Feature nameInsulated (EF000019)
Feature valueYes
Feature nameCross section (EF000649)
Feature value16 mm²
