LEGRANDSPLITTERS404937 LEGRAND UNIPOLAR 57 MOD COMB
LEGRAND 404937 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

404937 LEGRAND UNIPOLAR 57 MOD COMB

Code: 404937

Manufacturer: LEGRAND

Description:

UNIPOLAR 57 MOD COMB
COMB UNIPOLAR 57 MOD

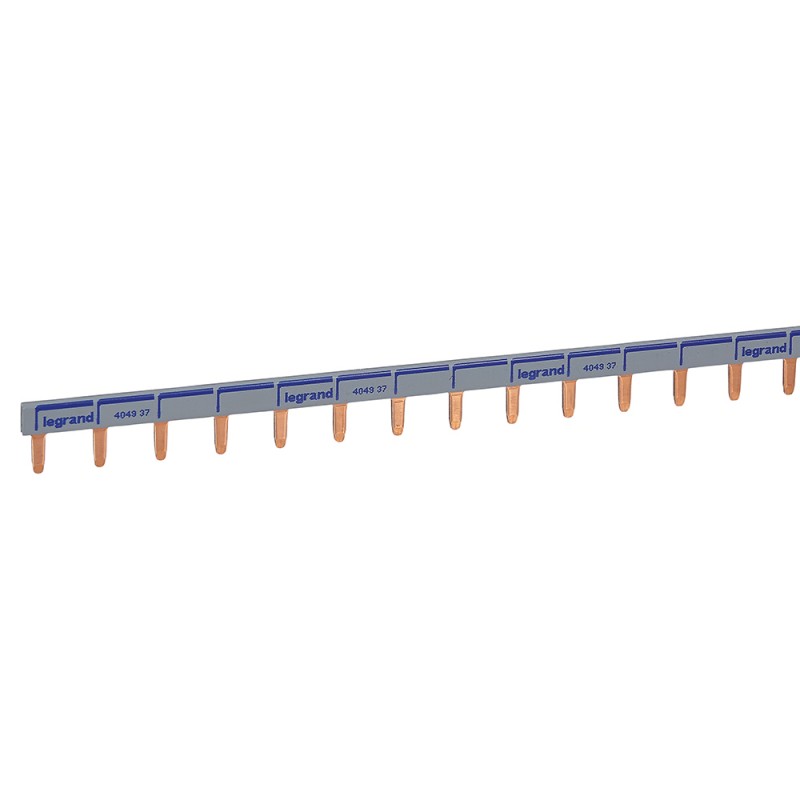

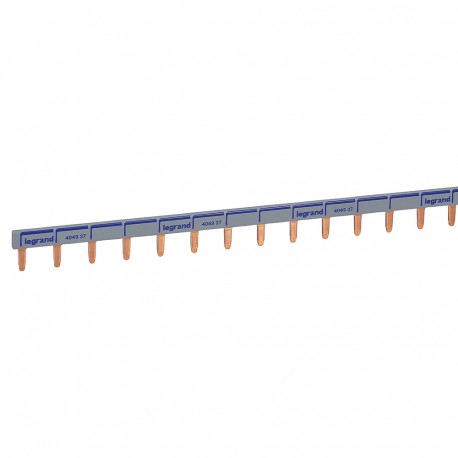

Legrand Insulated Busbar 57 Way 1 Pole Units
Universal unipolar feeding comb - L. 1m

Categories:

  • Low-voltage industrial components > Phase busbar
  • LEGRAND > SPLITTERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 495,28 €

Unit Price: 49,528 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Supply busbars For 57 single pole units1 Reversible blue/black
Depth4 mm
Number of phases1
Number of poles1
Suitable for number of devices57
Module width17.7 mm
Cross section16 mm²
Length1008 mm
Can be cut to sizeYes
Width in number of modular spacings57
Rated permanent current Iu63 A
Type of electric connectionPin
InsulatedYes
Rated surge voltage2 kV
Conditioned rated short-circuit current Iq0.63 kA
Max. rated operation voltage Ue400 V
Rated short-time withstand current lcw1.92 kA
Suitable for devices with N-conductorYes
Suitable for devices with auxiliary switchNo
ColourOther
Height21 mm
Operating / setting temperature-20-50 °C
Storage temperature-40-70 °C
Busbar type suppliedHorizontal

ETIM for 404937 Low-voltage industrial controls and switchgear (EC000215)

Feature nameSuitable for devices with auxiliary switch (EF007217)
Feature valueNo
Feature nameSuitable for devices with N-conductor (EF007218)
Feature valueYes
Feature nameModule width (EF007504)
Feature value17.7 mm
Feature nameNumber of phases (EF000351)
Feature value1
Feature nameWidth in number of modular spacings (EF002950)
Feature value57
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value0.63 kA
Feature nameMax. rated operation voltage Ue (EF007357)
Feature value400 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated surge voltage (EF002993)
Feature value2 kV
Feature nameType of electric connection (EF003961)
Feature valuePin
Feature nameSuitable for number of devices (EF007241)
Feature value57
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1.92 kA
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameColour (EF000007)
Feature valueOther
Feature nameCan be cut to size (EF015250)
Feature valueYes
Feature nameInsulated (EF000019)
Feature valueYes
Feature nameLength (EF001438)
Feature value1008 mm
Feature nameCross section (EF000649)
Feature value16 mm²

DATASHEET - PDF

Title
Size
Type
404937 EN_404937.pdf
1 Mbytes
