LEGRANDHOME CIRCUIT BREAKERS402060 LEGRAND DIFFERENTIATE. HOUSING AT 2/40/30MA

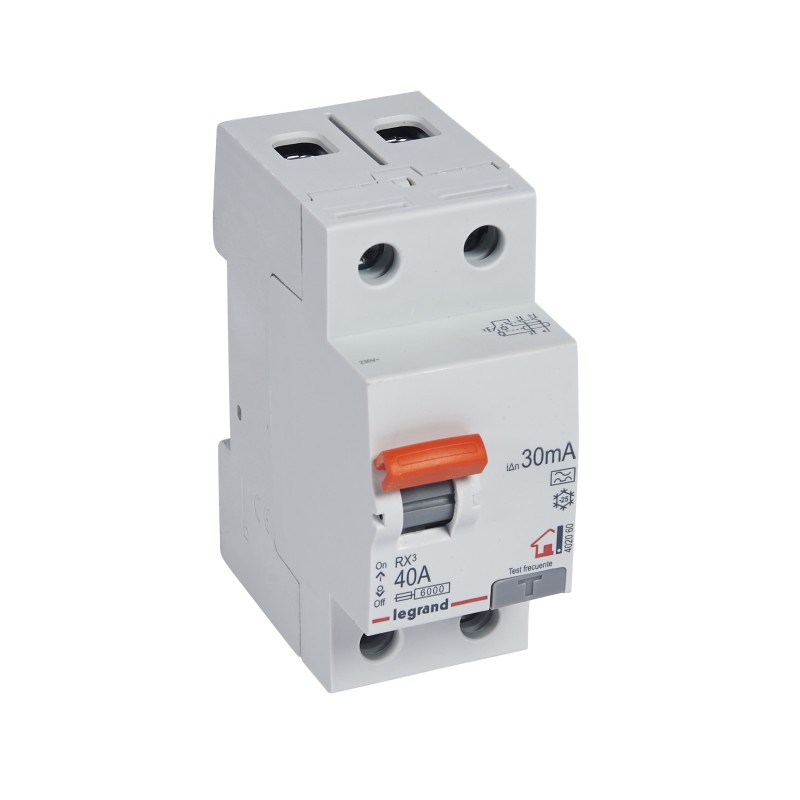

LEGRAND 402060 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

402060 LEGRAND DIFFERENTIATE. HOUSING AT 2/40/30MA

Code: 402060

Manufacturer: LEGRAND

Description:

DIFFERENTIATE. HOUSING AT 2/40/30MA
A DIFFERE. HOUSING 2/40/30MA
Differential RX3 - 2P - 230 V~ - 30 mA - 40 A - Type To
Differential RX³ - 2P - 230V~ - 30mA- 40A - TypeA

Categories:

  • Circuit breakers and fuses > Residual current circuit breaker (RCCB)
  • LEGRAND > HOME CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 263,26 €

Unit Price: 52,652 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Circuit breakers two-pole 230 V~ - 30mA - domestic Installations -captive Screws-head - mixed Neutral-to-left-Type A - Sensitivity: 30 mA - In: 40 - Number of modules: 2

General characteristics

Circuit breakers RX3 from 25 To 40 A - types AC and A - According to UNE en 61008-2-1 - Allow feeding by comb - Type AC: detection of failures of components AC - Type A: fault detection of AC components and DC - do Not accept auxiliary - Capacity embornamiento: 25mm2 flexible/35mm2 rigid

ETIM for 402060 Circuit breakers and fuses (EC000003)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.75 mm²
Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameSelective protection (EF002561)
Feature valueNo
Feature nameShort-circuit breaking capacity (Icw) (EF002562)
Feature value10 kA
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueA
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameAdditional equipment possible (EF008148)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameSurge current capacity (EF002564)
Feature value0.25 kA
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameShort-time delayed tripping (EF003604)
Feature valueNo
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4 kV
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameRated insulation voltage Ui (EF001366)
Feature value250 V
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.75 mm²
Feature nameRated current (EF000227)
Feature value40 A
Feature nameRated voltage (EF000228)
Feature value230 V

DATASHEET - PDF

Title
Size
Type
402060 EN_402056.pdf
818 Kbytes
