LEGRANDDIN MODULAR BOXES401863 LEGRAND OPACA DOOR 3X18 MOD.

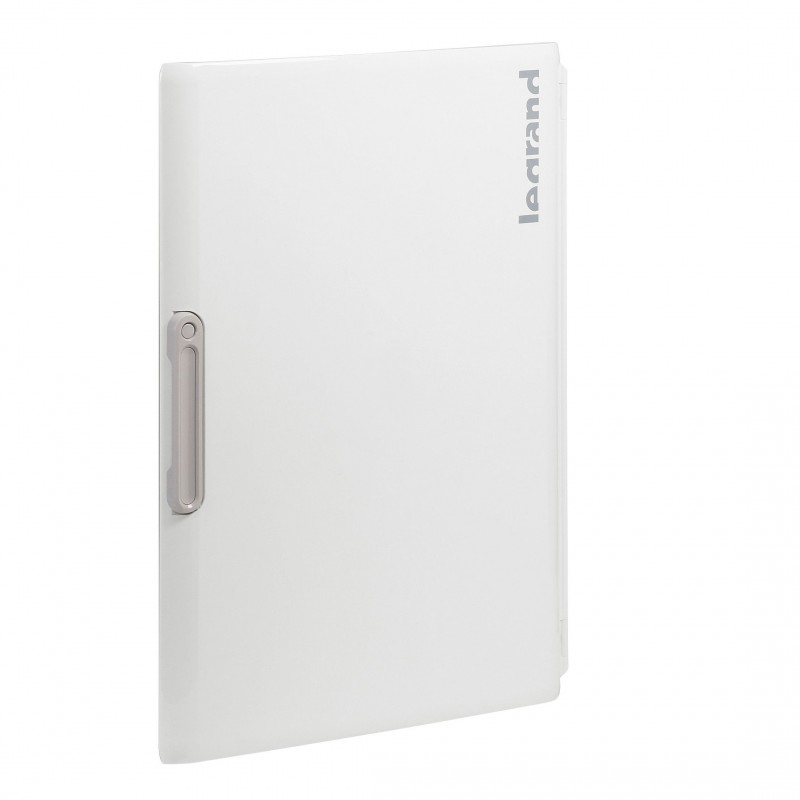

LEGRAND 401863 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

401863 LEGRAND OPACA DOOR 3X18 MOD.

Code: 401863

Manufacturer: LEGRAND

Description:

OPACA DOOR 3X18 MOD.
DOOR OPAQUE 3X18 MOD.
Door - for XL² 125 distribution cabinet Cat.No 4 016 78 - White RAL 9003
XL³ 125 white door for XL³ 125 3-row box ref. 4 016 68

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 27,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)10.308
  • Weight (g)1 574.00
Product characteristics
Doors - IP 40 - IK 09
  • For XL³ 125 distribution cabinets
  • Fully reversible
  • Can be equipped with lock and key n° 850 Cat.No 4 018 51
White RAL 9003
  • For distribution cabinet Cat.No 4 016 78
General characteristics
Surface mounting cabinets XL³ 125 - from 18 to 72 modules
  • IP 40 - IK 09 with door
  • IP 30 - IK 08 without door
  • Class II
  • Self-extinguishing: resistance to incandescent wire 650 °C
  • Conform to IEC 60670-24
  • Allows to achieve assemblies conform to IEC 61439-3

ETIM for 401863 Cabinets and enclosures (EC000747)

Feature nameHeight (EF000040)
Feature value597 mm
Feature nameModel (EF000010)
Feature valueCompartment door
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVersion as glazed door (EF006966)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueOther
Feature nameDepth (EF000049)
Feature value28 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valueNo
Feature nameWidth (EF000008)
Feature value438 mm
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
Feature nameEMC-version (EF001062)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
401863 EN_401863.pdf
130 Kbytes
