LEGRANDDIN MODULAR BOXES401850 LEGRAND MOSAIC MECHANISM SUPPORT

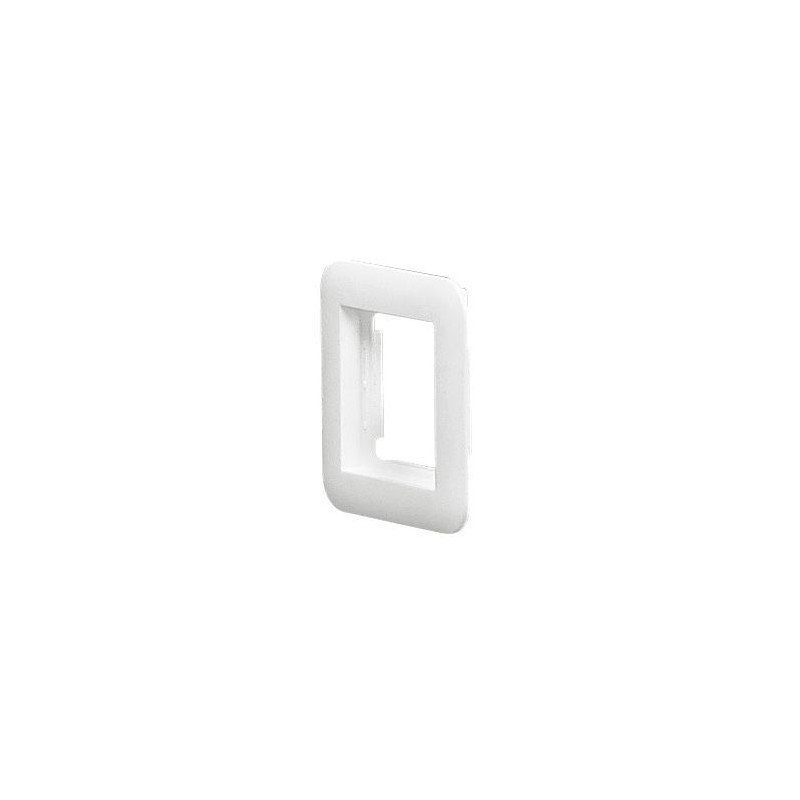

LEGRAND 401850 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

401850 LEGRAND MOSAIC MECHANISM SUPPORT

Code: 401850

Manufacturer: LEGRAND

Description:

MOSAIC MECHANISM SUPPORT
SUPPORT MECHANISM MOSAIC
Fixing accessory - for fixing 2 modules mechanisms on the side of XL³ 125 cabinet
Fixing accessory for Mosaic mechanisms in the XL³ 125 box

Categories:

  • Cabinet enclosures > Mounting accessories (switchgear cabinet)
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 16,45 €

Unit Price: 3,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)5
  • Volume (dm3)0.701
  • Weight (g)87.00
Product characteristics
Accessories
Fixing accessory for Mosaic wiring devices
  • For fixing 2-module mechanisms on the side of the cabinet
General characteristics
Surface mounting cabinets XL³ 125 - from 18 to 72 modules
  • IP 40 - IK 09 with door
  • IP 30 - IK 08 without door
  • Class II
  • Self-extinguishing: resistance to incandescent wire 650 °C
  • Conform to IEC 60670-24
  • Allows to achieve assemblies conform to IEC 61439-3

ETIM for 401850 Cabinets and enclosures (EC002625)

Feature nameHeight (EF000040)
Feature value70 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameAccessory (EF013236)
Feature valueYes
Feature nameSpare part (EF013237)
Feature valueNo
Feature nameDepth (EF000049)
Feature value13 mm
Feature nameType of accessory/spare part (EF000215)
Feature valueFastening parts/-set
Feature nameWidth (EF000008)
Feature value70 mm

DATASHEET - PDF

Title
Size
Type
401850 EN_401850.pdf
129 Kbytes
