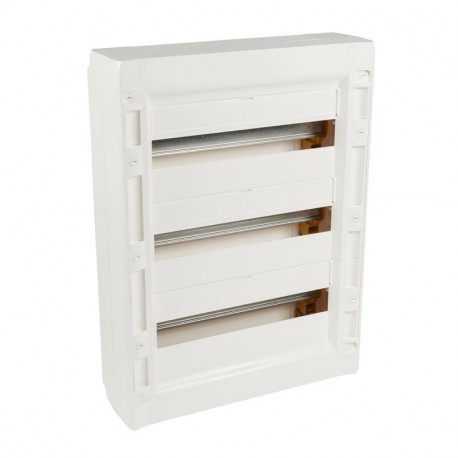

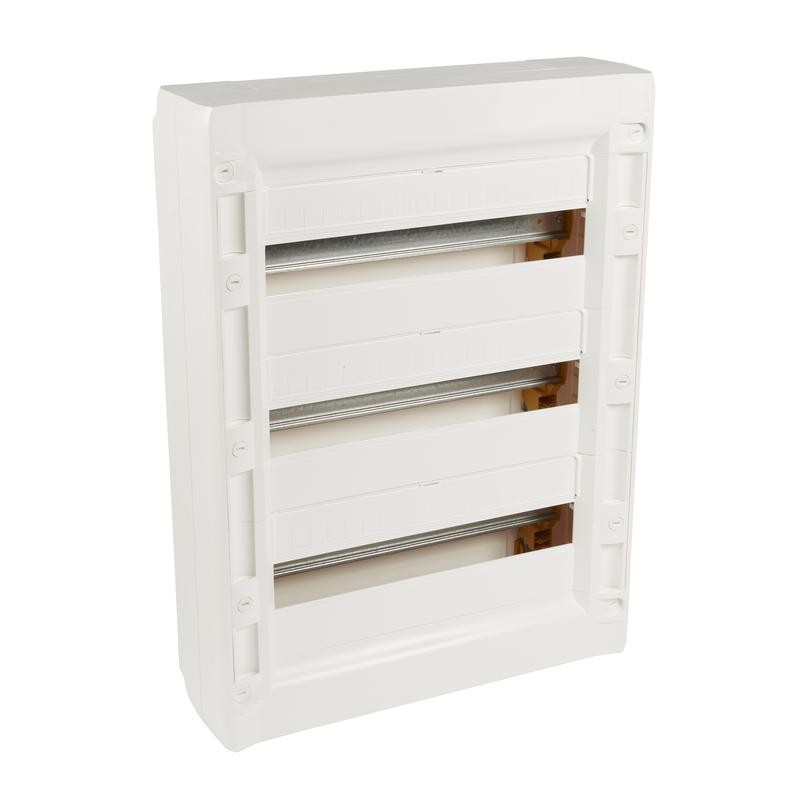

401668 LEGRAND SURFACE BOX 3X18 MOD.
401668
LEGRAND
2
SURFACE BOX 3X18 MOD.
Modular box surface XL3125 - 3 rows of 18 modules
XL³ 125 surface modular box - 3 rows of 18mod
Distribution boards > Small distribution board
DIN MODULAR BOXES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Modular boxes 18 modules - Capacity 18 modules per row White RAL 9003 - Boxes fully reversible (chassis, box, door) - Supplied with: - chassis-removable and pivoting equipped with profiles DIN 2-position (for mechanisms, modular or DPX3160). The profiles can be dismantled individually without tools. - cable entries (top and bottom) removable without tools - plate-closing, 1/4 turn, removable, individually - adhesive labels to identify circuits - terminals earth - Distance between profiles: 150 mm - Can be equipped with mounting plates and perforated plates cubrebornas blind for the mounting of products is not modular (from 2 rows) - Supplied without door Number of rows: 3 Number of modules: 54 Height: 600 mmGeneral characteristics
XL3125 - boxes, modular surface 18 to 70 - modules IP 40 - IK 09 with door IP 40 - IK 08 no door - Class II - Self-extinguishing: resistance to the incandescent thread 750ºC - Conform to IEC 60439-3 and IEC 60670-24| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Type of door (EF004464) | EV000426 |
| Inner depth (EF001131) | 128 mm |
| Transparent cover/door (EF006244) | No |
| Type of closure (EF004462) | Cylinder |
| Degree of protection (IP) (EF005474) | IP40 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 3 |
| Cover model (EF009212) | With notch |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 124 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| Width in number of modular spacings (EF002950) | 18 |
| Built-in height (EF000332) | 596 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | Yes |
| Depth (EF000049) | 128 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 450 mm |
| Built-in width (EF000846) | 446 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 401668 EN_401666.pdf | 611 Kbytes |
 |
