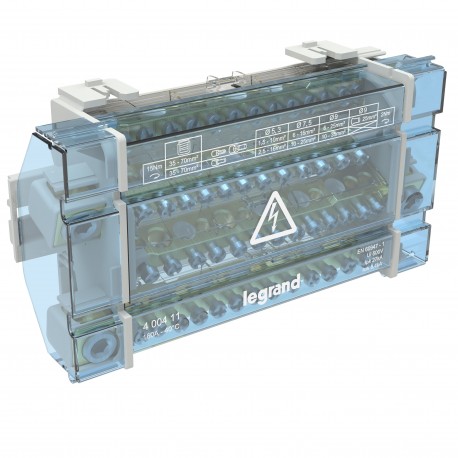

400411 LEGRAND Modular staggered bar distributor 4 Poles 160 A 14 outputs 10 modules
400411
LEGRAND
Modular staggered bar distributor 4 Poles 160 A 14 outputs 10 modules
SPLITTERS
* Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
More info
▲Product features
Staggered modular distributors - Din profile mounting - Possibility of adding IP2X terminals to increase the number of ground or neutral conductors - Include removable and rotating lid - Quick and easy to install - Transparent insulating protection between each bar and on the back of the distributor - Tetrapolar - Imax: 160 A - Rigid bar connections: 2x10 to 35mm² + 4x10 to 25mm² + 8x2, 5 to 10mm² - Flexible bar connections: 1x10 to 25mm² + 1x10 to 16mm² + 4x6 to 16mm² + 8x1.5 to 10mm² - Ipk: 27 kA - Icw: 8.4 kA - Number of modules: 10General features
Modular monoblock and associatable distributors - 40 to 250 A - "Standard" distribution - Connection with or without Starfix toe caps - Incandescent wire resistance according to EN 60695-2-11: 960 °C on the supports of the active partsDatasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LEGRAND EN.pdf | 38 Mbytes |
|
