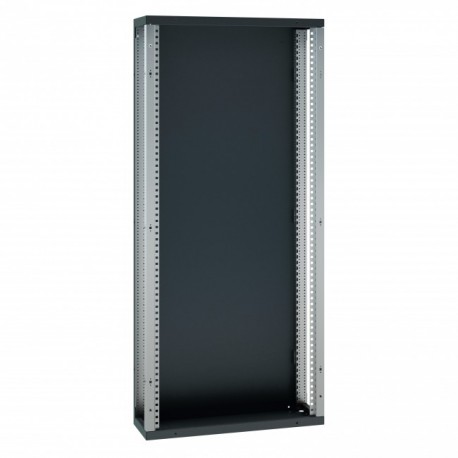

LEGRAND 337533 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

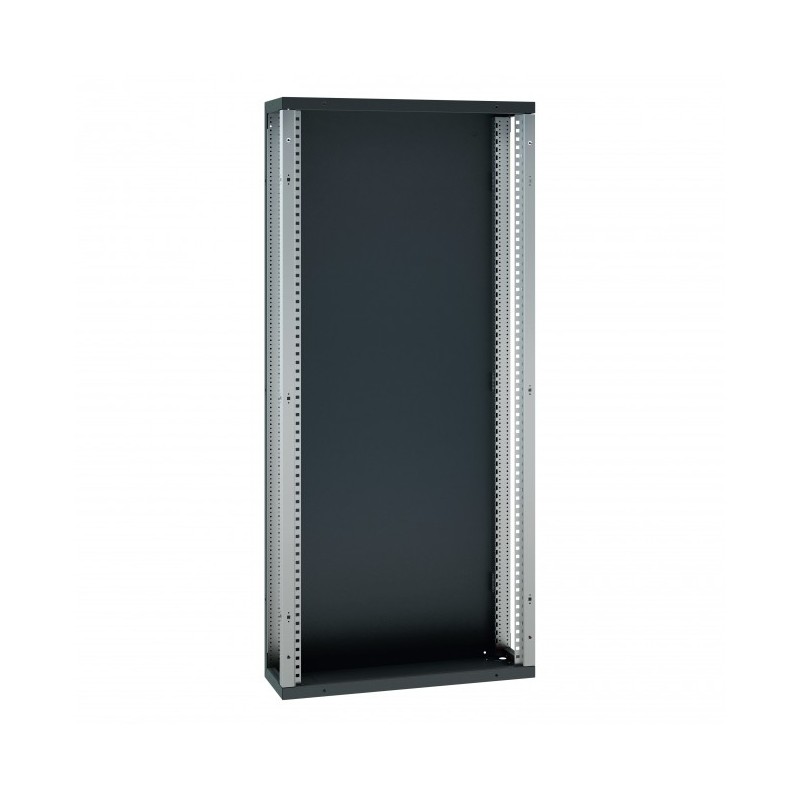

337533 LEGRAND XL3S 630 ARM 36M WIDTH 900H

Code: 337533

Manufacturer: LEGRAND

Description:

XL3S 630 ARM 36M WIDTH 900H
XL³ S 630 distribution enclosures with 36 modules wide - total 974x804x249 mm and usable 900x774x249 mm

Categories:

  • LEGRAND > ENERGY DISTRIBUTION CABINETS XL3 S 630-4000

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)218.918
  • Weight (g)26 300.00
Product characteristics
Enclosures
36 modules wide
  • Height total : 974 mm
  • Height faceplate : 900 mm
  • Width total : 804 mm
  • Width usable : 774 mm
  • Depth : 249 mm
General characteristics
XL³ S 630 - distribution enclosures
  • Enclosures equipped with functional uprights and supplied with fixing supports for faceplates (fixing accessories for faceplates to be ordered separately)
  • Doors and side panels to be ordered separately
  • Take protection devices up to 630 A
  • Used to create assemblies certified IEC 61439-2
  • IP 40 with door
  • IP 30 without door
  • Removable, separable top and bottom panels
  • Can take Lina 25 ducting and IP 55 Cabstop cable gland plates
