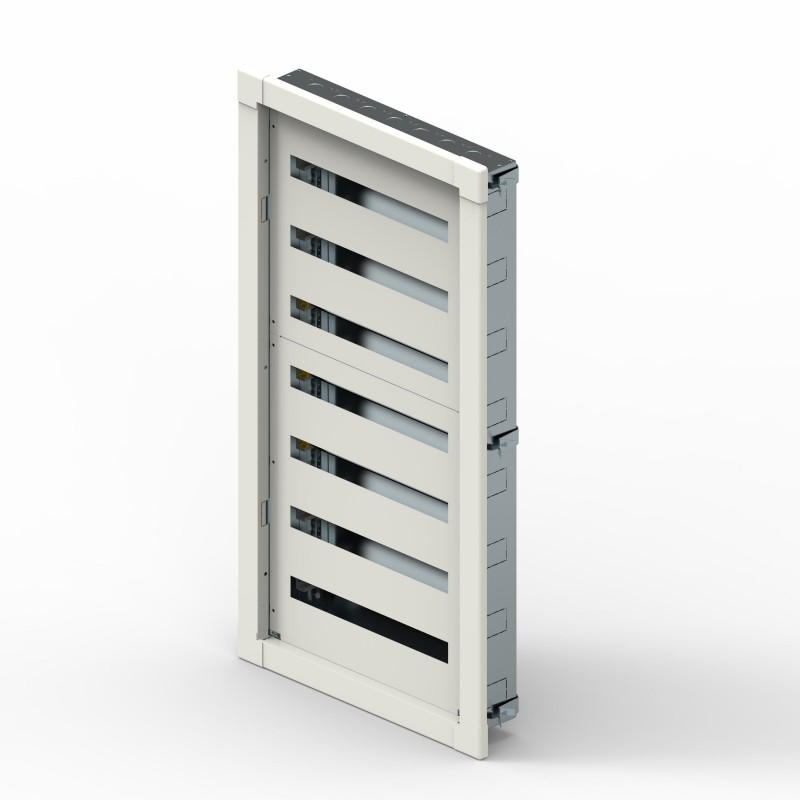

337237 LEGRAND XL3S 160 RECESSED METAL 7X36M
337237
LEGRAND
XL3S 160 RECESSED METAL 7X36M
XL³ S 160 flush-mounting 36-modules per row cabinet with fixing lugs - RAL 9003 - 7 rows - 252 modules - 1262x883x138 mm
Recessed distribution box XL³ S 160 - modular - 7 rows - 36mod
Distribution boards > Small distribution board
XL3 S 160 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)173.571
- Weight (g)32 129.00
- Supplied with fixing lugs
- Faceplates: RAL 9003
- Number of rows : 7
- Number of modules : 252
- Height : 1262 mm
- Width : 883 mm
- Depth : 138 mm
- Cabinets supplied with rails fitted (150 mm fixing centres) and full height faceplates
- Doors and terminal blocks to be ordered separately
- Take DPX³ 160 and modular protection devices
- Used to create assemblies certified IEC 61439-2 and -3
- IP 40 with door
- IP 30 without door
- Cut-outs in top and bottom for feeding cables through
- Can take Lina 25 ducting
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1190 mm |
| Inner depth (EF001131) | 103 mm |
| Transparent cover/door (EF006244) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Steel |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 6 |
| Cover model (EF009212) | With notch |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 103 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | Yes |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 135 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 811 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 337237 EN_337237.pdf | 2 Mbytes |
 |
