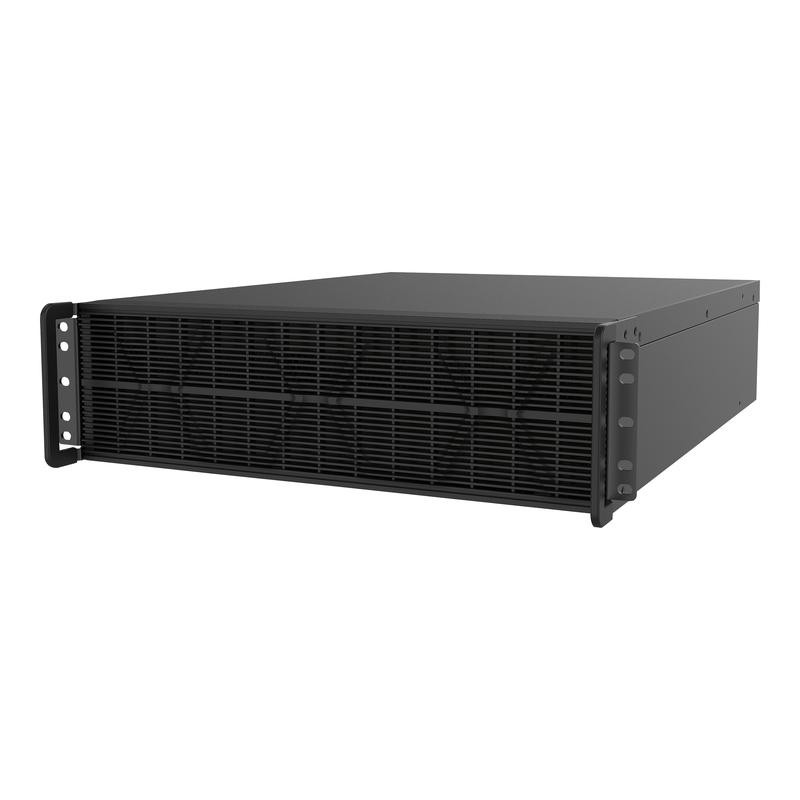

311371 LEGRAND BUILD BAT K DK R 10-20K EMPTY

The empty battery cabinet for Keor DK Rack 10-15-20kVA is specifically designed for critical applications that require a flexible and safe energy storage solution in uninterruptible power supplies (UPS). This cabinet allows the integration of VRLA or lithium batteries, adapting to the needs of electrical continuity in industrial environments, data centers and professional applications where reliability is essential.- Allows to accommodate batteries for Keor DK UPS systems of 10, 15 and 20kVA, facilitating the customization of autonomy according to user requirements.- Compatible with both VRLA and lithium batteries, providing versatility and adaptation to different energy storage technologies.- Dimensions optimized for integration into standard 19inch rack cabinets: height of 130mm, width of 438mm and depth of 535mm, facilitating its installation in existing infrastructures.- Weight of 13.3kg, allowing easy handling during installation and maintenance.- IP20 protection degree, suitable for protected indoor environments, ensuring the safety of internal components against the entry of solid objects larger than 12.5mm.- Operating temperature range from 0 to 40°C, ensuring stable performance in common environmental conditions in technical rooms and data centers.- Storage temperature range from -20 to 50°C, which facilitates transport and storage prior to installation without risk of deterioration.- Noise level of 0dB, as the cabinet itself does not incorporate fans or active elements, contributing to a quiet work environment.- Fixed input connection, which guarantees a safe and robust installation, minimizing risks of accidental disconnection.- Includes indication of marks on the connection terminals, facilitating the correct installation and connection of the batteries by the technical staff.- It does not contain batteries or accumulators in its supply configuration, allowing the user to select the most appropriate technology and battery capacity for their application.- It does not have USB, RS232 or SNMP communication interfaces, as its main function is the safe housing and connection of the battery modules.- It does not incorporate C13 or C19 type output sockets, having a single fixed output for direct connection to the UPS system.- It is not modular nor does it have potential-free switching contacts, focusing on maximum simplicity and structural reliability.- It does not include automatic disconnection function, which reduces complexity and possible points of failure.- It does not have its own electrical outlet, since its function is exclusively that of a battery cabinet.- Product class: UPS, guaranteeing compatibility and homologation with Legrand's Keor DK uninterruptible power supply systems.Competitive advantages and distinctive features:- Specific solution for Keor DK Rack systems of 10, 15 and 20kVA, ensuring perfect integration and optimal performance in critical applications.- Allows custom autonomy configuration through the selection and assembly of batteries according to the needs of the end user.- Compatibility with lithium and VRLA batteries, which allows you to take advantage of the advantages of each technology: higher energy density and useful life in the case of lithium, or optimized cost and availability in the case of VRLA.- Robust and compact design, ideal for rack installations where space and organization are key factors.- Simple and safe installation thanks to the fixed and clear connection identification of the connection terminals.- Absence of active or electronic elements, which reduces maintenance and eliminates additional noise or heat sources in the technical room.- Compliance with safety and protection standards IP20, suitable for professional and technical environments. Recommended applications:- Data centers that require a scalable and secure solution for the uninterrupted power supply of servers and critical equipment.- Industrial facilities where the continuity of the power supply is essential for the protection of sensitive processes and machinery.- Professional environments that demand flexible management of the autonomy of UPS systems, allowing them to adapt to future expansions or changes in the connected load.- Integration in telecommunications infrastructures, laboratories and technical rooms where reliability and ease of maintenance are priorities. The empty battery cabinet for Keor DK Rack 10-15-20kVA from Legrand is the ideal choice for those looking for a professional, safe and adaptable solution for energy management in uninterruptible power supply systems. Its specific design for rack integration, compatibility with different battery technologies and ease of installation make it a key piece to guarantee electrical continuity in critical applications.

Output Voltage (Min-Max)	240-240 V
USB interface	No
With RD 232 communication interface	No
SNMP	No
Type of voltage	CC
Height	130 mm
Width	438 mm
Depth	535 mm
Weight	13.3 kg
Network management capability	No
Modulate	No
Potential-free switching contact	No
Automatic switch-off function	No

Input socket	Fixed connection
Number of C13 outlet outlets	0
Number of C19 outlet sockets	0
Number of fixed-type output sockets	1
Protection Class (IP)	IP20
Operating Temperature (Min-Max)	0-40 °C
Storage Temperature (Min-Max)	-20-50 °C
Sound Level	0 dB
Display of markings on the connection terminals	Yes
Load Type	Not applicable
With electrical outlet	No
Contains battery and/or accumulator	No
