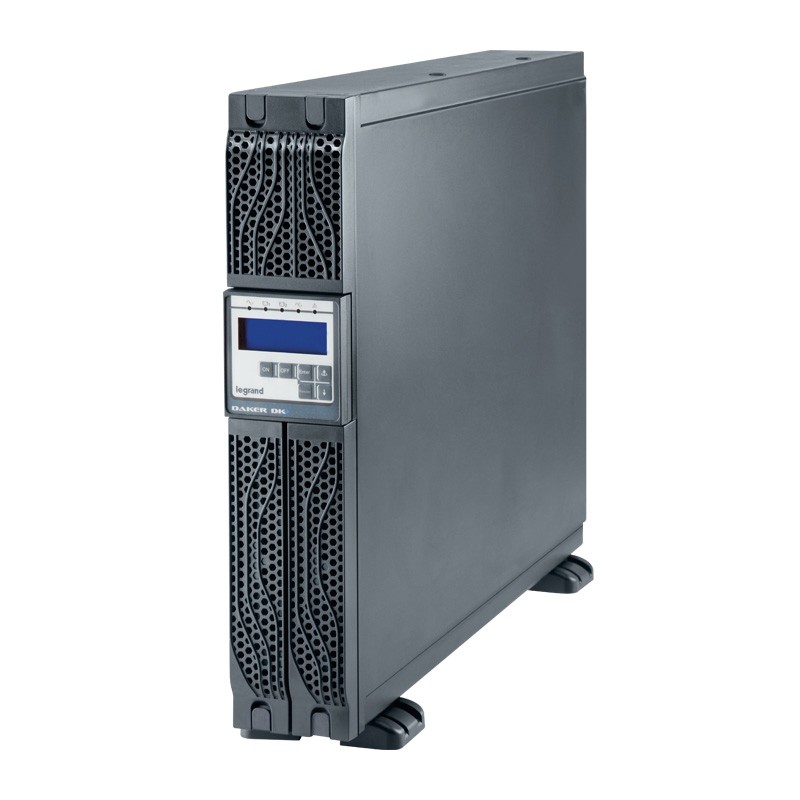

310175 LEGRAND UPS DK PLUS 5KVA NOT BAT
310175
LEGRAND
UPS DK PLUS 5KVA NOT BAT
Daker DK Plus convertible UPS without battery - Single phase VFI - 5000 VA - 5000 W
Daker DK Plus rack or tower UPS without batteries
Data and telecommunication > UPS
SINGLE PHASE UPS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)154.309
- Weight (g)19 450.00
Single phase
- Nominal power: : 5000 VA
- Active power: : 5000 W
- Phase configuration: : none
- Weight: : 25 kg
- The main parameters of the UPS, including the battery charge level and faults, are displayed on the LCD screen on the front panel
- The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely, communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur
- The internal extension connector enables aWEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels
- If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 440 mm |
| Output effective power (EF009897) | 5000 W |
| Voltage type (EF000187) | AC |
| Weight (EF000167) | 25 kg |
| Output apparent power (EF009898) | 5000 VA |
| Auto shut down function (EF009276) | No |
| Number of output connections fixed connection (EF009730) | 1 |
| Secondary frequency (EF009273) | 50 Hz |
| Primary frequency (EF009272) | 47.5 Hz |
| Number of phases primary (EF009275) | 1 |
| Number of phases secondary (EF009274) | 1 |
| Potential free switch contact (EF003626) | No |
| Overall efficiency (EF009406) | 94 % |
| Output power factor (EF009405) | 1 |
| Efficiency in eco-mode (EF009407) | 97 % |
| Input connection (EF009726) | Fixed connection |
| Max. voltage distortion output (linear load) (EF009404) | 3 % |
| Suitable for network-management (EF000432) | Yes |
| Input voltage (EF003840) | 176 V |
| USV- technology (EF005380) | Online |
| SNMP (EF005284) | Yes |
| Depth (EF000049) | 680 mm |
| Output voltage (EF003933) | 228 V |
| Construction type (EF000767) | 482.6 mm (19 inch) device |
| Width (EF000008) | 88 mm |
| Bridging time full load (EF000428) | 0 min |
