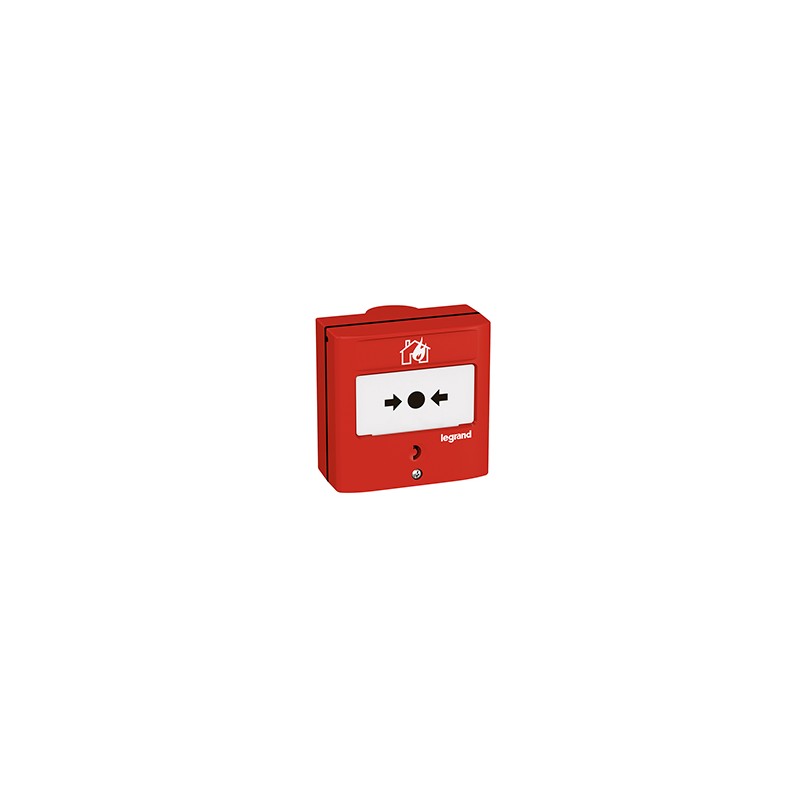

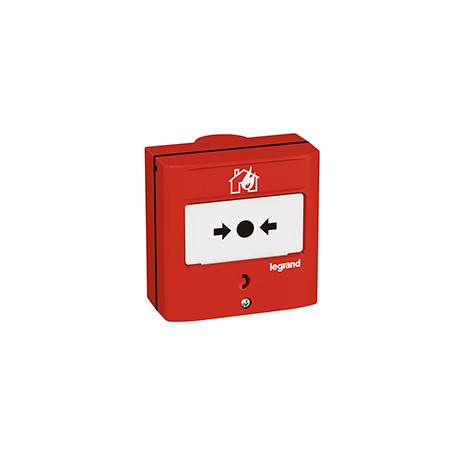

138069 LEGRAND PUSH-BUTTON ALARM CONVENTIONAL
138069
LEGRAND
5
PUSH-BUTTON ALARM CONVENTIONAL
Manual call point for fire detection/alarm system -conventional -1 NO/NC -5 A -24 V= -RAL 3000
Flush-mounting meter cabinet, W=1035mm, H=1560mm, 8 meter plates
Alarm installations, emergency call and signalling > Non-automatic detector for danger detection system
SIRENS AND ALARMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.716
- Weight (g)140.00
- IP 30 - IK 07
- Surface-mounting or flush-mounting (IP 30)
- Dimensions: 90x90x57 mm (surface-mounting with its base) or 90x90x24 mm (flush-mounting with flush boxes for wiring devices - drilling diameter 67 mm - for 60 mm fixing centres)
- Can be fitted on trunking Cat. Nos 0 104 63/64, 35x105 mm or 50x105 mm, with the universal support Cat. No 0 109 13
- Call by pressing the membrane (pressure 2.5 kg) with clear display of the call position
- Reset on front of device, with special key Cat. No 0 380 38 (supplied with the product)
- Possibility to add an optional mechanical status indicator Cat. No 1 380 93 to provide additional signalling
- Can receive a sealable cover Cat.No 0 380 97
- Conform to EN 54-11 standard
- CE-CPR approved
- Type A – simple action
- Color of the mechanical enclosure: red RAL 3000
- MCP - conventional - 1 contact
- Equipped with 1 NO/NC contact – 5 A – 24 VDC
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 90 mm |
| With paper cover (EF007966) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Material (EF002169) | Plastic |
| With glass disc (EF007950) | No |
| Type of messaging (EF005006) | Fire brigade alarm (red) |
| Depth (EF000049) | 57 mm |
| Colour (EF000007) | Red |
| Width (EF000008) | 90 mm |
| VdS accepted (EFDE0033) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 138069 EN_138069.pdf | 138 Kbytes |
 |
