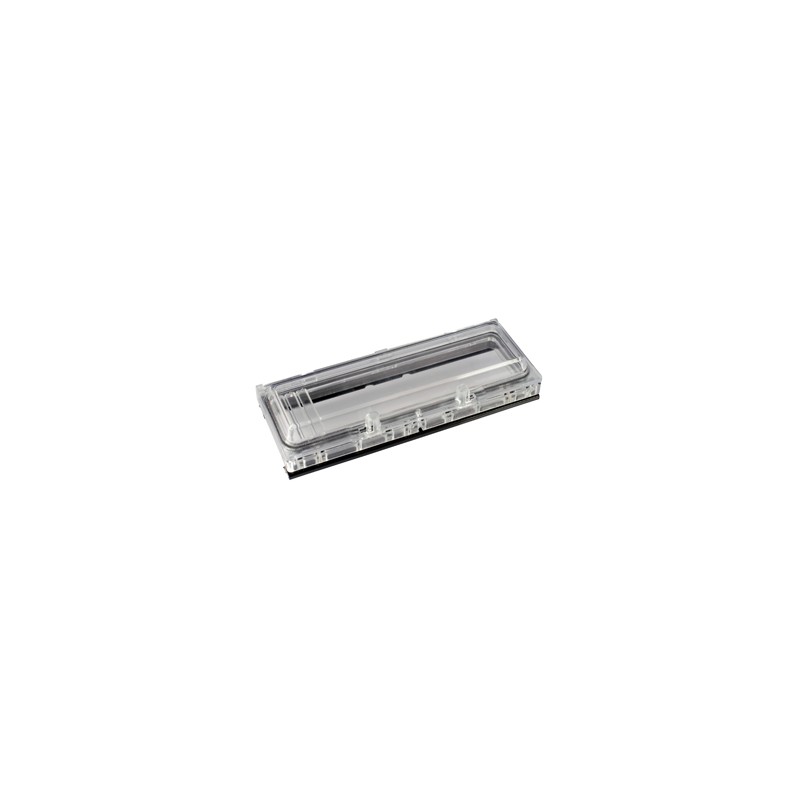

LEGRAND 10MA - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

10MA LEGRAND MIRILLA 10 MOD. HIGH TOP S/M

Code: 10MA

Manufacturer: LEGRAND

Description:

MIRILLA 10 MOD. HIGH TOP S/M

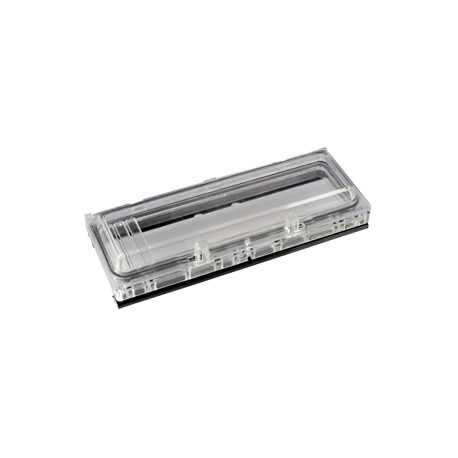

SIGHT GLASS 10 MOD. COVER HIGH S/M
DX³-ID 2 Pole 16A A Type RCD 10mA
Maneuvering sight glass - High lid without spring - 10mod

Categories:

  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 99,26 €

Unit Price: 19,852 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Conform to IEC 61008-1 * AC type : detect AC component faults * A type : detect AC and DC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles2
Rated voltage230 V
Rated current16 A
Rated fault current0.01 A
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionNo
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Built-in depth44 mm
Ambient temperature during operating-25-60 °C
Pollution degree2
Connectable conductor cross section multi-wired0.75-35 mm²
Connectable conductor cross section solid-core0.75-50 mm²
ColourGrey
RAL-number (similar)7035
Explosion-proofNo
Width35.6 mm
Height94.8 mm
Depth77.8 mm
degree of impact strength (IK)IK04
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
Terminal marking indicationNo
Stress test conformity (1000V)Yes
Halogen freeYes
Connection typeScrewed terminal , Busbar and cable
Label space/information surfaceYes
