098026 LEGRAND GLAND IP68 PG 29
098026
LEGRAND
2
GLAND IP68 PG 29

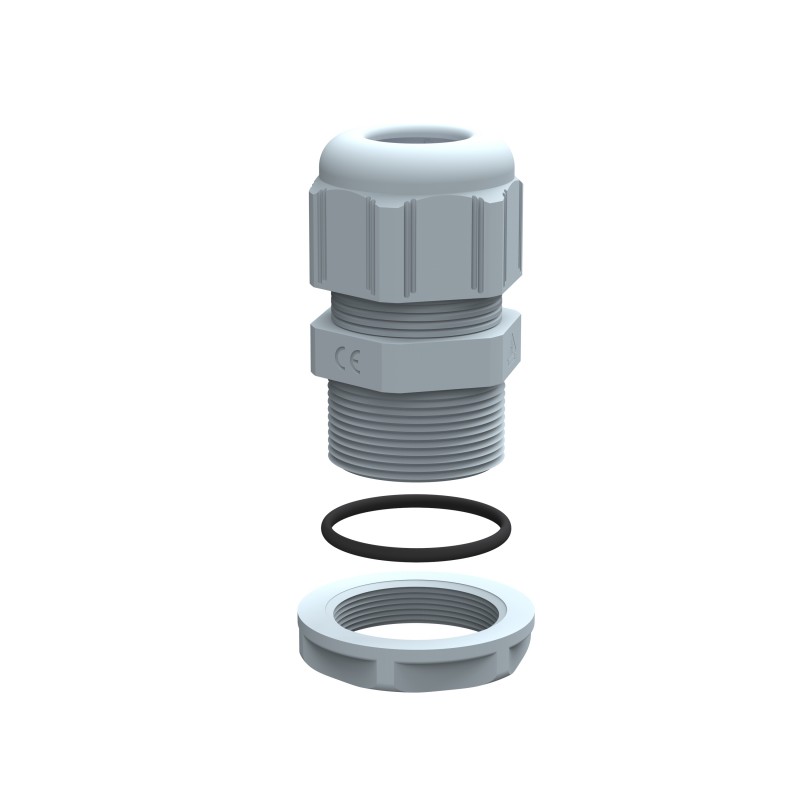

Cable gland plastic - IP68 - PG 29 - clamping capacity 18-25 mm - RAL 7001
Plastic cable gland - IP68 - PG 29 - RAL 7001
Cable and wire entry systems > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)1.409
- Weight (g)266.00
- Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
- Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
- Supplied with surface seal and locking nut mounted
- Conform to UTE C 68-300 and 68-311 guides recommendations
- PG : 29
- Clamping capacity Ø Min. : 18 mm
- Clamping capacity Ø Max. : 25 mm
| Feature Name | Feature Value |
|---|---|
| Flat cable coupling (EF004685) | No |
| For Ex-zone dust (EF008404) | None |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Material (EF002169) | Plastic |
| Separable screw gland (EF005337) | No |
| Glass-fibre reinforced (EF001210) | No |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Operating temperature (EF001742) | -20 °C |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7001 |
| Bend radius protection/trumpet flare (EF000734) | No |
| For Ex-zone gas (EF005728) | None |
| Suitable for cable diameter (EF005466) | 5 mm |
| Model (EF000010) | Straight |
| Wrench width (EF000177) | 22 mm |
| With locknut (EF005049) | Yes |
| Explosion-tested version (EF004191) | No |
| Thread length (EF000368) | 22 mm |
| Type of sealing (EF001217) | EV009696 |
| Colour (EF000007) | Grey |
| Pitch thread (EF003712) | 1.41 mm |
| Thread type (EF001758) | PG |
| Nominal thread size metric/PG (EF007839) | 37 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 098026 EN_098026.pdf | 1 Mbytes |
 |
