LEGRANDACCESSORIES CONTROL AND CONTROL PANELS098003 LEGRAND IP68 ISO 20 CABLE GLAND

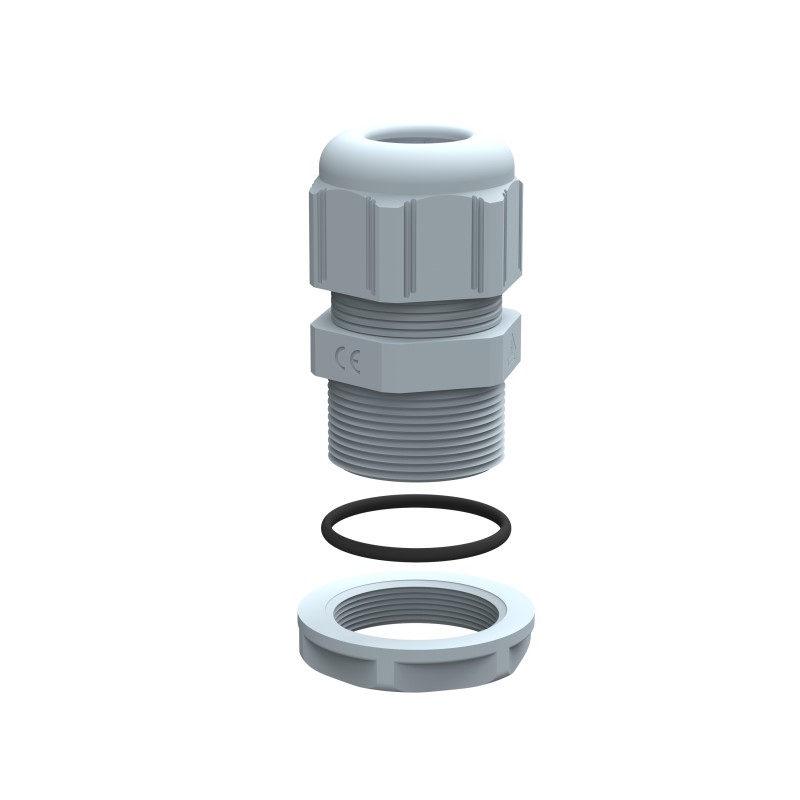

LEGRAND 098003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

098003 LEGRAND IP68 ISO 20 CABLE GLAND

Code: 098003

Manufacturer: LEGRAND

Description:

IP68 ISO 20 CABLE GLAND
GASKET IP68 ISO 20
Legrand IP68 ISO M20 Cable Gland
Plastic cable glands - IP68 - ISO 20 - RAL 7001

Categories:

  • Cable and wire entry systems > Cable gland
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 55,38 €

Unit Price: 2,2154 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ISO M20 cable gland Cable gland IP68
Thread typeMetric
Nominal thread size metric/PG20
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length24 mm
Wrench width26 mm
Hexagon angular dimension26.5 mm
Suitable for cable diameter8-12 mm
MaterialPlastic
Material qualityPolyamide (PA)
Surface protectionUntreated
Halogen freeYes
Glass-fibre reinforcedNo
Degree of protection (IP)IP68
Shock resistantYes
ColourGrey
RAL-number7001
Bend radius protection/trumpet flareNo
With locknutYes
Snapping in openingYes
ModelStraight
Multi seal areaNo
Flat cable couplingNo
With strain reliefNo
Type of sealingSealing ring
Separable screw glandNo
Operating / setting temperature-20-80 °C
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-zone dustNone
For armoured cableNo
EMC-versionNo
ScreenedNo
Width28 mm
Height28 mm
Storage temperature-20-80 °C

ETIM for 098003 Cable glands and cable entry products (EC000441)

Feature nameFlat cable coupling (EF004685)
Feature valueNo
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameShock resistant (EF000084)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP68
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameScreened (EF000881)
Feature valueNo
Feature nameSeparable screw gland (EF005337)
Feature valueNo
Feature nameGlass-fibre reinforced (EF001210)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valuePolyamide (PA)
Feature nameSnapping in opening (EF012547)
Feature valueYes
Feature nameOperating temperature (EF001742)
Feature value-20 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value7001
Feature nameWith strain relief (EF000878)
Feature valueNo
Feature nameBend radius protection/trumpet flare (EF000734)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameMulti seal area (EF005004)
Feature valueNo
Feature nameHexagon angular dimension (EF005268)
Feature value26.5 mm
Feature nameSuitable for cable diameter (EF005466)
Feature value8 mm
Feature nameModel (EF000010)
Feature valueStraight
Feature nameWrench width (EF000177)
Feature value26 mm
Feature nameWith locknut (EF005049)
Feature valueYes
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameFor armoured cable (EF012184)
Feature valueNo
Feature nameThread length (EF000368)
Feature value24 mm
Feature nameType of sealing (EF001217)
Feature valueEV009696
Feature nameColour (EF000007)
Feature valueGrey
Feature namePitch thread (EF003712)
Feature value1.5 mm
Feature nameThread type (EF001758)
Feature valueMetric
Feature nameNominal thread size inch/gas pipe thread (EF007838)
Feature valueOther
Feature nameNominal thread size metric/PG (EF007839)
Feature value20

DATASHEET - PDF

Title
Size
Type
098003 EN_098003.pdf
1 Mbytes
