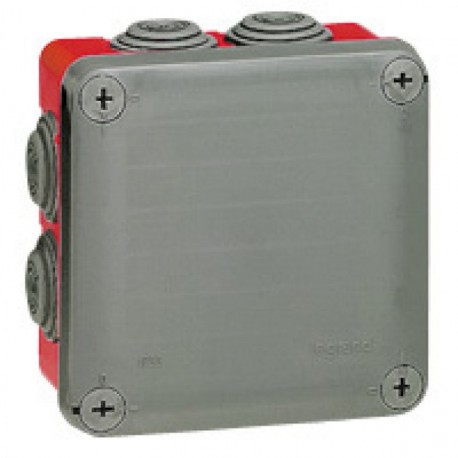

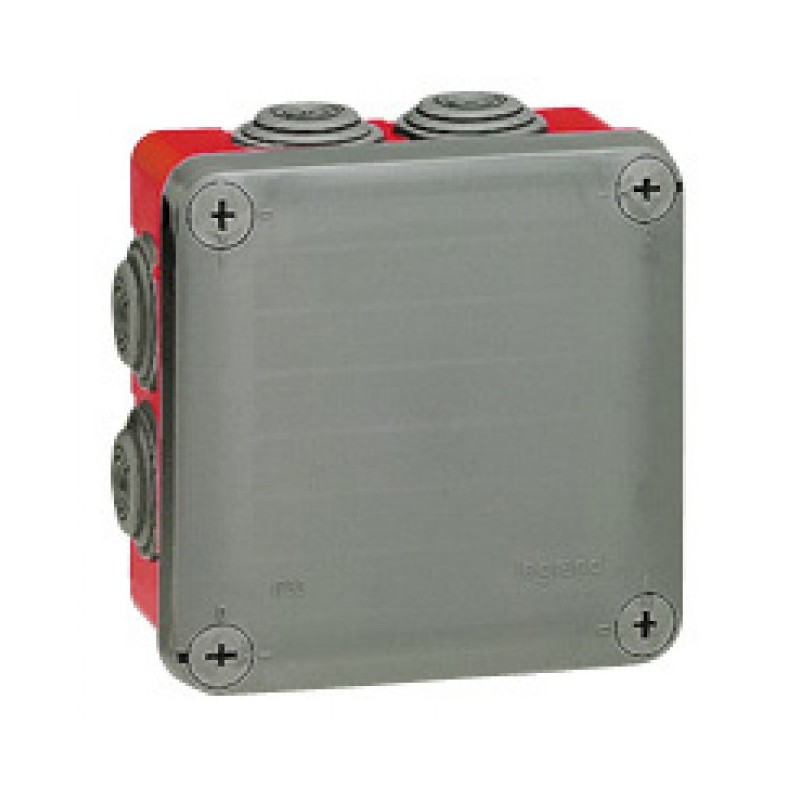

LEGRAND 092025 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

092025 LEGRAND BOITE DERIVATION 100X100 PLEXUS

Code: 092025

Manufacturer: LEGRAND

Description:

BOITE DERIVATION 100X100 PLEXUS
Square Plexo box with 7 direct entry membrane glands - IP55 IK07 - 105x105x55 mm - grey/red RAL 7035/3000

Categories:

  • LEGRAND > JUNCTION BOXES PLEXUS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)17.00
  • Weight (g)1 874.00
Product characteristics
Square boxes
  • Grey/red RAL 7037/3000
105 x 105 x 55 mm
  • Cover closed with a 1/4 turn
  • Fixed using 2 internal points (screws with max.Ø 5 mm) or 3 points outside the wiring space (screws with max. Ø 4 mm)
  • 7 membrane glands (Cat.No 0 919 01)
  • Accepted cable and tube Ø : 4 to 25 mm
General characteristics
Plexo™ boxes IP 55 - IK 07 - with direct entry membrane glands - 960 °C
  • Resistance to incandescent wire: 960°C
  • Junction boxes for safety circuit installations in buildings open to the public and work premises
  • Operating temperature: -25 to +40°C
  • Interchangeable membrane glands with direct entry for IRL tubes up to Ø16 and R02V cables. Marked cut-out for IRL tubes Ø greater than 16
  • Captive cover with clippable tie between box and cover
  • Space for marking on both sides of the cover of 80 x 80 and 105 x 105 boxes
  • Fixing with vertical level adjustment
  • Class II is ensured by protective caps (supplied) for the fixing screws
