LEGRANDJUNCTION BOXES PLEXUS092022 LEGRAND CJ. PLEXUS 105X105X55 7 CONES

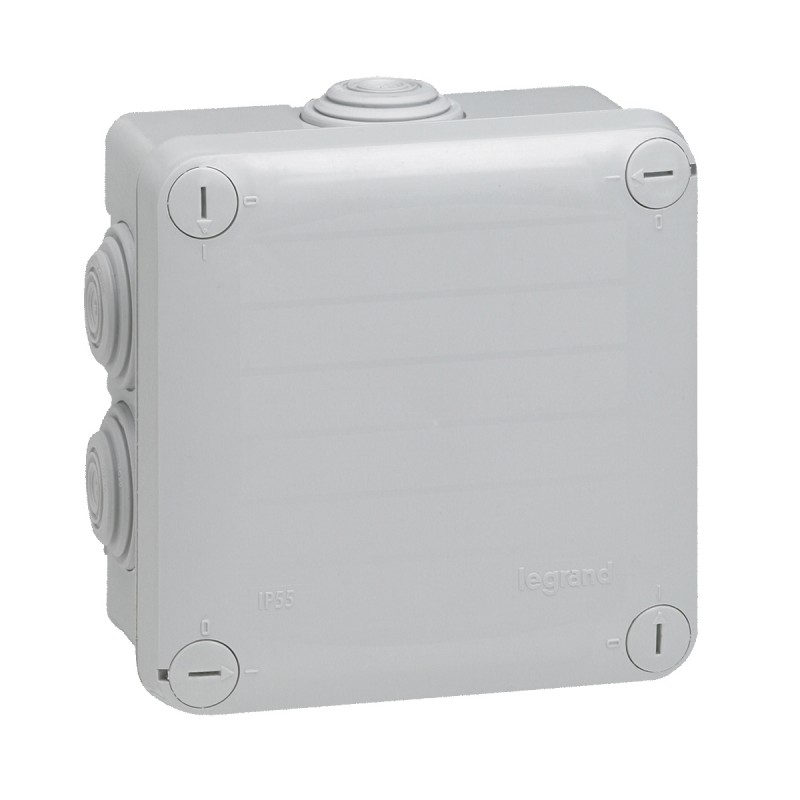

LEGRAND 092022 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

092022 LEGRAND CJ. PLEXUS 105X105X55 7 CONES

Code: 092022

Manufacturer: LEGRAND

Description:

CJ. PLEXUS 105X105X55 - 7 CONES
CJ.PLEXUS 105X105X55 - 7 CONES
Plexo IP55 Weatherproof Box 7 Glands and Plain Cover 105mm x 105mm x 55mm
Junction box for connections, Plexo IP55, square 105x105x55mm. 7 cones

Categories:

  • Connection devices > Box/housing for surface mounting on the wall/ceiling
  • LEGRAND > JUNCTION BOXES PLEXUS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 22,29 €

Unit Price: 4,459 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

P 55 - IK 07 Grey RAL 7035 Conform to EN 60695-2-1 Polystyrene box and polypropylene cover - halogen free Temperature rating : -25 °C to +40 °C Self-extinguishing 650 °C Membrane glands Plain cover Mounting by either internal fixing points - use 5 mm Ø screws or at three corners outside the wiring area Use 4 mm Ø screws Provision for anti-tamper seal Cover with 4 x 1/4 turn fixings, indicated I-O, can be retained open during installation Nominal internal dimensions: 105 x 105 x 55 mm
Equipped withNone
Max. conductor cross section25 mm²
ShapeSquare
Mounting methodUniversal
Mounting in the soilNo
Mounting under waterNo
For tube diameter25 mm
Number of inlets7
Inlet from the rearNo
Length121 mm
Width121 mm
Depth60 mm
ConnectableNo
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Halogen freeYes
Surface protectionUntreated
ColourGrey
Degree of protection (IP)IP55
Cover modelOther
Transparent coverNo
CastableNo
Cover attachmentBayonet latch
Casting compound includedNo
SealableYes
Circuit integrityNone
With screeningNo
WeatherproofYes
Operating / setting temperature-25-40 °C
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-zone dustNone
degree of impact strength (IK)IK07
Storage temperature-25-70 °C
RAL-number7035
Antimicrobial treatmentNo
Label space/information surfaceNo
Entry membrane gland typeFlexible to cut
Vertical fixing center distance44-50 mm
Horizontal fixing center distance44-50 mm

ETIM for 092022 Junction and back boxes (EC002600)

Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameCover attachment (EF004586)
Feature valueBayonet latch
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameNumber of inlets (EF003593)
Feature value7
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameFor tube diameter (EF005496)
Feature value25 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWeatherproof (EF005436)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueUniversal
Feature nameSealable (EF001454)
Feature valueYes
Feature nameCasting compound included (EF009477)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueOther
Feature nameCastable (EF009476)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameMounting in the soil (EF012570)
Feature valueNo
Feature nameMounting under water (EF012571)
Feature valueNo
Feature nameOperating temperature (EF001742)
Feature value-25 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameShape (EF000051)
Feature valueSquare
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameDepth (EF000049)
Feature value60 mm
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameLength (EF001438)
Feature value121 mm
Feature nameWidth (EF000008)
Feature value121 mm
Feature nameMax. conductor cross section (EF004969)
Feature value25 mm²

DATASHEET - PDF

Title
Size
Type
092022 EN_092022.pdf
1 Mbytes
