LEGRANDJUNCTION BOXES PLEXUS092011 LEGRAND CJ. PLEXUS 80X80X45-NO INPUT

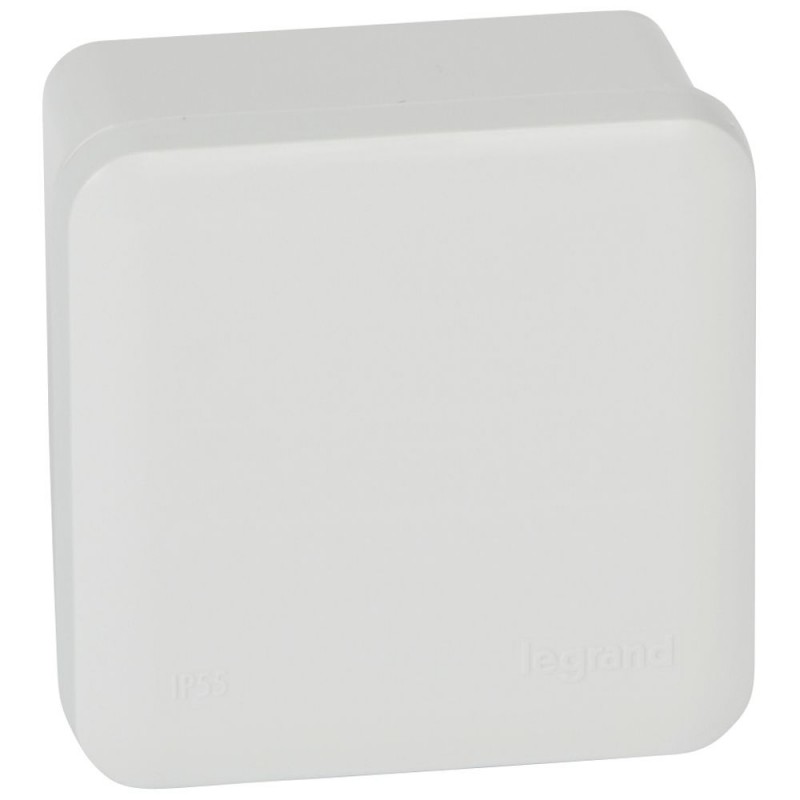

LEGRAND 092011 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

092011 LEGRAND CJ. PLEXUS 80X80X45-NO INPUT

Code: 092011

Manufacturer: LEGRAND

Description:

CJ. PLEXUS 80X80X45-NO INPUT
CJ.PLEXUS 80X80X45-NO ENTRY
Plexo IP55 Weatherproof Box with Plain Clip-On Cover 80mm x 80mm x 45mm
Junction box for connections, Plexo IP55, square 80x80x45mm with cover

Categories:

  • Connection devices > Box/housing for surface mounting on the wall/ceiling
  • LEGRAND > JUNCTION BOXES PLEXUS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 12,94 €

Unit Price: 2,588 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

IP 55 - IK 07 Grey RAL 7035 Conform to EN 60695-2-1 Temperature rating : -25 °C to + 40 °C Undrilled with smooth sides Self-extinguishing 650 °C Polystyrene box and polypropylene cover - halogen free With fixing slots for easy alignment - use 5 mm Ø screws Clip-on plain cover
Equipped withNone
Max. conductor cross section0 mm²
ShapeSquare
Mounting methodUniversal
Mounting in the soilNo
Mounting under waterNo
For tube diameterOther
Number of inlets0
Inlet from the rearNo
Length90 mm
Width90 mm
Depth52 mm
ConnectableNo
Type of housing feed-throughNone
MaterialPlastic
Halogen freeYes
Surface protectionUntreated
ColourGrey
Degree of protection (IP)IP55
Cover modelOther
Transparent coverNo
CastableNo
Cover attachmentSnapped on
Casting compound includedNo
SealableNo
Circuit integrityNone
With screeningNo
WeatherproofYes
Operating / setting temperature-25-40 °C
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-zone dustNone
degree of impact strength (IK)IK07
Storage temperature-25-70 °C
RAL-number7035
Antimicrobial treatmentNo
Label space/information surfaceNo
Entry membrane gland typeOther
Vertical fixing center distance47-53 mm
Horizontal fixing center distance47-53 mm

ETIM for 092011 Junction and back boxes (EC002600)

Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameCover attachment (EF004586)
Feature valueSnap on
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameNumber of inlets (EF003593)
Feature value0
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameFor tube diameter (EF005496)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWeatherproof (EF005436)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueUniversal
Feature nameSealable (EF001454)
Feature valueNo
Feature nameCasting compound included (EF009477)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueOther
Feature nameCastable (EF009476)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameMounting in the soil (EF012570)
Feature valueNo
Feature nameMounting under water (EF012571)
Feature valueNo
Feature nameOperating temperature (EF001742)
Feature value-25 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameShape (EF000051)
Feature valueSquare
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameType of housing feed-through (EF007661)
Feature valueNone
Feature nameDepth (EF000049)
Feature value52 mm
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameLength (EF001438)
Feature value90 mm
Feature nameWidth (EF000008)
Feature value90 mm
Feature nameMax. conductor cross section (EF004969)
Feature value0 mm²
