LEGRANDJUNCTION BOXES PLEXUS092002 LEGRAND CJ. ROUND PLEXUS 70MM

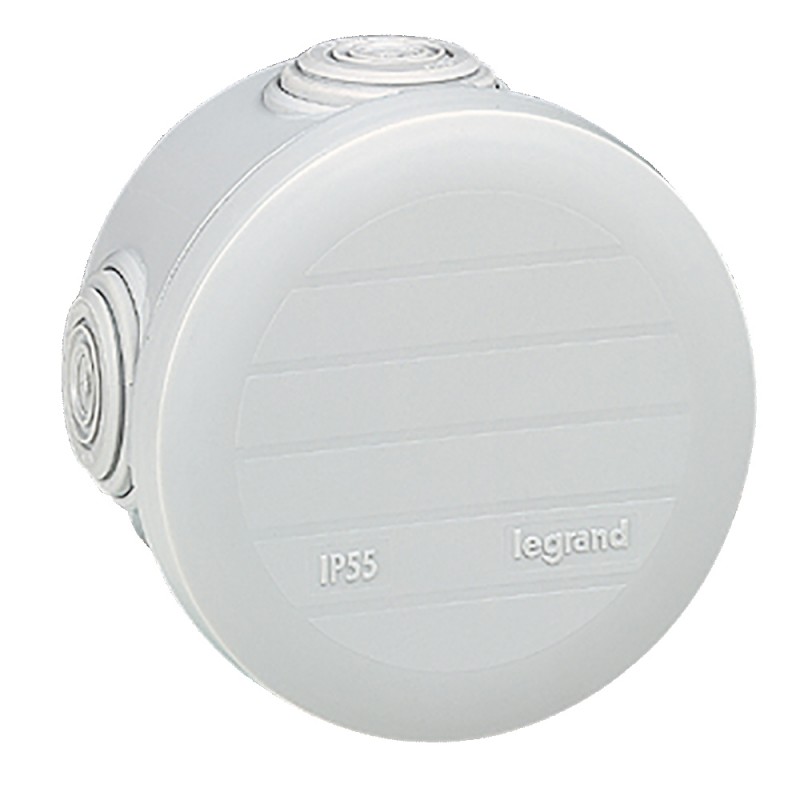

LEGRAND 092002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

092002 LEGRAND CJ. ROUND PLEXUS 70MM

Code: 092002

Manufacturer: LEGRAND

Description:

CJ. ROUND PLEXUS 70MM
CJ.PLEXUS ROUND 70MM
Plexo IP55 Weatherproof Box 4 Glands with Plain Clip-On Cover 70mm Diameter x 45mm
Junction box for connections, Plexo IP55, round Ø70mm, height 45mm

Categories:

  • Connection devices > Box/housing for surface mounting on the wall/ceiling
  • LEGRAND > JUNCTION BOXES PLEXUS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 12,12 €

Unit Price: 2,424 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

P 55 - IK 07 Grey RAL 7035 Conform to EN 60695-2-1 Polystyrene box and polypropylene cover - halogen free Temperature rating : -25 °C to +40 °C Self-extinguishing 650 °C Membrane glands Plain cover With fixing slots for easy alignment Use 5 mm Ø screws Clip-on cover Nominal internal dimensions: Ø 70 mm x 45 mm
Equipped withNone
Max. conductor cross section20 mm²
ShapeRound
Mounting methodUniversal
Mounting in the soilNo
Mounting under waterNo
For tube diameter20 mm
Number of inlets4
Inlet from the rearNo
Depth51 mm
Diameter80 mm
ConnectableNo
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Halogen freeYes
Surface protectionUntreated
ColourGrey
Degree of protection (IP)IP55
Cover modelOther
Transparent coverNo
CastableNo
Cover attachmentSnapped on
Casting compound includedNo
SealableNo
Circuit integrityNone
With screeningNo
WeatherproofYes
Operating / setting temperature-25-40 °C
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-zone dustNone
degree of impact strength (IK)IK07
Storage temperature-25-70 °C
RAL-number7035
Antimicrobial treatmentNo
Label space/information surfaceNo
Entry membrane gland typeFlexible to cut
Vertical fixing center distance50-50 mm
Horizontal fixing center distance50-50 mm

ETIM for 092002 Junction and back boxes (EC002600)

Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameCover attachment (EF004586)
Feature valueSnap on
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameNumber of inlets (EF003593)
Feature value4
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameFor tube diameter (EF005496)
Feature value20 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWeatherproof (EF005436)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueUniversal
Feature nameSealable (EF001454)
Feature valueNo
Feature nameCasting compound included (EF009477)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueOther
Feature nameCastable (EF009476)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameMounting in the soil (EF012570)
Feature valueNo
Feature nameMounting under water (EF012571)
Feature valueNo
Feature nameOperating temperature (EF001742)
Feature value-25 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameShape (EF000051)
Feature valueRound
Feature nameDiameter (EF000551)
Feature value80 mm
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameDepth (EF000049)
Feature value51 mm
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMax. conductor cross section (EF004969)
Feature value20 mm²

DATASHEET - PDF

Title
Size
Type
092002 EN_092002.pdf
1 Mbytes
