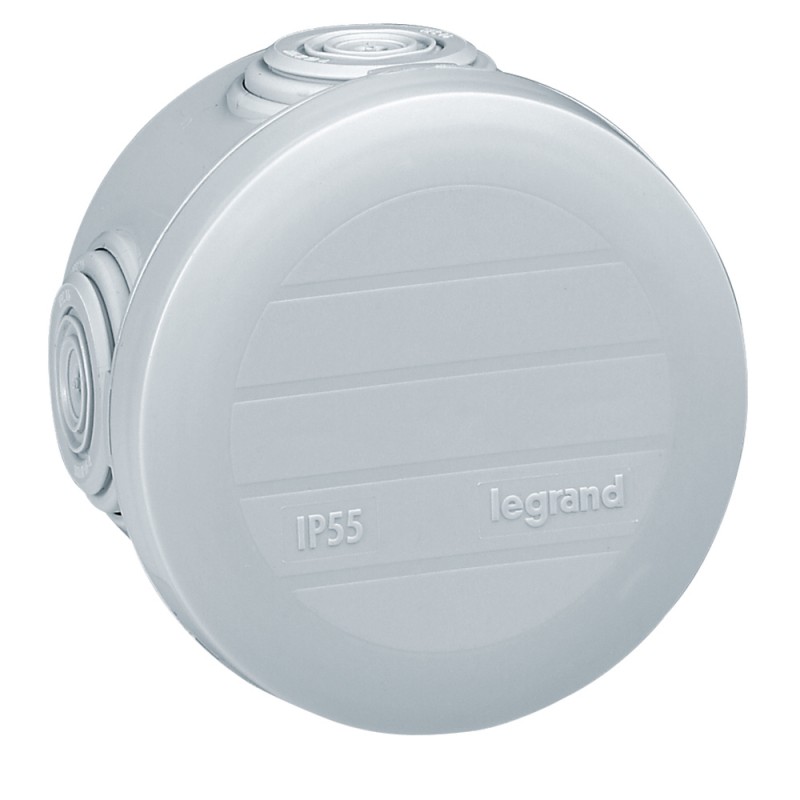

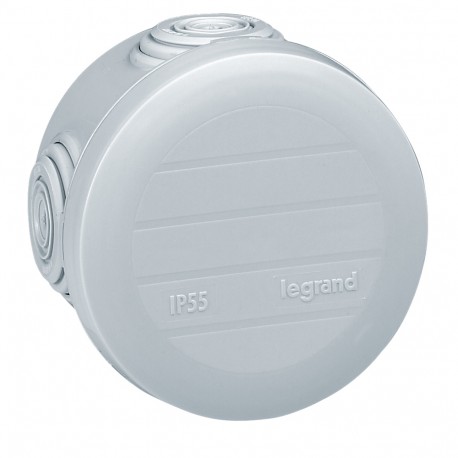

092001 LEGRAND CJ.PLEXUS ROUND 60MM
092001
LEGRAND
5
CJ.PLEXUS ROUND 60MM
Plexo IP55 Weatherproof Box 4 Glands with Plain Clip-On Cover 60mm Diameter x 40mm
Junction box for connections, Plexo IP55, round Ø60mm, height 40mm
Connection devices > Box/housing for surface mounting on the wall/ceiling
JUNCTION BOXES PLEXUS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Equipped with | None |
|---|---|
| Max. conductor cross section | 20 mm² |
| Shape | Round |
| Mounting method | Universal |
| Mounting in the soil | No |
| Mounting under water | No |
| For tube diameter | 20 mm |
| Number of inlets | 4 |
| Inlet from the rear | No |
| Depth | 46 mm |
| Diameter | 70 mm |
| Connectable | No |
| Type of housing feed-through | Trimmable step membrane |
| Material | Plastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Colour | Grey |
| Degree of protection (IP) | IP55 |
| Cover model | Other |
| Transparent cover | No |
| Castable | No |
|---|---|
| Cover attachment | Snapped on |
| Casting compound included | No |
| Sealable | No |
| Circuit integrity | None |
| With screening | No |
| Weatherproof | Yes |
| Operating / setting temperature | -25-40 °C |
| Explosion-tested version | No |
| For Ex-zone gas | None |
| For Ex-zone dust | None |
| degree of impact strength (IK) | IK07 |
| Storage temperature | -25-70 °C |
| RAL-number | 7035 |
| Antimicrobial treatment | No |
| Label space/information surface | No |
| Entry membrane gland type | Flexible to cut |
| Vertical fixing center distance | 40-40 mm |
| Horizontal fixing center distance | 40-40 mm |
| Feature Name | Feature Value |
|---|---|
| For Ex-zone dust (EF008404) | None |
| Cover attachment (EF004586) | Snap on |
| Connectable (EF006169) | No |
| Number of inlets (EF003593) | 4 |
| Degree of protection (IP) (EF005474) | IP55 |
| For tube diameter (EF005496) | 20 mm |
| Material (EF002169) | Plastic |
| Weatherproof (EF005436) | Yes |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Universal |
| Sealable (EF001454) | No |
| Casting compound included (EF009477) | No |
| Cover model (EF009212) | Other |
| Castable (EF009476) | No |
| With screening (EF005032) | No |
| Mounting in the soil (EF012570) | No |
| Mounting under water (EF012571) | No |
| Operating temperature (EF001742) | -25 °C |
| Surface protection (EF000139) | Untreated |
| Inlet from the rear (EF005604) | No |
| Equipped with (EF000557) | None |
| For Ex-zone gas (EF005728) | None |
| Shape (EF000051) | Round |
| Diameter (EF000551) | 70 mm |
| Transparent cover (EF011401) | No |
| Explosion-tested version (EF004191) | No |
| Type of housing feed-through (EF007661) | Trimmable step membrane |
| Depth (EF000049) | 46 mm |
| Circuit integrity (EF001613) | None |
| Colour (EF000007) | Grey |
| Max. conductor cross section (EF004969) | 20 mm² |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 092001 EN_092001.pdf | 1 Mbytes |
 |
