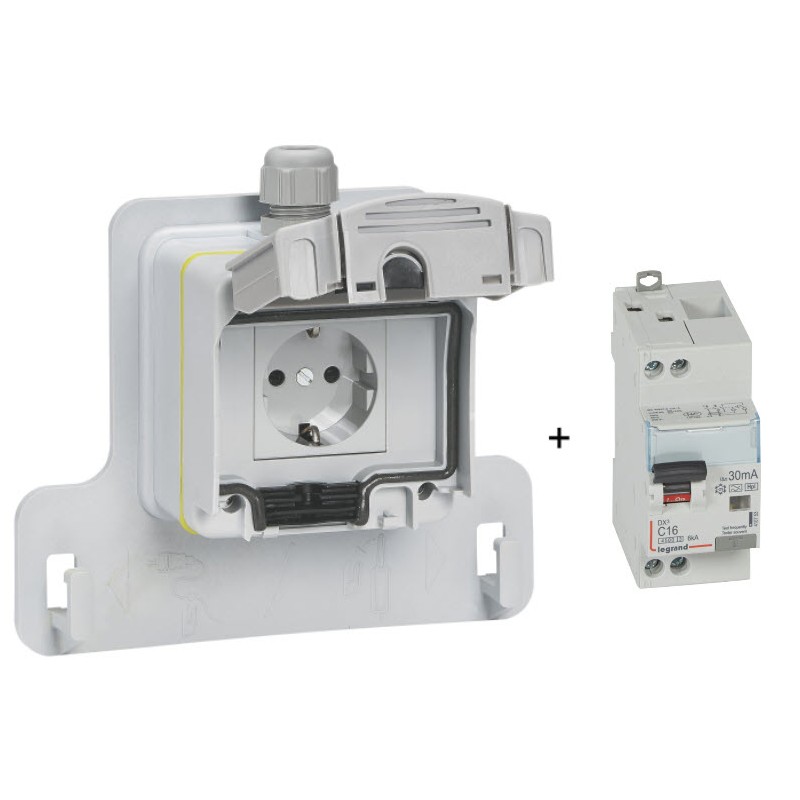

LEGRAND 090470 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

090470 LEGRAND GREEN'UP SOCKET KIT

Code: 090470

Manufacturer: LEGRAND

Description:

GREEN'UP SOCKET KIT
KIT TAKES GREEN UP
Green'up Access socket kit ready to install - IP 66-IK 08 - German standard and differential magnetotermic
Green'up Access socket kit ready to install - IP66- IK08

Categories:

  • Industrial socket/plug applications > Charging connector E-Mobility
  • LEGRAND > GREEN'UPP SOCKETS AND BASES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 243,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Green'up Access socket kit ready to install - IP 66-IK 08 - German standard and differential magnetothermal protection included.

description
Green' UP Access's ready-to-install kit creates a secure infrastructure for charging electric and hybrid vehicles at home or workplace via mode 2 (or mode 1) charging cables. It has 1 high-strength Green'up Access German standard insulating socket, with cover, IP 55, IK 08, 25 kW/h, 230V - 8 h, 6 mm² terminals, in accordance with IEC 60884-1, NF C 61-314, VDE 620-1 standards, 1 base to hang the control box from the vehicle charging cable and 1 RCBO of 20 A, C-curve, 30 mA, type HPi. Direct power supply from the electrical panel: 1 exclusive line with a 3 x 2.5 mm² cable, with protection by RCBO (one line per socket). Recommended installation height: between 0.80 and 1.20 m from the ground. The use of a surge protection device is recommended.
Differential measurements: height: 9.4 cm, width: 3.6 cm, length: 7.4 cm, net weight: 0.180 kg.

specifications

Type of mountingSurface mounted (plaster)
ModelSocket for charging
StandardOther
Connection SystemThreaded connection
With locking actuatorNo
With access lockNo
Protection Class (IP)IP55
Nominal Voltage250 V
Maximum current rating16 A
Type of currentAC 1 phase
Number of communication contacts0
Length of fixed cables0 m
Integrated LEDNo
Contact materialCuZn
Contact surface treatmentSilver plated
Impact resistanceIK08
Operating Temperature-5-40 °C
Storage temperature-25-70 °C
ColourGrey
Terminal capacity1.5-4 mm²

ETIM for 090470 Industrial plugs and sockets (EC002898)

Feature nameLED integrated (EF009328)
Feature valueNo
Feature nameModel (EF000010)
Feature valueCharging socket outlet
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameNumber of communication contacts (EF009325)
Feature value0
Feature nameType of current (EF000143)
Feature valueAC single phase
Feature nameWith access interlocking (EF009324)
Feature valueNo
Feature nameLength of the fixed connection cable (EF009327)
Feature value0 m
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameMax. nominal current (EF009326)
Feature value16 A
Feature nameWith interlocking actuator (EF009323)
Feature valueNo
Feature nameStandard (EF009322)
Feature valueOther
Feature nameSurface treatment contacts (EF002558)
Feature valueSilver-plated
Feature nameContact material (EF004019)
Feature valueCuZn
Feature nameConnection system (EF002649)
Feature valueScrew connection
