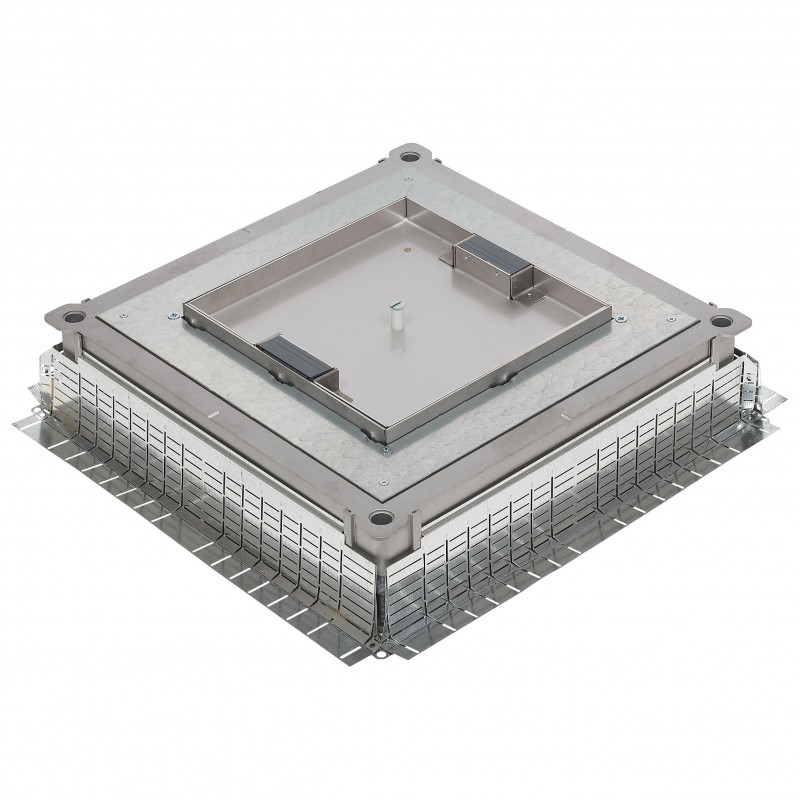

LEGRAND 089688 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

089688 LEGRAND BOX GREAT BURDEN 24M IP30

Code: 089688

Manufacturer: LEGRAND

Description:

BOX GREAT BURDEN 24M IP30
Plate for metal in-screed floor box - IP30 - with 2 lateral cable exits
24mod floor box for large loads with 2 side cable outlets

Categories:

  • Sub-floor systems > Installation box for underfloor-installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)12.76
  • Weight (g)3 408.00
Product characteristics
Plates for metal in-screed floor boxes
  • For metal in-screed floor box Cat.No 0 896 34
  • Use support Cat.No 0 896 83 or 0 896 84
  • Height adjustment of the backbox from 105 mm to 140 mm
Wooden floors
  • IP 30 plate with 2 lateral cable exits
  • To receive 24 Mosaic modules
  • Supplied with all necessary wiring accessories supports
General characteristics
Heavy duty in-screed floor box - for concrete floors
  • For highly frequented areas, requiring important mechanical resistance and/or washing down
  • Conform to standard IEC/EN 60-670

ETIM for 089688 Underfloor trunking and floor boxes (EC000024)

Feature nameDepth of flooring recess (EF005356)
Feature value24 mm
Feature nameWith opening carpeting (EF004541)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameWidth built-in dimension (EF004566)
Feature value266 mm
Feature nameProtective frame carpeting (EF004543)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueSquare
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameNumber of device cups (EF000436)
Feature value1
Feature nameSuitable for wet cleaning (EF005109)
Feature valueNo
Feature nameSuitable for double floor built-in (EF006411)
Feature valueYes
Feature nameSuitable for hollow floor (EF006410)
Feature valueYes
Feature nameLength built-in dimension (EF004875)
Feature value266 mm
Feature nameMin. built-in depth (EF005027)
Feature value65 mm
Feature nameOuter length (EF024679)
Feature value266 mm
Feature nameSuitable for subfloor duct (EF006409)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
089688 EN_089634.pdf
866 Kbytes
