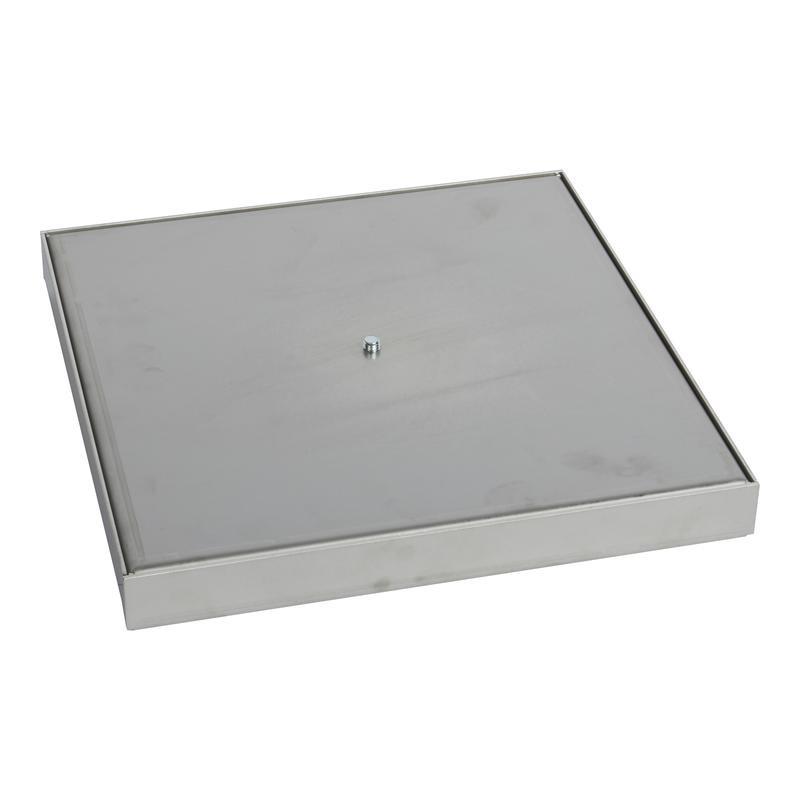

LEGRAND 089685 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

089685 LEGRAND LARGE LOAD BOX COVER IP66

Code: 089685

Manufacturer: LEGRAND

Description:

LARGE LOAD BOX COVER IP66
BOX GREAT CARGO COVER, IP66
Plain plate for metal in-screed floor box - IP66 - for all types of floors
Cable Branch Hatches - IP66 - No Cable Exit

Categories:

  • Sub-floor systems > Installation box for underfloor-installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 257,59 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)4.061
  • Weight (g)2 299.00
Product characteristics
Plates for metal in-screed floor boxes
  • For metal in-screed floor box Cat.No 0 896 34
  • Use support Cat.No 0 896 83 or 0 896 84
  • Height adjustment of the backbox from 105 mm to 140 mm
All types of floors
  • IP 66 plain cover (cover closed)
  • Access trap for junction, no cable exit
General characteristics
Heavy duty in-screed floor box - for concrete floors
  • For highly frequented areas, requiring important mechanical resistance and/or washing down
  • Conform to standard IEC/EN 60-670

ETIM for 089685 Underfloor trunking and floor boxes (EC000024)

Feature nameDepth of flooring recess (EF005356)
Feature value24 mm
Feature nameWith opening carpeting (EF004541)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valueStainless steel
Feature nameWidth built-in dimension (EF004566)
Feature value266 mm
Feature nameProtective frame carpeting (EF004543)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueSquare
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameNumber of device cups (EF000436)
Feature value1
Feature nameSuitable for wet cleaning (EF005109)
Feature valueYes
Feature nameSuitable for double floor built-in (EF006411)
Feature valueYes
Feature nameSuitable for hollow floor (EF006410)
Feature valueYes
Feature nameLength built-in dimension (EF004875)
Feature value266 mm
Feature nameMin. built-in depth (EF005027)
Feature value65 mm
Feature nameOuter length (EF024679)
Feature value266 mm
Feature nameSuitable for subfloor duct (EF006409)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOther
