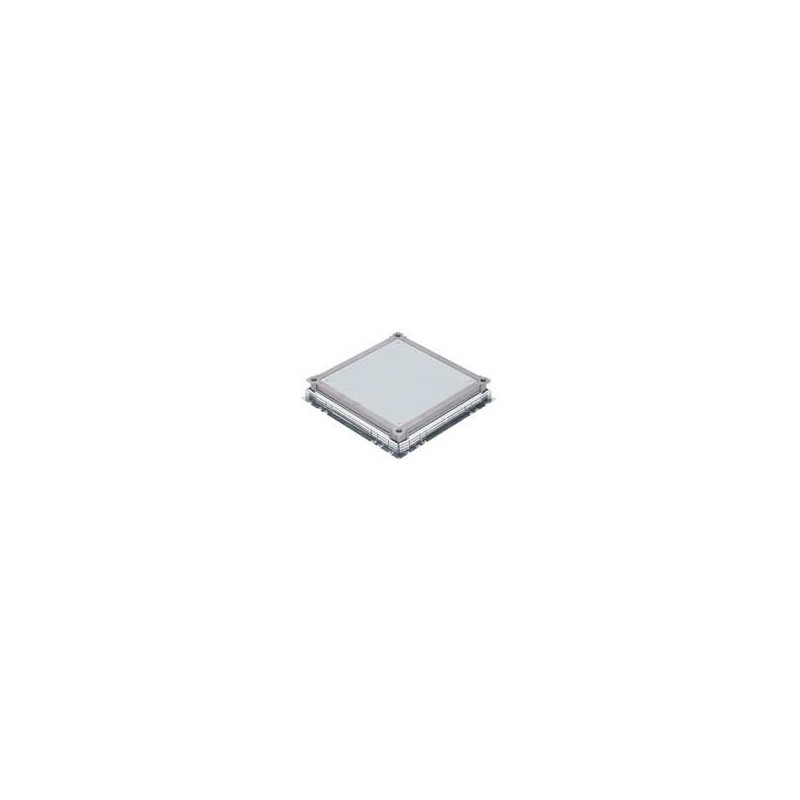

LEGRAND 089634 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

089634 LEGRAND BOX LARGE LOADING BUCKET METAL

Code: 089634

Manufacturer: LEGRAND

Description:

BOX LARGE LOADING BUCKET METAL
Underfloor box - universal metal in-screed back box
Recessed metal box for floor box and channel

Categories:

  • Sub-floor systems > Service box for underfloor installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)14.00
  • Weight (g)5 872.00
Product characteristics
Adjustable metal backbox for concrete floor
Universal backbox
  • For junction of LV and ELV cabling and/or installation of heavy duty floor boxes
  • Height adjustable from 56 mm to 140 mm using 4 screws located in the box corners and a tool adapting to electric drill or screwdriver
  • Bendable side walls for joining with different sizes of floor ducts
  • Supplied with worksite protection cover to be replaced by blanking cover plate or mounting cover plate
  • Universal metal in-screed backbox
General characteristics
Heavy duty in-screed floor box - for concrete floors
  • For highly frequented areas, requiring important mechanical resistance and/or washing down
  • Conform to standard IEC/EN 60-670

ETIM for 089634 Underfloor trunking and floor boxes (EC000893)

Feature nameLevelling range (EF005136)
Feature value56 mm
Feature nameBuilt-in opening for floor column (EF004641)
Feature valueNo
Feature nameDecoupling possibility cover from base unit (EF007745)
Feature valueYes
Feature nameSuitable for placing of sealing (EF004594)
Feature valueYes
Feature nameDuct height (EF005459)
Feature value28 mm
Feature nameNominal dimension (EF000132)
Feature value480 mm
Feature nameDuct width (EF007884)
Feature value50 mm
Feature nameBottom plate (EF004544)
Feature valueYes
Feature nameMaterial side wall (EF008133)
Feature valueSteel
Feature nameSuitable for subfloor duct countersunk (closed) (EF005792)
Feature valueYes
Feature nameSuitable for subfloor duct overhead closed (EF006408)
Feature valueNo
Feature nameMin. height finishing layer (EF007935)
Feature value50 mm
Feature nameBuilt-in opening for built-in unit (EF007738)
Feature valueSquare
