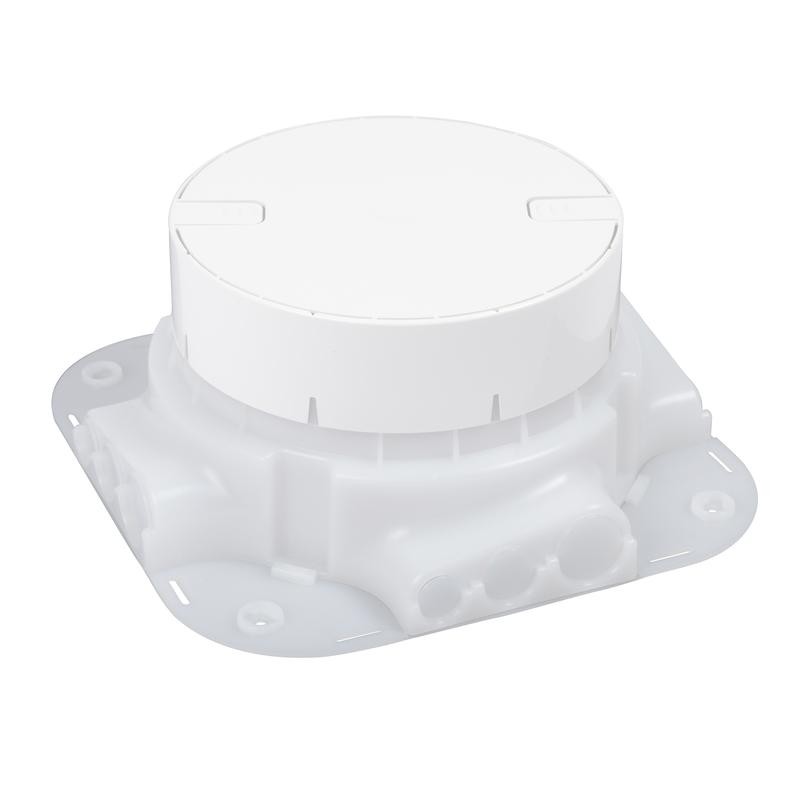

LEGRAND 088069 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

088069 LEGRAND FLOOR PAVEMENT BOX

Code: 088069

Manufacturer: LEGRAND

Description:

FLOOR PAVEMENT BOX
BOX FLOOR PAVEMENT
Legrand IP66 Floor Box Auto-Adjustable Back Box
Floor box tray IP66 - with lid

Categories:

  • Sub-floor systems > Service box for underfloor installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 24,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Auto-adjustable back box for installing IP 66 floor boxes in concrete floors Supplied with cover Accepts conduits Ø16, 20, 25 mm Minimum screed height: 65 mm
Nominal dimension25 mm
Min. height finishing layer65 mm
Levelling range65-97 mm
Suitable for subfloor duct countersunk (closed)Yes
Suitable for subfloor duct overhead closedNo
Duct height16-25 mm
Duct width16-25 mm
Built-in opening for floor columnNo
Built-in opening for built-in unitRound
Number of appliances to build in2
Material side wallPlastic
Suitable for placing of sealingNo
Decoupling possibility cover from base unitYes
Bottom plateNo

ETIM for 088069 Underfloor trunking and floor boxes (EC000893)

Feature nameLevelling range (EF005136)
Feature value65 mm
Feature nameBuilt-in opening for floor column (EF004641)
Feature valueNo
Feature nameDecoupling possibility cover from base unit (EF007745)
Feature valueYes
Feature nameSuitable for placing of sealing (EF004594)
Feature valueNo
Feature nameDuct height (EF005459)
Feature value16 mm
Feature nameNominal dimension (EF000132)
Feature value25 mm
Feature nameDuct width (EF007884)
Feature value16 mm
Feature nameBottom plate (EF004544)
Feature valueNo
Feature nameMaterial side wall (EF008133)
Feature valuePlastic
Feature nameSuitable for subfloor duct countersunk (closed) (EF005792)
Feature valueYes
Feature nameSuitable for subfloor duct overhead closed (EF006408)
Feature valueNo
Feature nameMin. height finishing layer (EF007935)
Feature value65 mm
Feature nameBuilt-in opening for built-in unit (EF007738)
Feature valueRound
Feature nameNumber of appliances to build in (EF000219)
Feature value2
