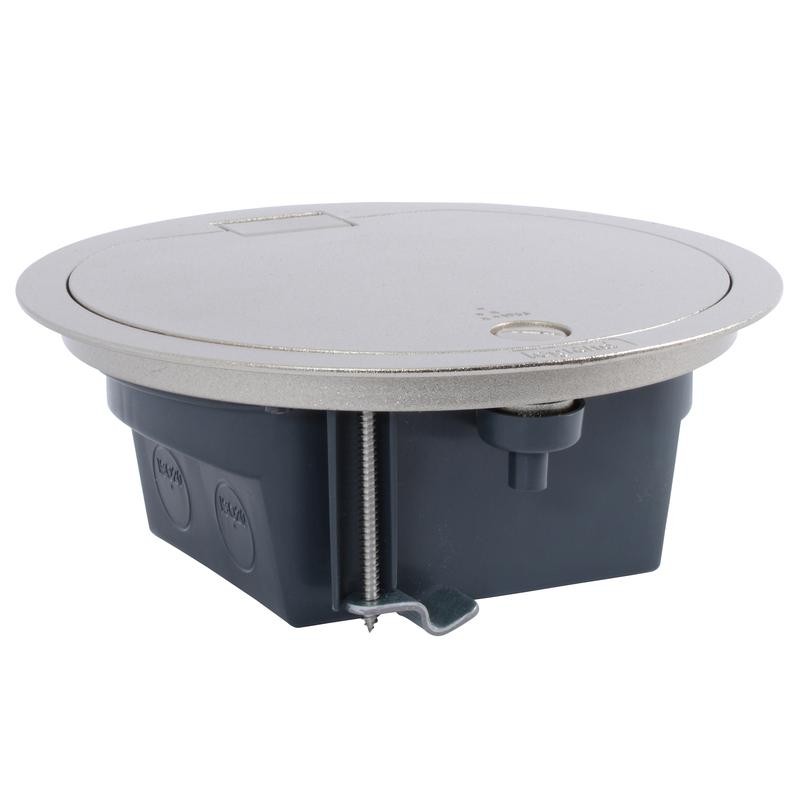

LEGRAND 088064 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

088064 LEGRAND IP66 FLOOR BOX LID/BIS IN

Code: 088064

Manufacturer: LEGRAND

Description:

IP66 FLOOR BOX LID/BIS IN
BOX GROUND IP66 LID/BIS IN
Legrand IP66 Floor Box with Hinged Lid 170mm
Floor box with lid hinged lid - IP66 - 4mod - Inox

Categories:

  • Sub-floor systems > Installation box for underfloor-installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 136,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Supplied with lid and 4 module support frame for Arteor modules To be installed in flush mounting back box Cat.No. 0880 69 or directly in raised floor Overall Ø 170 mm IK 09 with the lid closed Resistance to loads with lid closed: 10000 N
Cover modelRound
Number of inlets1
Number of device cups1
Number of socket outlets with protective contact CEE 7/3 (type F)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of socket outlets British Standard BS 13630
With cable outlet in coverNo
Lockable coverYes
Lock controlOther
Housing materialOther
Surface protection housingChromium-plated
Material coverOther
Surface protection coverOther
Surface treatment coverOther
Degree of protection (IP) when in use (cable outlet open)Other
With opening carpetingNo
Depth of flooring recess0 mm
Protective frame carpetingYes
ColourOther
Suitable for indoor installationYes
Suitable for outdoor installationNo
Suitable for subfloor ductYes
Suitable for hollow floorYes
Suitable for double floor built-inYes
Suitable for concrete installationYes
Suitable for floors in computer roomsYes
Suitable for wet cleaningNo
Outer diameter170 mm
Built-in diameter152 mm
Min. built-in depth65 mm
Depth70 mm
number of rows1
degree of impact strength (IK)IK09
Operating / setting temperature-5-60 °C
Halogen freeYes
Fitted with USB plugNo

ETIM for 088064 Underfloor trunking and floor boxes (EC000024)

Feature nameDepth of flooring recess (EF005356)
Feature value0 mm
Feature nameWith opening carpeting (EF004541)
Feature valueNo
Feature nameSurface protection housing (EF024150)
Feature valueChrome plated
Feature nameNumber of inlets (EF003593)
Feature value1
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameMaterial cover (EF005414)
Feature valueOther
Feature nameProtective frame carpeting (EF004543)
Feature valueYes
Feature nameCover model (EF009212)
Feature valueRound
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameOuter diameter (EF000015)
Feature value170 mm
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameNumber of device cups (EF000436)
Feature value1
Feature nameSuitable for wet cleaning (EF005109)
Feature valueNo
Feature nameLockable cover (EF016011)
Feature valueYes
Feature nameSuitable for double floor built-in (EF006411)
Feature valueYes
Feature nameSuitable for hollow floor (EF006410)
Feature valueYes
Feature nameSuitable for concrete installation (EF003682)
Feature valueYes
Feature nameSuitable for outdoor installation (EF011885)
Feature valueNo
Feature nameMin. built-in depth (EF005027)
Feature value65 mm
Feature nameSuitable for indoor installation (EF011884)
Feature valueYes
Feature nameNumber of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE) (EF000409)
Feature value0
Feature nameSurface protection cover (EF015331)
Feature valueOther
Feature nameNumber of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE) (EF000408)
Feature value0
Feature nameWith cable outlet in cover (EF015333)
Feature valueNo
Feature nameSurface treatment cover (EF015332)
Feature valueOther
Feature nameSuitable for floors in computer rooms (EF015334)
Feature valueYes
Feature nameSuitable for subfloor duct (EF006409)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOther
Feature nameBuilt-in diameter (EF000943)
Feature value152 mm
