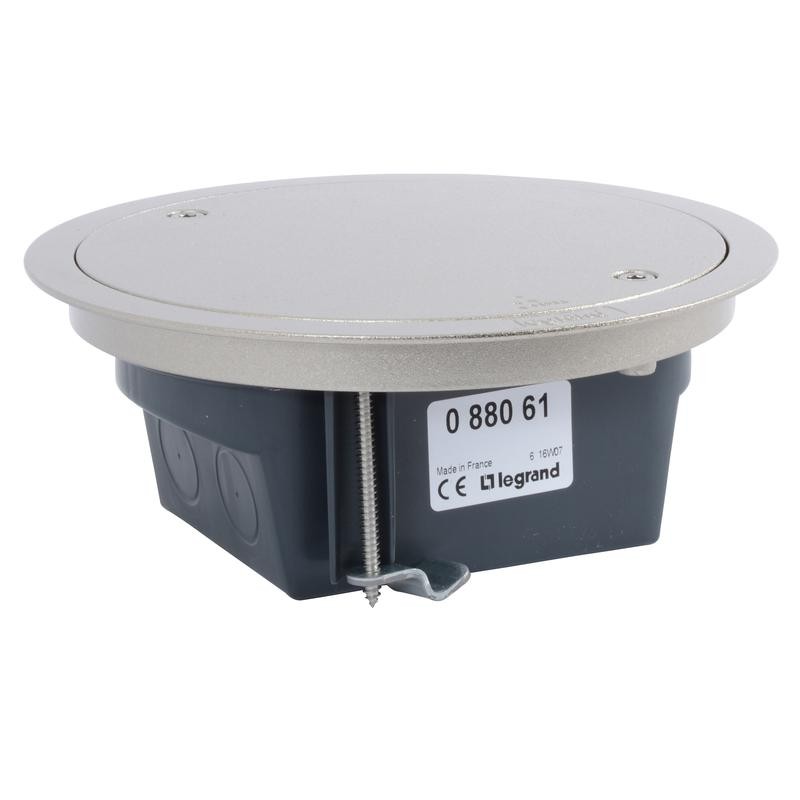

088061 LEGRAND BOX GROUND IP66 CAP/TOR IN
088061
LEGRAND
BOX GROUND IP66 CAP/TOR IN
Legrand IP66 Floor Box with Removable Lid 170mm
Button plate 18, black, I
Sub-floor systems > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Cover model | Round |
|---|---|
| Number of inlets | 1 |
| Number of device cups | 1 |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE) | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE) | 0 |
| Number of socket outlets British Standard BS 1363 | 0 |
| With cable outlet in cover | No |
| Lockable cover | Yes |
| Lock control | Other |
| Housing material | Other |
| Surface protection housing | Chromium-plated |
| Material cover | Other |
| Surface protection cover | Other |
| Surface treatment cover | Other |
| Degree of protection (IP) when in use (cable outlet open) | Other |
| With opening carpeting | No |
| Depth of flooring recess | 0 mm |
| Protective frame carpeting | Yes |
| Colour | Other |
|---|---|
| Suitable for indoor installation | Yes |
| Suitable for outdoor installation | Yes |
| Suitable for subfloor duct | Yes |
| Suitable for hollow floor | Yes |
| Suitable for double floor built-in | Yes |
| Suitable for concrete installation | Yes |
| Suitable for floors in computer rooms | Yes |
| Suitable for wet cleaning | Yes |
| Outer diameter | 170 mm |
| Built-in diameter | 152 mm |
| Min. built-in depth | 65 mm |
| Depth | 70 mm |
| number of rows | 1 |
| degree of impact strength (IK) | IK09 |
| Operating / setting temperature | -5-60 °C |
| Halogen free | Yes |
| Fitted with USB plug | No |
| Feature Name | Feature Value |
|---|---|
| Depth of flooring recess (EF005356) | 0 mm |
| With opening carpeting (EF004541) | No |
| Surface protection housing (EF024150) | Chrome plated |
| Number of inlets (EF003593) | 1 |
| Housing material (EF001596) | Other |
| Material cover (EF005414) | Other |
| Protective frame carpeting (EF004543) | Yes |
| Cover model (EF009212) | Round |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Outer diameter (EF000015) | 170 mm |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Number of device cups (EF000436) | 1 |
| Suitable for wet cleaning (EF005109) | Yes |
| Lockable cover (EF016011) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for concrete installation (EF003682) | Yes |
| Suitable for outdoor installation (EF011885) | Yes |
| Min. built-in depth (EF005027) | 65 mm |
| Suitable for indoor installation (EF011884) | Yes |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE) (EF000409) | 0 |
| Surface protection cover (EF015331) | Other |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE) (EF000408) | 0 |
| With cable outlet in cover (EF015333) | No |
| Surface treatment cover (EF015332) | Other |
| Suitable for floors in computer rooms (EF015334) | Yes |
| Suitable for subfloor duct (EF006409) | Yes |
| Colour (EF000007) | Other |
| Built-in diameter (EF000943) | 152 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 088061 EN_088061.pdf | 3 Mbytes |
 |
