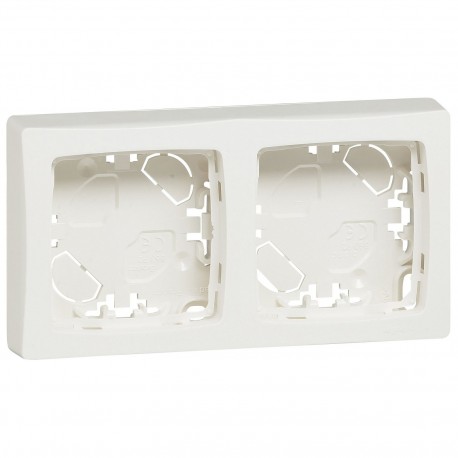

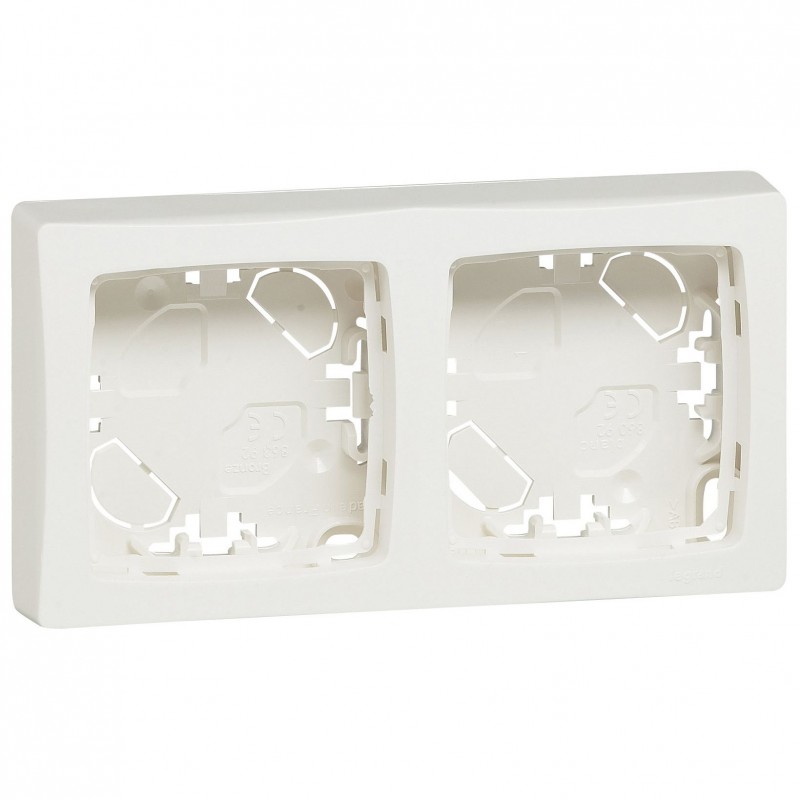

086092 LEGRAND OT-COMP PLATE 2ELE WHITE
086092
LEGRAND
10
OT-COMP PLATE 2ELE WHITE
Surface plate 2 posts - Lookahead - white
Oteo 2-post surface plate in white color
Domestic switching devices > Surface mounted housing for flush mounted switching device
OTEO MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Product features
Bales of surface - Usable in horizontal or vertical - For entry of cables from behind - Entries desfondadas accept up to 6 x 2.5 mm2 - Support mechanisms modular - 2 posts 138 x 72 mmGeneral characteristics
Oteo - Mechanisms of surface - to- valve - Mechanisms IP 2X protected against direct contact - 250 V~ - Include terminals open - white Finish RAL 9010| Feature Name | Feature Value |
|---|---|
| With duct entry (EF007953) | Yes |
| Height (EF000040) | 72 mm |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP2X |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Suitable for modular domestic switching devices (EF009574) | No |
| Number of modules (module system) (EF009573) | 4 |
| Transparent (EF006243) | No |
| With cover frame (EF003807) | No |
| With installation tube entry (EF016998) | No |
| Mounting direction (EF003824) | Horizontal and vertical |
| Surface protection (EF000139) | Untreated |
| Inlet from the rear (EF005604) | Yes |
| Number of units (EF000074) | 1 |
| RAL-number (similar) (EF003882) | 9003 |
| Shape (EF000051) | Rectangular |
| With screw gland entry (EF006751) | No |
| Suitable for mounting over existing flush-mounted box (EF016999) | No |
| Desktop device (EF014363) | No |
| Depth (EF000049) | 22 mm |
| Assembly arrangement (EF000005) | Surface mounted frame |
| Colour (EF000007) | White |
| With cable entry (EF000325) | Yes |
| Width (EF000008) | 138 mm |
