LEGRANDOTEO MECHANISMS086020L LEGRAND OT-MBL INT. CONM. DOUBLE PRESS

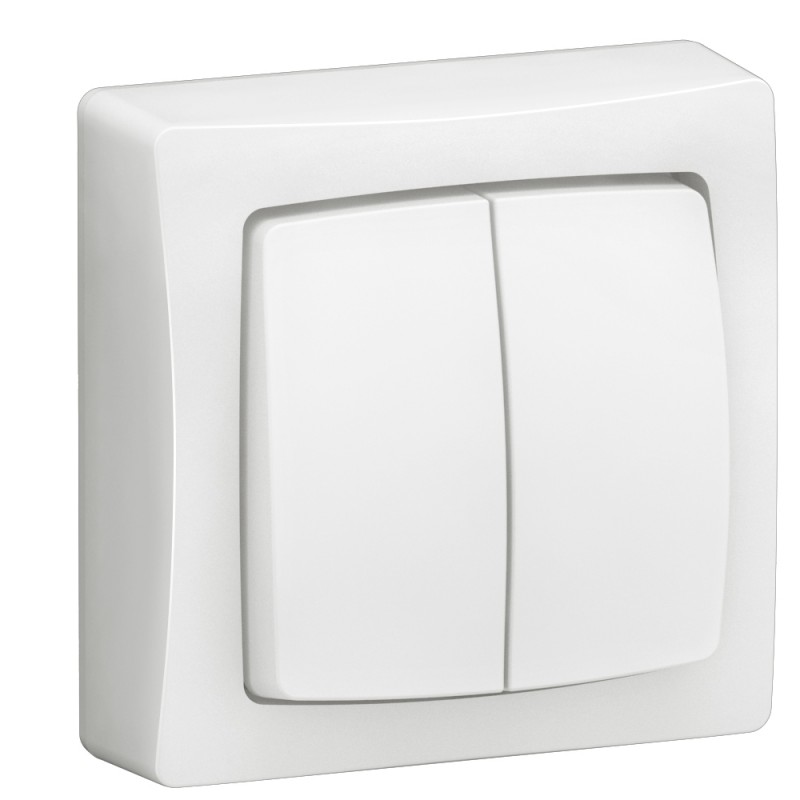

LEGRAND 086020L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

086020L LEGRAND OT-MBL INT. CONM. DOUBLE PRESS

Code: 086020L

Manufacturer: LEGRAND

Description:

OT-MBL INT. CONM. DOUBLE PRESS
Double Switch/Switch/Push Button - Oteo - 10A - monobloc - White

Categories:

  • Domestic switching devices > Installation switch
  • LEGRAND > OTEO MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 173,63 €

Unit Price: 17,363 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Double Mechanism Switch Switch Push Button Square Series Oteo. Switches 10 AX - Switch-switch. Oteo - Surface mechanisms - monobloc - IP 31 mechanisms - 250 V~ - White finish RAL 9003.
Cabling SystemOther
Type of operationRocker/button
Type of mountingBase element with full housing, Surface mounted (plaster)
Number of modules (in case of modular design)2
Push Button SwitchYes
Number of rocker arms2
Attachment TypeThread fastening
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishBright
ColourWhite
RAL number (similar)9003
Switching element colorWhite
Label space/print surfaceNo
LightingNo
Lighting functionOther
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodPlug clamp
Heating switchNo
Washing machine switchNo
Device width72 mm
Device height72 mm
Device Depth31 mm
Installation Depth0 mm
Min. depth of the recessed box0 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Complies with UK Building Regulations, Part MNo
Operating Temperature-5-40 °C
Storage temperature-5-40 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Terminal capacity1.5-1.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-1.5 mm²

ETIM for 086020L Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameWiring system (EF002960)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueYes
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueWhite
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value0 mm
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value0 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameCompliant with UK Building Regulations Part M (EFUK0017)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value31 mm
Feature nameLighting (EF000134)
Feature valueNo
Feature nameFunction lighting (EF009420)
Feature valueOther
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value72 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit fully enclosed
Feature nameDevice height (EF008809)
Feature value72 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueWhite
Feature nameMethod of operation (EF000006)
Feature valueRocker
Feature nameNumber of rockers (EF003816)
Feature value2

DATASHEET - PDF

Title
Size
Type
086020L EN_086020L.pdf
690 Kbytes
