LEGRANDCOLUMN WIRING MANAGEMENT081988 LEGRAND CONCRETE + TECHNICAL FLOOR D80 BOX

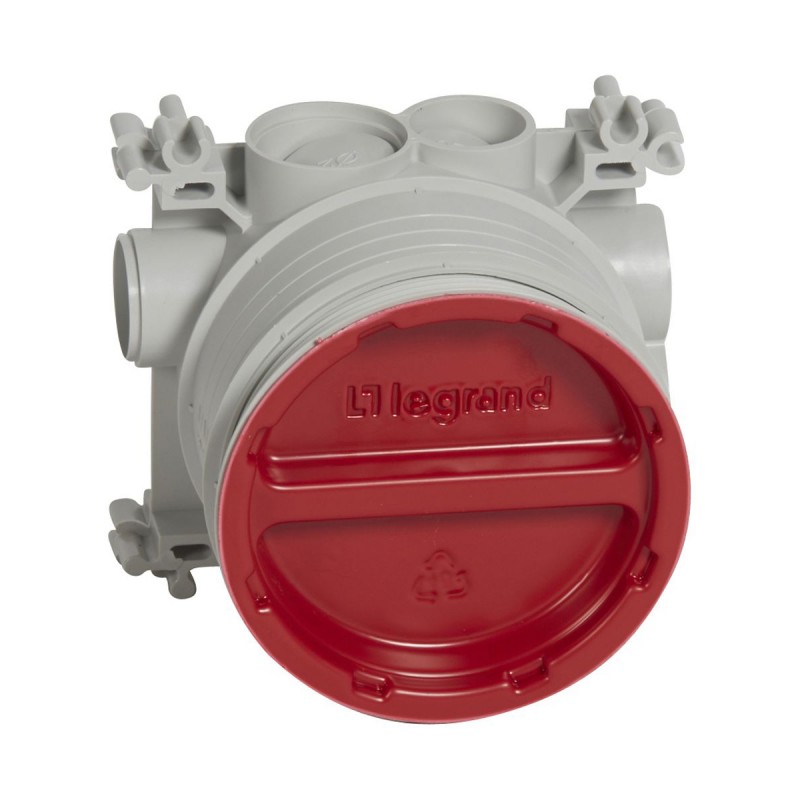

LEGRAND 081988 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

081988 LEGRAND CONCRETE + TECHNICAL FLOOR D80 BOX

Code: 081988

Manufacturer: LEGRAND

Description:

CONCRETE + TECHNICAL FLOOR D80 BOX
BOX CONCRETE+SUELOTECNICO D80
Floor flush-mounting box for floor socket - Ø 80 mm
Box for concrete (thicknesses: 50 to 80mm) and raised floor (thicknesses: 10 to 40mm)

Categories:

  • Connection devices > Box/housing for built-in mounting in the wall/ceiling
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 81,35 €

Unit Price: 13,559 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)6
  • Volume (dm3)7.50
  • Weight (g)808.00
Product characteristics
Boxes and accessories
  • Floor box
  • Flush-mounting box for concrete slab (50 to 80mm thick) or raised access floor (10 to 40 mm thick) using saw Cat.No 0 800 88
  • Ø80 mm
  • Can be joined to make multi-gang assemblies
General characteristics
Floor sockets

ETIM for 081988 Junction and back boxes (EC002601)

Feature nameNumber of inlets (EF003593)
Feature value8
Feature nameFor tube diameter (EF005496)
Feature value20/25 mm
Feature namePipe locking (EF005657)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameSealable (EF001454)
Feature valueNo
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameEquipped with (EF000557)
Feature valueOther
Feature nameSuitable for cable diameter (EF005466)
Feature value20 mm
Feature nameShape (EF000051)
Feature valueOther
Feature nameClamp position fixed (EF007889)
Feature valueNo
Feature nameModel (EF000010)
Feature valueSingle
Feature nameNumber of poles of the clamp (EF008016)
Feature value0
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameConstruction type (EF000767)
Feature valueDevice connection box (round/square)
Feature nameWidth (EF000008)
Feature value91 mm
Feature nameMax. conductor cross section (EF004969)
Feature value0 mm²
Feature nameCover attachment (EF004586)
Feature valueSnap on
Feature nameAir tight (EF005430)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameDiameter (EF000551)
Feature value80 mm
Feature nameNozzle (EF008076)
Feature valueNone
Feature nameLuminaire hook mounting (EF004902)
Feature valueNo
Feature nameFor number of electric fittings (EF004702)
Feature value1
Feature nameMounting switching equipment (EF004508)
Feature valueScrewing

DATASHEET - PDF

Title
Size
Type
081988 EN_081988.pdf
990 Kbytes
