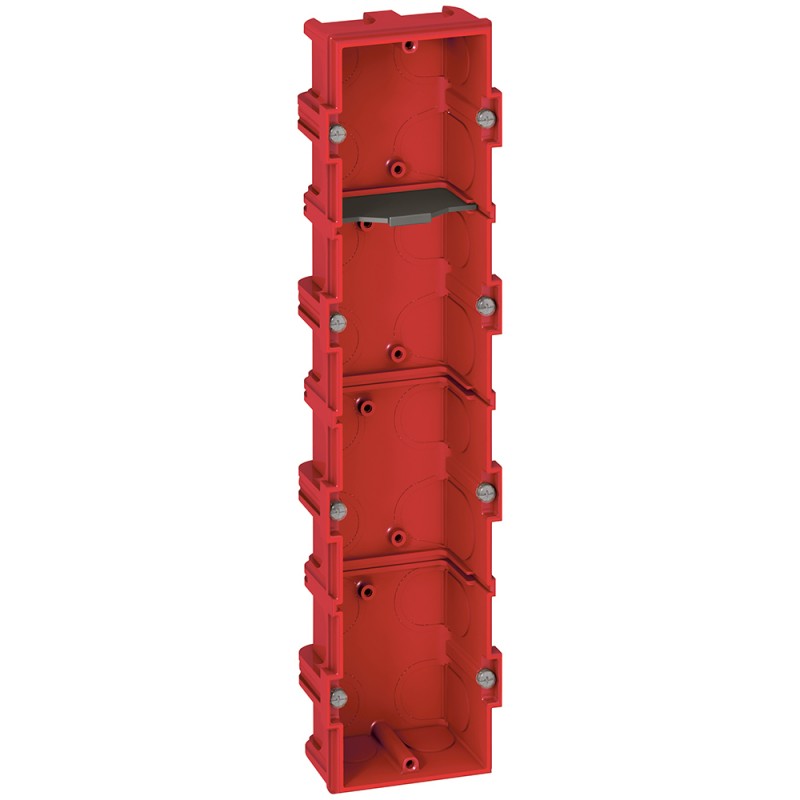

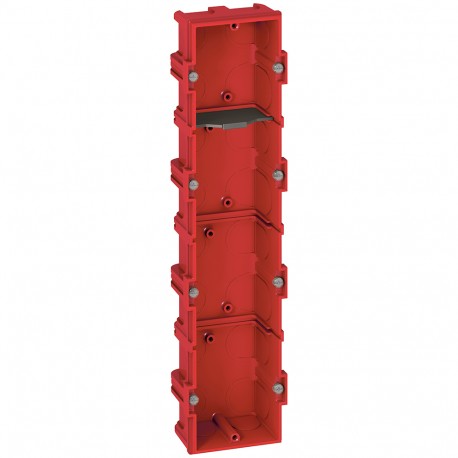

080144 LEGRAND UNIVERSAL BOX 8 MODULES
080144
LEGRAND
30
UNIVERSAL BOX 8 MODULES
Batibox recessed box for masonry. 4 elements, 8/10 modules. Depth 40mm
Batibox recessed box for masonry. 4 elements. Prof. 40mm
Connection devices > Box/housing for built-in mounting in the wall/ceiling
INSTALLATION ACCESSORIES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Type of mounting | Exposed masonry |
|---|---|
| Form | Rectangular |
| Construction Method | Device Connection Box (Round/Square) |
| Model | Quadruple |
| With rotary ring | No |
| Attachable | No |
| equipment | none |
| Longitude | 287 mm |
| Width | 71 mm |
| Depth | 43-43 mm |
| Internal depth | 40 mm |
| For multiple device insertions | 10 |
| Assembling the devices | Screw or expand |
| With screws | Yes |
| Number of non-adjustable device attachment fins | 0 |
| Number of adjustable device attachment fins | 0 |
| Passage through the box by means of a blind lid | Yes |
| Passage through the box by membrane | No |
| Passage through the box by means of a fitting | Yes |
| Passage through the box by means of a graduated membrane procedure | No |
| For tube diameter | 20/25 mm |
| Suitable for cable diameter | 20-25 mm |
| Tube Lock | No |
| Optional tube lock | No |
| Introduction from the back | Yes |
| Number of introductions | 20 |
|---|---|
| Number of nozzles included | 0 |
| Material | Plastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Colour | Red |
| Protection Class (IP) | IP20 |
| Cover Version | none |
| Transparent cover | No |
| Fixing the cover | Other |
| Sealable | No |
| Circuit Integrity | none |
| With shielding | No |
| Windproof | No |
| Number of Clamp Poles | 0 |
| Fixed clamp in position | No |
| Lighting Hook Fixture | No |
| Nozzle | none |
| Special Application | none |
| With partition | Yes |
| Impact resistance | IK04 |
| Operating Temperature | -5-40 °C |
| Storage temperature | -5-60 °C |
| Cable Holder | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Number of inlets (EF003593) | 20 |
| For tube diameter (EF005496) | 20/25 mm |
| Inner depth (EF001131) | 40 mm |
| Pipe locking (EF005657) | No |
| Mounting method (EF000003) | Facing brickwork |
| Depth (EF005457) | 43 mm |
| Sealable (EF001454) | No |
| Number of included spouts (EF009210) | 0 |
| Cover model (EF009212) | None |
| Number of non-adjustable device fixing lugs (EF017002) | 0 |
| Number of adjustable device fixing lugs (EF017003) | 0 |
| Inlet from the rear (EF005604) | Yes |
| Equipped with (EF000557) | None |
| Suitable for cable diameter (EF005466) | 20 mm |
| Shape (EF000051) | Rectangular |
| Clamp position fixed (EF007889) | No |
| Model (EF000010) | 4-fold |
| Number of poles of the clamp (EF008016) | 0 |
| Transparent cover (EF011401) | No |
| With screws (EF005066) | Yes |
| Circuit integrity (EF001613) | None |
| Colour (EF000007) | Red |
| Construction type (EF000767) | Device connection box (round/square) |
| Width (EF000008) | 71 mm |
| Cover attachment (EF004586) | Other |
| Air tight (EF005430) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Special application (EF006205) | None |
| With partition panel (EF007973) | Yes |
| Halogen free (EF000025) | Yes |
| With screening (EF005032) | No |
| Surface protection (EF000139) | Untreated |
| Couplable (EF001229) | No |
| Housing feed-through by step membrane (EF009208) | No |
| Housing feed-through by nozzle (EF009207) | Yes |
| Pipe locking optional (EF009209) | No |
| Provided with revolving ring (EF009204) | No |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Nozzle (EF008076) | None |
| Luminaire hook mounting (EF004902) | No |
| For number of electric fittings (EF004702) | 10 |
| Length (EF001438) | 287 mm |
| Mounting switching equipment (EF004508) | Screw or spread out |
