LEGRANDINSTALLATION ACCESSORIES080124 LEGRAND MOSAIC II EMBEDDED BOX 2X5M
LEGRAND 080124 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

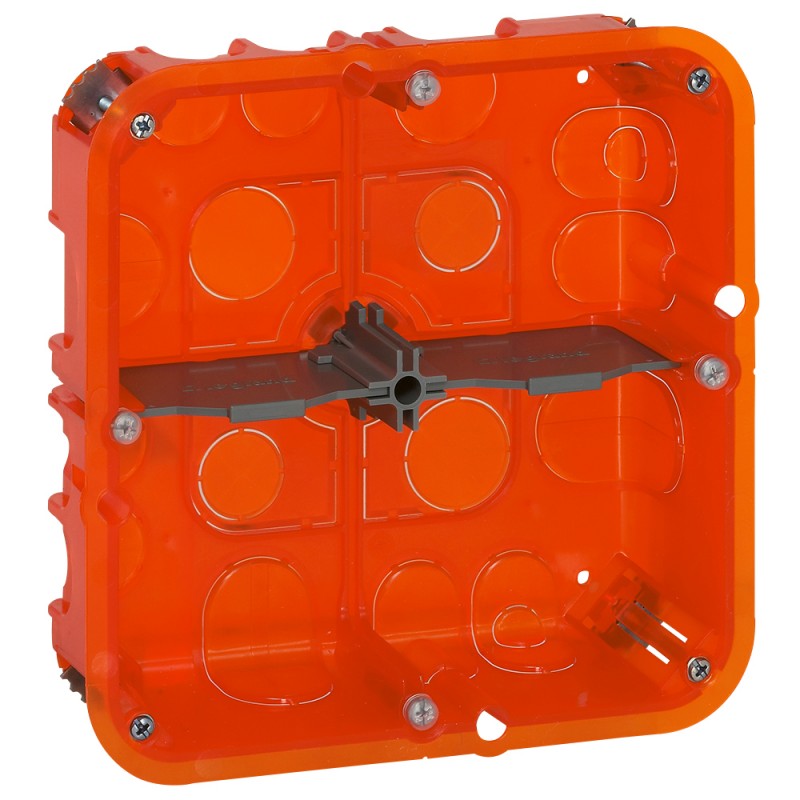

080124 LEGRAND MOSAIC II EMBEDDED BOX 2X5M

Code: 080124

Manufacturer: LEGRAND

Description:

MOSAIC II EMBEDDED BOX 2X5M
MOSAIC II CASE EMPOTR 2X5M
Flush mounting box Batibox - depth 50 mm - 142 x 142 mm - multi-material
Large format Batibox recessed box. 2x2 elements. Prof. 50mm

Categories:

  • Connection devices > Box/housing for built-in mounting in the wall/ceiling
  • LEGRAND > INSTALLATION ACCESSORIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 8,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.016
  • Weight (g)181.00
Product characteristics
Multi-gang boxes for multi-material
  • For Arteor, Mosaic
  • Depth 50 mm
  • 2 x 2 gang or 2 x 4/5 modules
  • Dimensions: 142 x 142 mm
General characteristics
Universal box and flush-mounting boxes for masonry

ETIM for 080124 Junction and back boxes (EC002601)

Feature nameNumber of inlets (EF003593)
Feature value16
Feature nameFor tube diameter (EF005496)
Feature value20/25 mm
Feature nameInner depth (EF001131)
Feature value50 mm
Feature namePipe locking (EF005657)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameSealable (EF001454)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueNone
Feature nameInlet from the rear (EF005604)
Feature valueYes
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameSuitable for cable diameter (EF005466)
Feature value20 mm
Feature nameShape (EF000051)
Feature valueSquare
Feature nameClamp position fixed (EF007889)
Feature valueNo
Feature nameModel (EF000010)
Feature valueOther
Feature nameNumber of poles of the clamp (EF008016)
Feature value0
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueOrange
Feature nameConstruction type (EF000767)
Feature valueDevice connection box (round/square)
Feature nameWidth (EF000008)
Feature value154 mm
Feature nameMax. conductor cross section (EF004969)
Feature value0 mm²
Feature nameCover attachment (EF004586)
Feature valueOther
Feature nameAir tight (EF005430)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNozzle (EF008076)
Feature valueNone
Feature nameLuminaire hook mounting (EF004902)
Feature valueNo
Feature nameFor number of electric fittings (EF004702)
Feature value5
Feature nameMounting switching equipment (EF004508)
Feature valueScrew or spread out
