LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS079351L LEGRAND MO-BASE 2P+T 2M TOR NM

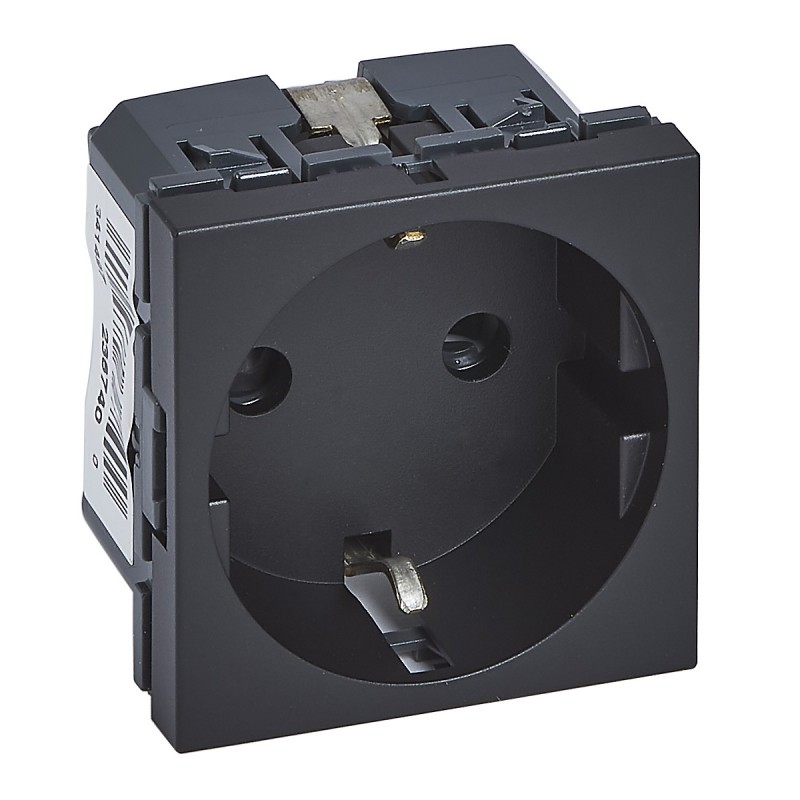

LEGRAND 079351L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

079351L LEGRAND MO-BASE 2P+T 2M TOR NM

Code: 079351L

Manufacturer: LEGRAND

Description:

MO-BASE 2P+T 2M TOR NM
2P+T SCH TOR NEGR MAT 90 SOCKET
Mosaic Plate - 1 module - Matte black
Mosaic Multiple Power Base - 2x2P+T - emb with screws - Matte Black

Categories:

  • Domestic switching devices > Socket outlet
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 98,19 €

Unit Price: 9,8185 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Mosaic 2P+T 16A 250V power base or socket with screw terminals and child protection. 90º angle shots. Measurements: 45x45x32.5mm. IK04. IP41. Halogen-free polycarbonate material. UV resistant. Matte black color.

description
Mosaic 2P+T 16A 250V power base or socket with screw terminals and child protection. 90º angle shots. Measurements: 45x45x32.5mm. Capacity: 2x4mm2. IK04. IP41. Halogen-free polycarbonate material. UV resistant. Operating temperature - 5°C to + 35°C. Self-extinguishing at 850º. Matte black color RAL 9017.

specifications

Number of Units1
Assembly DirectionHorizontal
Number of horizontal units1
Number of vertical units1
Number of modules horizontally (in case of modular design)1
Number of vertical modules (in case of modular design)1
With mounting frameNo
Flush mountingYes
Suitable for underfloor ductingNo
Suitable for device installation conduitNo
Suitable for built-in installationYes
Label Space/Print AreaNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentVarnishing
Surface FinishMate
ColourBlack
RAL number (similar)9017
TransparentNo
With flip-top lidNo
Protection Class (IP)Other
Impact resistanceIK04
Attachment TypeLock in position
Width40 mm
Height82 mm
Depth9 mm
Installation height0 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Wood species in LatinNot applicable
Wood certification (list)Not applicable
Climate zone of the origin of the woodNot applicable

ETIM for 079351L Domestic wiring accessories and controls (EC000125)

Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value16 A
Feature nameRotated central insert (EF001331)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameFault current protection (EF001333)
Feature valueNo
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameEject-mechanism (EF001051)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of ports USB-C (EF017049)
Feature value0
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameImprint/indication (EF003823)
Feature valueNone
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameNumber of ports USB-A (EF000997)
Feature value0
Feature nameMetallic colour (EF015260)
Feature valueNo
Feature nameWith Wi-Fi signal repeater (EF013509)
Feature valueNo
Feature nameModel (EF000010)
Feature valueSocket outlet CEE 7/3 (type F)
Feature nameNumber of socket outlets switchable (EF008814)
Feature value0
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value37 mm
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameNumber of active contacts (square) (EF017115)
Feature value0
Feature nameProtective contact (EF017116)
Feature valueOther
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameFor heavy conditions according to VDE (EFDE0005)
Feature valueNo
Feature nameNumber of active contacts (flat) (EF011999)
Feature value0
Feature nameNumber of active contacts (round) (EF011998)
Feature value2
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWith orientation lighting (EF008862)
Feature valueNo
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameWith function lighting (EF008861)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameInsulated mounting (EF001588)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameNumber of phases (EF000351)
Feature value1
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameLockable (EF000113)
Feature valueNo
Feature nameWith built-in bluetooth speaker (EF016914)
Feature valueNo
Feature nameWith miniature fuse (EF006571)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameWith enhanced contact protection (EF000389)
Feature valueYes
Feature nameWith loop through function (EF006604)
Feature valueYes
