LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS079296 LEGRAND MO-BASE TV/R-SAT 2M AL

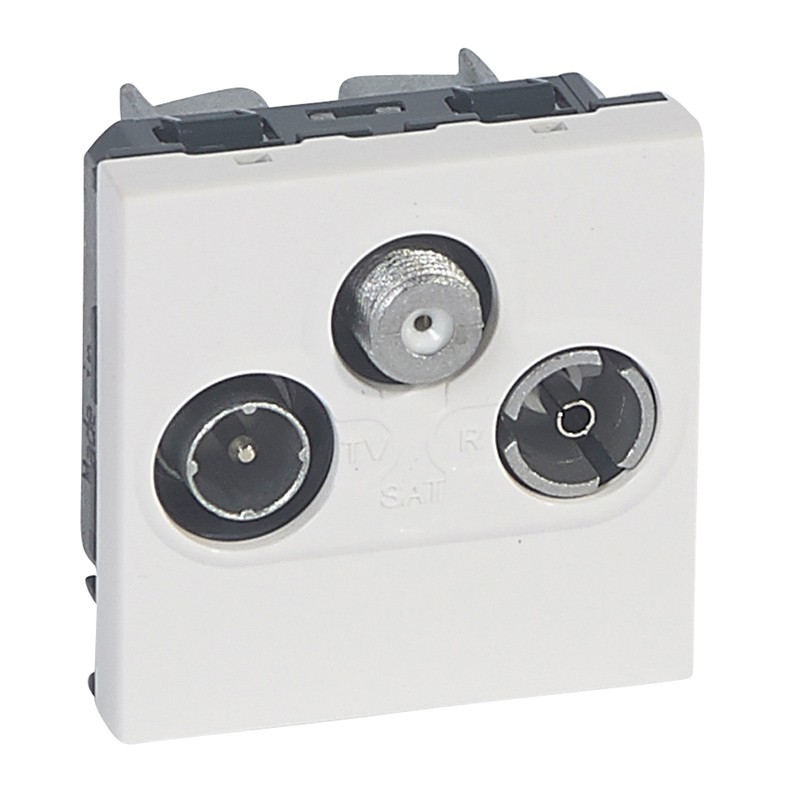

LEGRAND 079296 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

079296 LEGRAND MO-BASE TV/R-SAT 2M AL

Code: 079296

Manufacturer: LEGRAND

Description:

MO-BASE TV/R-SAT 2M AL
MO-BASED TV/R-SAT 2M TO THE
TV socket Mosaic - TV/R/SAT - screened - insulated - 2 modules - alu
TV/R-SAT Mosaic Base - 2mod - Aluminum

Categories:

  • Antenna and satellite technique > Antenna socket
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 395,76 €

Unit Price: 39,576 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)2.188
  • Weight (g)754.00
Product characteristics
Multi TV star sockets
TV-R-SAT - 2 modules
  • Low attenuation: 1.5 dB
  • Alu
  • Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - television sockets
  • For DVBT, Cablecast and satellite installation
  • UHD TV compatible
  • Class A shielded star sockets LTE Ready (4G protected)
  • Recommended coaxial cable: 17 VATC
  • Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch)
  • Visual checking of the connection
  • Meet EN 50083-4 and EN 50083-2 European directive
  • TV: male connector (Ø9.5 mm) - 5-68 / 120-862 MHz
  • R: female connector (Ø9.5 mm) - 87.5-108 MHz
  • SAT: ''F type'' connector - 950-2400 MHz

ETIM for 079296 Antenna and satellite receivers (EC000439)

Feature nameType of socket outlet (EF003497)
Feature valueTV/RD/SAT
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameTap loss at 860 MHz (EF000540)
Feature value1.5 dB
Feature nameDAB+ (EF011633)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueModule frame/grid
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameTap loss at 2150 MHz (EF003499)
Feature value2 dB
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameSuitable for cable modem (EF001547)
Feature valueNo
Feature nameSuitable for remote power supply (EF001548)
Feature valueYes
Feature nameNumber of outlets (EF000538)
Feature value3
Feature nameModel (EF000010)
Feature valueEnd socket
Feature nameCover (EF000055)
Feature valueCentral cover plate
Feature nameDevice depth (EF008810)
Feature value33 mm
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameRadio frequency band (EF017378)
Feature value87.5 MHz
Feature nameSAT frequency band (EF017379)
Feature value950 MHz
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueAluminium

DATASHEET - PDF

Title
Size
Type
079296 EN_078786.pdf
774 Kbytes
