LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS079228 LEGRAND MO-BUTTON DOUBLE ALU SHUTTER

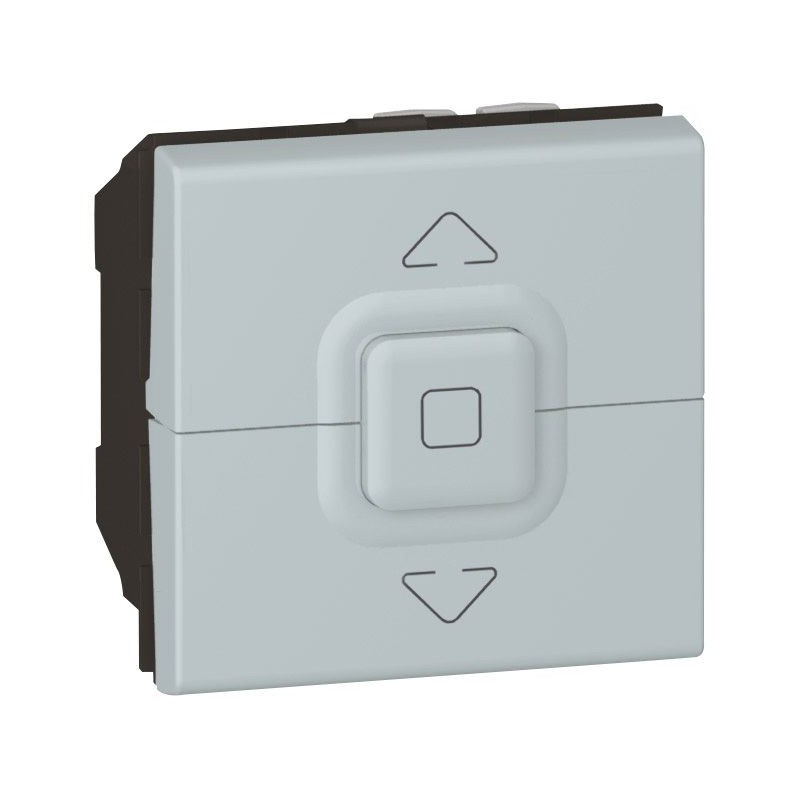

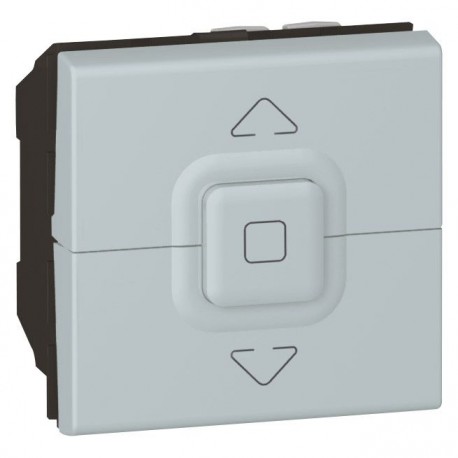

LEGRAND 079228 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

079228 LEGRAND MO-BUTTON DOUBLE ALU SHUTTER

Code: 079228

Manufacturer: LEGRAND

Description:

MO-BUTTON DOUBLE ALU SHUTTER
Mosaic blind push button, for 1 or several roller blinds. Aluminium

Categories:

  • Domestic switching devices > Venetian blind switch/-push button
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 52,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Double blind push button Mosaic, for 1 or several roller blinds. For direct control of motors: blinds and awnings. 6 AX, 250V, 50/60 Hz. It can be recessed in a box with a minimum depth of 40mm. 2 positions: up/down. No stop. Automatic terminal. Peeling 13 mm, terminal capacity 2x2.5mm2. IK04, IP41. Aluminum color.
Type of mountingBasic Element, Module Housing Bracket
Model1-pole push button
Number of poles1
Type of operationOther
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishBright
Attachment TypeOther
Connection MethodPlug clamp
Colouraluminium
RAL number (similar)7040
TransparentNo
Label Space/Print AreaYes
Suitable for protection grade (IP)IP41
Nominal current6 A
Nominal Voltage250 V
Number of buttons2
Number of modules (in case of modular design)2
Device width45 mm
Device height45 mm
Device Depth36 mm
Installation Depth24 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Antibacterial treatmentNo
Core cross-section2.5-2.5 mm²

ETIM for 079228 Domestic wiring accessories and controls (EC000044)

Feature nameMechanical controllable (EF005993)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueModule frame/grid
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameBuilt-in depth (EF000218)
Feature value24 mm
Feature nameNumber of buttons (EF003144)
Feature value2
Feature nameRAL-number (similar) (EF003882)
Feature value7040
Feature nameModel (EF000010)
Feature value1-pole push button
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP41
Feature nameDevice depth (EF008810)
Feature value36 mm
Feature nameElectronic controllable (EF006570)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value6 A
Feature nameColour (EF000007)
Feature valueAluminium
Feature nameMethod of operation (EF000006)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
079228 EN_077025.pdf
371 Kbytes
