079215 LEGRAND MO-CONM 10AX 2M TO SAVING 10M
079215
LEGRAND
10
MO-CONM 10AX 2M TO SAVING 10M

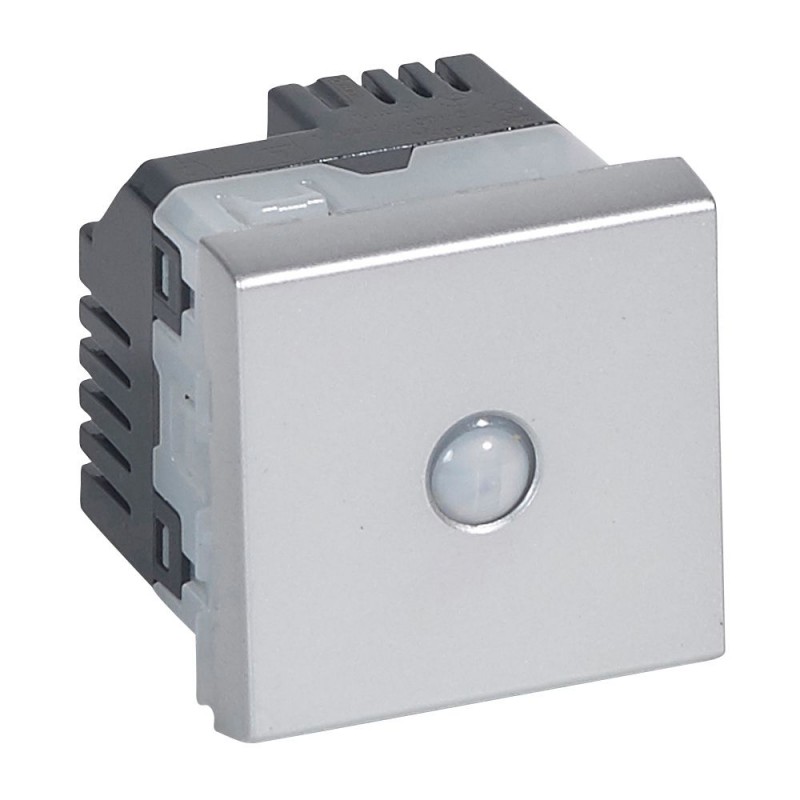

Energy saving switch Mosaic - 10 AX 250 V~ - alu
Mosaic Energy Saving Switch - 10AX - 250V~ - alu
Domestic switching devices > Movement sensor complete
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.235
- Weight (g)75.00
Energy saving switches
- Automatic terminals
- Are installed and work like conventional 2-way switches. In addition, they automatically switch off after 10 mins if no movement is detected by the built-in IR detection cell
- Detection field: 160°. Detection range: 8 m
- Compatible with any lamp:
- 12-150 W: incandescent and 230 V halogen lamps
- 12-150 VA: lamps with electronic or ferromagnetic ballast
- 8-30 W (or 650 mA): LED and CFL
- All types of lamps can be mixed on the same circuit
- Ideal for rooms where the light may be left switched on needlessly (child’s bedroom, box room)
- Alu
- All two-way switches with indicator have a terminal for neutral connection and have to be equipped with an indicator
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 74.7 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | Yes |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 600 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 130 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | No |
| RAL-number (similar) (EF003882) | 7040 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 10 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK02 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 0.05 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 32.1 mm |
| Temperature (EF001731) | -5 °C |
| Substation input (EF003876) | Yes |
| Colour (EF000007) | Aluminium |
| Width (EF000008) | 74.7 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | No |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Control current (EF003894) | 0.05 mA |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 150 W |
| Forced switch off (EF003920) | Yes |
| Surface protection (EF000139) | Other |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 47 Hz |
| Built-in depth (EF000218) | 32.1 mm |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | No |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Max. reach frontally (EF001322) | 8 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | No |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 0 lx |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 079215 EN_077015.pdf | 563 Kbytes |
 |
