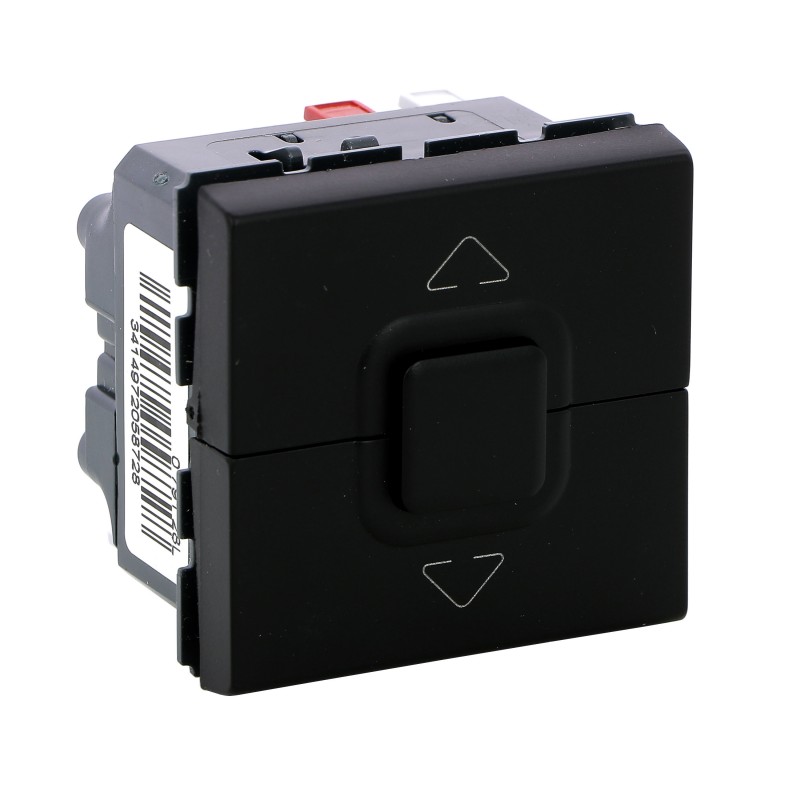

079128L LEGRAND MO-BUTTON DOUBLE SHUTTER NM

Code: 079128L

Manufacturer: LEGRAND

Description:

MO-BUTTON DOUBLE SHUTTER NM
Mosaic blind push button, for 1 or several roller blinds. Matte Black

Categories:

  • Domestic switching devices > Venetian blind switch/-push button
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 54,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Double blind push button Mosaic, for 1 or several roller blinds. For direct control of motors: blinds and awnings. 6 AX, 250V, 50/60 Hz. It can be recessed in a box with a minimum depth of 40mm. 2 positions: up/down. No stop. Automatic terminal. Peeling 13 mm, terminal capacity 2x2.5mm2. IK04, IP41. Matt black RAL 9017
Type of mountingBasic Element, Module Housing Bracket
Model1-pole push button
Number of poles1
Type of operationOther
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityDuroplast
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Attachment TypeOther
Connection MethodPlug clamp
ColourBlack
TransparentNo
Label Space/Print AreaYes
Suitable for protection grade (IP)IP41
Nominal current6 A
Nominal Voltage250 V
Number of buttons3
Number of modules (in case of modular design)2
Device width45 mm
Device height45 mm
Device Depth24 mm
Installation Depth36 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Display of markings on the connection terminalsYes
Antibacterial treatmentNo
Core cross-section2.5-2.5 mm²
Contains battery and/or accumulatorNo

ETIM for 079128L Domestic wiring accessories and controls (EC000044)

Feature nameMechanical controllable (EF005993)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueUrea formaldehyde
Feature nameMounting method (EF000003)
Feature valueModule frame/grid
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameBuilt-in depth (EF000218)
Feature value36 mm
Feature nameNumber of buttons (EF003144)
Feature value3
Feature nameModel (EF000010)
Feature value1-pole push button
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP41
Feature nameDevice depth (EF008810)
Feature value24 mm
Feature nameElectronic controllable (EF006570)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value6 A
Feature nameColour (EF000007)
Feature valueBlack
Feature nameMethod of operation (EF000006)
Feature valueOther
