LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS079041L LEGRAND MO-PLATE 1M NM

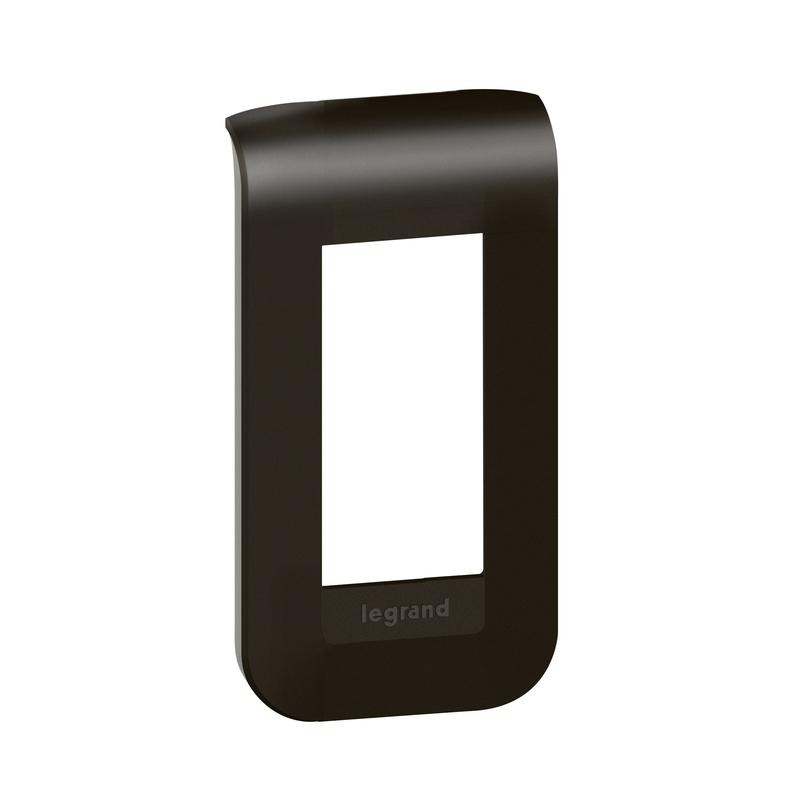

LEGRAND 079041L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

079041L LEGRAND MO-PLATE 1M NM

Code: 079041L

Manufacturer: LEGRAND

Description:

MO-PLATE 1M NM
1M NEGR MAT PLATE
Mosaic power base - 2P+T - 2 modules - Screw terminal - Matte black
Mosaic Plate - 1mod - Matte Black

Categories:

  • Domestic switching devices > Cover frame for domestic switching devices
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 75,18 €

Unit Price: 15,035 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Plate or frame of 1 Mosaic module in satin matte black RAL 9017. Halogen-free ABS material. UV resistance. IK04.

description
Plate or frame of 1 Mosaic module in satin matte black RAL 9017. Halogen-free ABS material. UV resistance. IK04. Self-extinguishing at 650º. Usage temperatures: -5°C to +35°C.

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of modules (in case of modular design)2
Number of interchangeable sockets0
Number of phases1
Printing/Markingnone
Connection MethodScrew-on terminal
With flip-top lidNo
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourBlack
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationYes
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Type of mountingRecessed mounted (plaster)
Attachment TypeHemming
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
With loop functionYes
With on/off switchNo
Rotated center insertNo
Nominal intensity16 A
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Device width45 mm
Device height45 mm
Device Depth37 mm
Min. depth of the recessed box40 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDENo
Installation Depth31 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-4 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-4 mm²
Cable HolderNot applicable
Connected ObjectNo

ETIM for 079041L Domestic wiring accessories and controls (EC000007)

Feature nameHeight (EF000040)
Feature value82 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSuitable for built-in installation (EF006745)
Feature valueYes
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameNumber of modules vertical (module system) (EF009572)
Feature value1
Feature nameNumber of modules horizontal (module system) (EF009571)
Feature value1
Feature nameMounting direction (EF003824)
Feature valueHorizontal
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameNumber of units vertical (EF008859)
Feature value1
Feature nameNumber of units (EF000074)
Feature value1
Feature nameRAL-number (similar) (EF003882)
Feature value9017
Feature nameNumber of units horizontal (EF008858)
Feature value1
Feature nameSuitable for subfloor installation duct box (EF005864)
Feature valueNo
Feature nameBuilt-in height (EF000332)
Feature value0 mm
Feature nameWith mounting grid (EF012039)
Feature valueNo
Feature nameSuitable for wall duct (EF006572)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameDepth (EF000049)
Feature value9 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
Feature nameWidth (EF000008)
Feature value40 mm
