LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS078780 LEGRAND MO-BASE TV SIMPLE TYPE F 1M BL

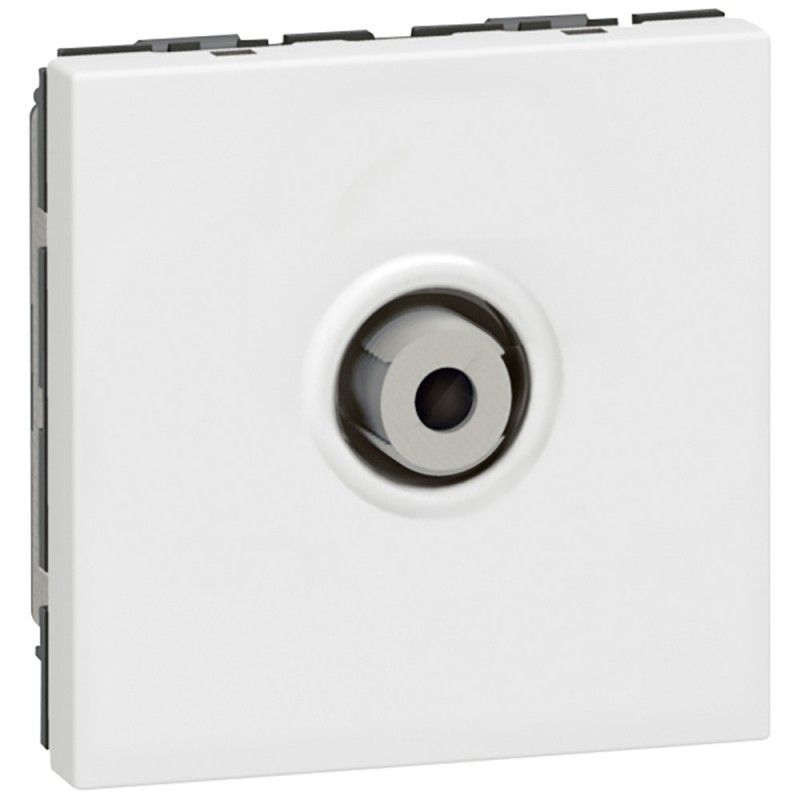

LEGRAND 078780 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

078780 LEGRAND MO-BASE TV SIMPLE TYPE F 1M BL

Code: 078780

Manufacturer: LEGRAND

Description:

MO-BASE TV SIMPLE TYPE F 1M BL
MO-TOMTV SIMPLE - TYPE F
TV socket Mosaic - single type "F" - screw in - 2 modules - white
Mosaic simple "F" type TV base - 2mod - screw - White

Categories:

  • Antenna and satellite technique > Antenna socket
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 173,24 €

Unit Price: 17,324 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)2.283
  • Weight (g)434.00
Product characteristics
Single TV star sockets
  • Low attenuation: 1 dB
TV ''F-type''
  • White - 2 modules
  • Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - television sockets
  • For DVBT, Cablecast and satellite installation
  • UHD TV compatible
  • Class A shielded star sockets LTE Ready (4G protected)
  • Recommended coaxial cable: 17 VATC
  • Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch)
  • Visual checking of the connection
  • Meet EN 50083-4 and EN 50083-2 European directive
  • TV: male connector (Ø9.5 mm) - 5-68 / 120-862 MHz
  • R: female connector (Ø9.5 mm) - 87.5-108 MHz
  • SAT: ''F type'' connector - 950-2400 MHz

ETIM for 078780 Antenna and satellite receivers (EC000439)

Feature nameType of socket outlet (EF003497)
Feature valueTV
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP21
Feature nameTap loss at 860 MHz (EF000540)
Feature value1 dB
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameDAB+ (EF011633)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueModule frame/grid
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameTap loss at 2150 MHz (EF003499)
Feature value1.5 dB
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameMin. depth of built-in installation box (EF012278)
Feature value23.5 mm
Feature nameSuitable for cable modem (EF001547)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSuitable for remote power supply (EF001548)
Feature valueYes
Feature nameNumber of outlets (EF000538)
Feature value1
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameModel (EF000010)
Feature valueEnd socket
Feature nameCover (EF000055)
Feature valueCentral cover plate
Feature nameDevice depth (EF008810)
Feature value35.5 mm
Feature nameImpact strength (EF004293)
Feature valueIK03
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueWhite

DATASHEET - PDF

Title
Size
Type
078780 EN_078780.pdf
318 Kbytes
