078761 LEGRAND MO-BASED USB2.0 1M BL TORN
078761
LEGRAND
10
MO-BASED USB2.0 1M BL TORN

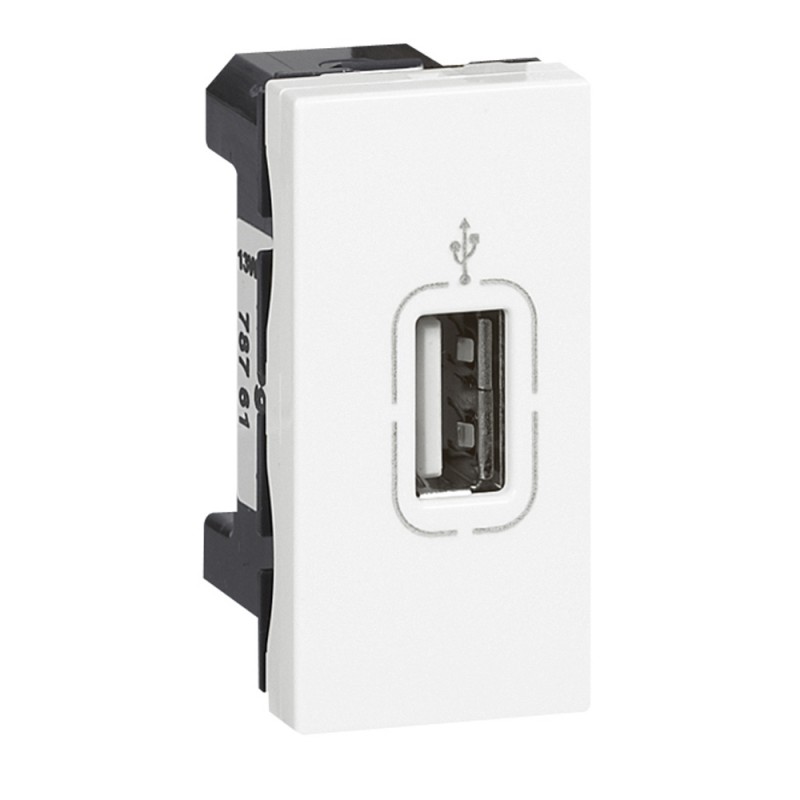

USB socket Mosaic - 1 module - white
Mosaic database - USB 3. 0 female - 1mod - bolt connection - White
Domestic switching devices > Insert/cover for communication technology
VARIOUS VDI
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.547
- Weight (g)35.00
- Used to bring connections closer to the user
- For connecting USB devices (scanner-printer, external hard disk)
- Max. cable length: 5 m
- Recommended cable: USB A
- 1 module
- Max. cable length: 5 m
- Recommended cable: USB A USB 2.0. Cross-section: 1 mm²
- White
- Mosaic :
| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | Yes |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| Utilization (EF000133) | USB |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 078761 EN_078761.pdf | 101 Kbytes |
 |
