LEGRANDVARIOUS VDI078755 LEGRAND MO-BASE XLR 3POL H 2M TORN BL

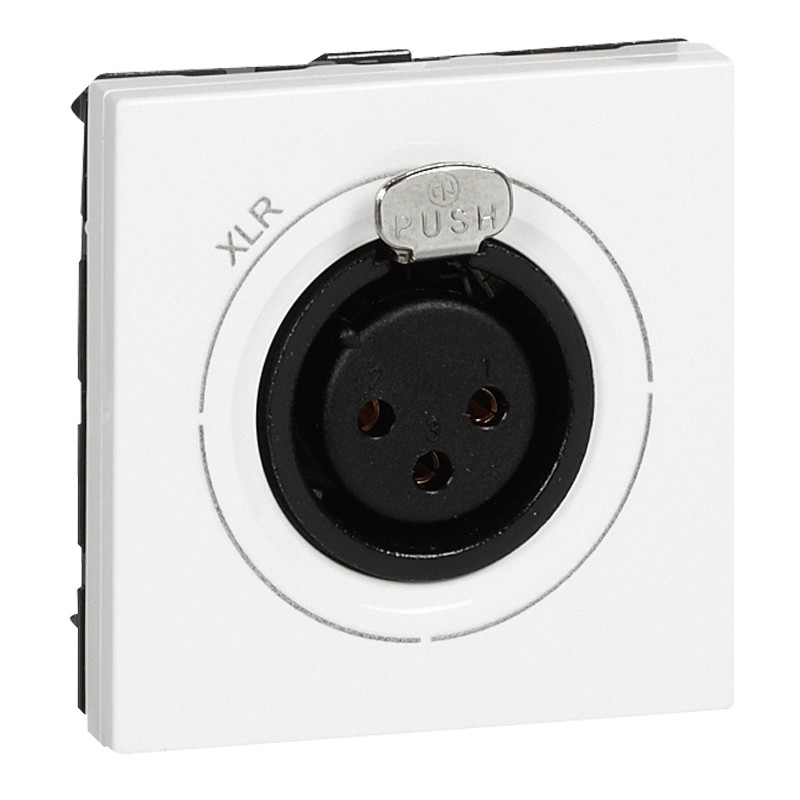

LEGRAND 078755 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

078755 LEGRAND MO-BASE XLR 3POL H 2M TORN BL

Code: 078755

Manufacturer: LEGRAND

Description:

MO-BASE XLR 3POL H 2M TORN BL
MO-BASE XLR 3POL H 2M BL TORN
Audio socket Mosaic - XLR 3-pin - female - 2 modules - white
Mosaic audio base - XLR 3 poles - female - 2mod - White

Categories:

  • Domestic switching devices > Insert/cover for communication technology
  • LEGRAND > VARIOUS VDI

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 52,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.677
  • Weight (g)62.00
Product characteristics
3-pole XLR sockets
  • Provide the stereo link for microphone, amplifier, mixing console, etc.
  • Recommended cable: 1 audio pair 0.14 mm² to 0.5 mm² shielded
  • Max. cable length: 50 m (without amplifier)
  • 2 modules
  • Mosaic
  • White
General characteristics
Mosaic™ Programme mechanisms - audio and video sockets

ETIM for 078755 Domestic wiring accessories and controls (EC000018)

Feature nameWith dust cover (EF003893)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameShielded buses (EF002444)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameShielded housing (EF002445)
Feature valueNo
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameWith imprint (EF004048)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameLuster terminal (EF003868)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameUtilization (EF000133)
Feature valueXLR
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP40
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameImprintable label (EF001519)
Feature valueWithout indication field
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameOutlet direction (EF000323)
Feature valueStraight
Feature nameColour (EF000007)
Feature valueWhite
Feature nameSuitable for number of connectors (EF001579)
Feature value1

DATASHEET - PDF

Title
Size
Type
078755 EN_078755.pdf
362 Kbytes
