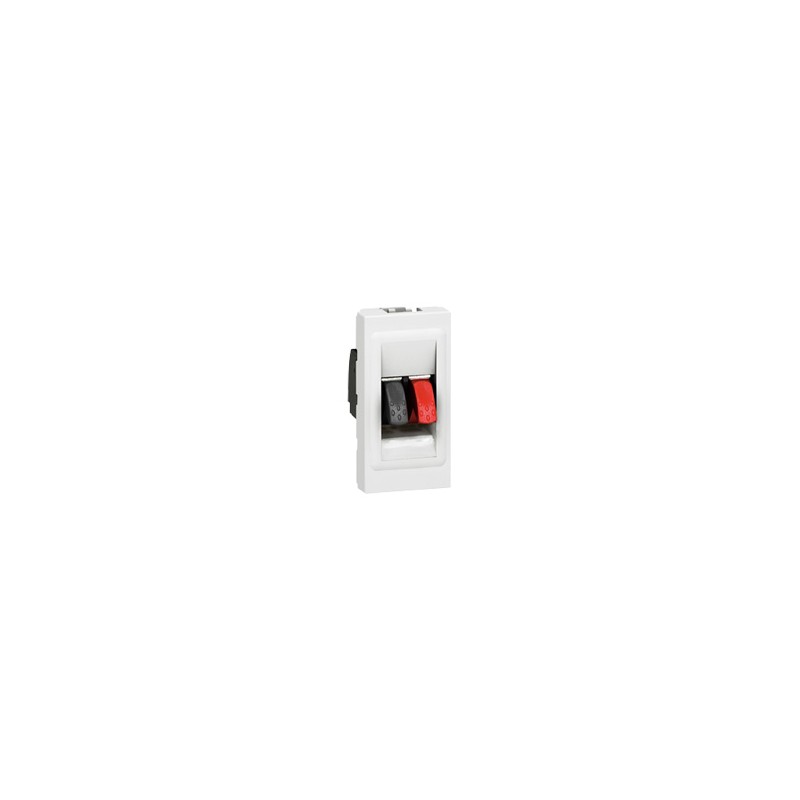

078750 LEGRAND MO-BASED SPEAKER 1M BL
078750
LEGRAND
MO-BASED SPEAKER 1M BL
Audio socket Mosaic - loudspeaker socket - 4 mm² terminal - 1 module - white
Mosaic speaker base for terminal strip 4mm² - 1mod - White
Domestic switching devices > Insert/cover for communication technology
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)10
- Volume (dm3)2.189
- Weight (g)172.00
- Terminal 4 mm²
- Mosaic
- White
| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | Yes |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Utilization (EF000133) | Loudspeaker connection |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 31.4 mm |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 078750 EN_078750.pdf | 125 Kbytes |
 |
