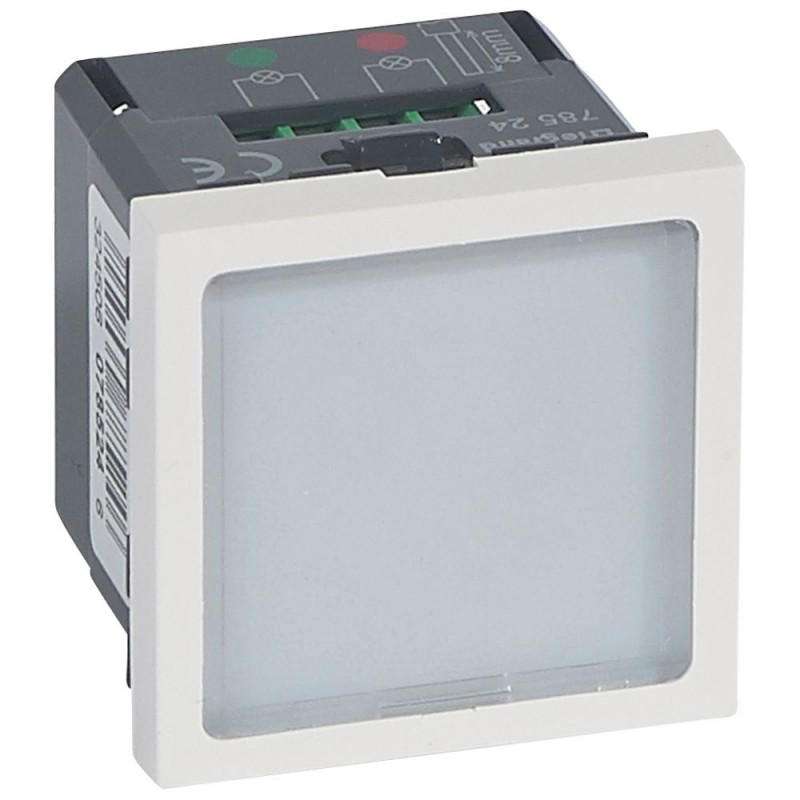

078524 LEGRAND MO-BEACON, TWO-TONE
078524
LEGRAND
10
MO-BEACON, TWO-TONE
Illuminated signs Mosaic 230 V~ - red/green LEDs - 2 modules - white
Mosaic Green/Red LED Light Signaling - 2 states - 2mod - White
Domestic switching devices > Information light signal for domestic switching devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)0.758
- Weight (g)219.00
- Mechanisms integrating LEDs and a pivoting window that can take preprinted labels
- Customised labels can be printed using a simple text editor
- Supplied with transparent paper to personalize labels
- Signs with 2-state LEDs with choice of green or red configurable on the mechanism (1 W) - 2 modules
- All the illuminated functions are equipped with very low consumption LEDs with an estimated service life of 100,000 hours
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 1 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Lamp type (EF002423) | LED non-replaceable |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Engage (snap) |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 230 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | Yes |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Colour light source (EF001402) | Red/green |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 41.3 mm |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Application as button (EF003912) | No |
| Device height (EF008809) | 45 mm |
| Lamp holder (EF000048) | Other |
| Colour (EF000007) | White |
| With exchangeable symbol (EF006748) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 078524 EN_078521.pdf | 817 Kbytes |
 |
