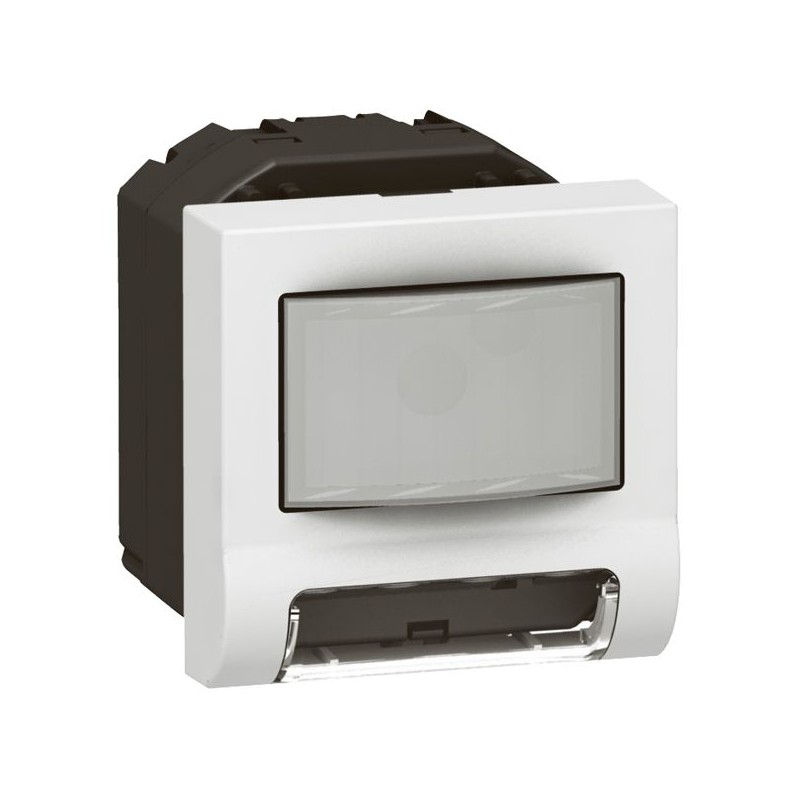

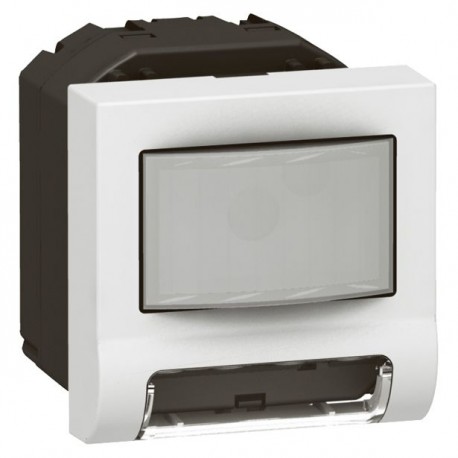

078511 LEGRAND MOSAIC II DETECT MOV+BEACON
078511
LEGRAND
MOSAIC II DETECT MOV+BEACON
Illuminated obstacle indicator Mosaic - 2 modules - white
Mosaic Obstacle Light Indicator - 2mod - White
Domestic switching devices > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.547
- Weight (g)80.00
- Combination of automatic switches and illuminated signalling
- Mechanism equipped with an infrared detection cell and a LED beam
- To be installed close to the floor (next to a socket for example)
- When someone passes, the mechanism detects movement and switches the light on
- Ideal to illuminate a corridor at night without dazzling people, or to highlight possible danger
- Equipped with an audible signal that can be deactivated (when product is used for lighting) or not (so as to indicate danger)
- Mechanism equipped with an infrared detection cell and a LED beam
- To be installed close to the floor (next to a socket for example)
- When someone passes, the mechanism detects movement and switches the light on
- Ideal to illuminate a corridor at night without dazzling people, or to highlight possible danger
- Equipped with an audible signal that can be deactivated (when product is used for lighting) or not (so as to indicate danger)
- Stand-alone automatic lighting devices which allow the patient to get their bearings and make their way to the bathrooms
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 30 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 180 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 30 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 0.013 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 35 mm |
| Temperature (EF001731) | 0 °C |
| Substation input (EF003876) | Yes |
| Colour (EF000007) | White |
| Width (EF000008) | 45 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | Yes |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP41 |
| Material (EF002169) | Plastic |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Control current (EF003894) | 0.013 mA |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 1.3 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 47 Hz |
| Built-in depth (EF000218) | 32.8 mm |
| Remote operation (EF003848) | Yes |
| Constant light control (EF003863) | No |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 3 m |
| Max. reach frontally (EF001322) | 8 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 2.5 lx |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 078511 EN_078511.pdf | 543 Kbytes |
 |
