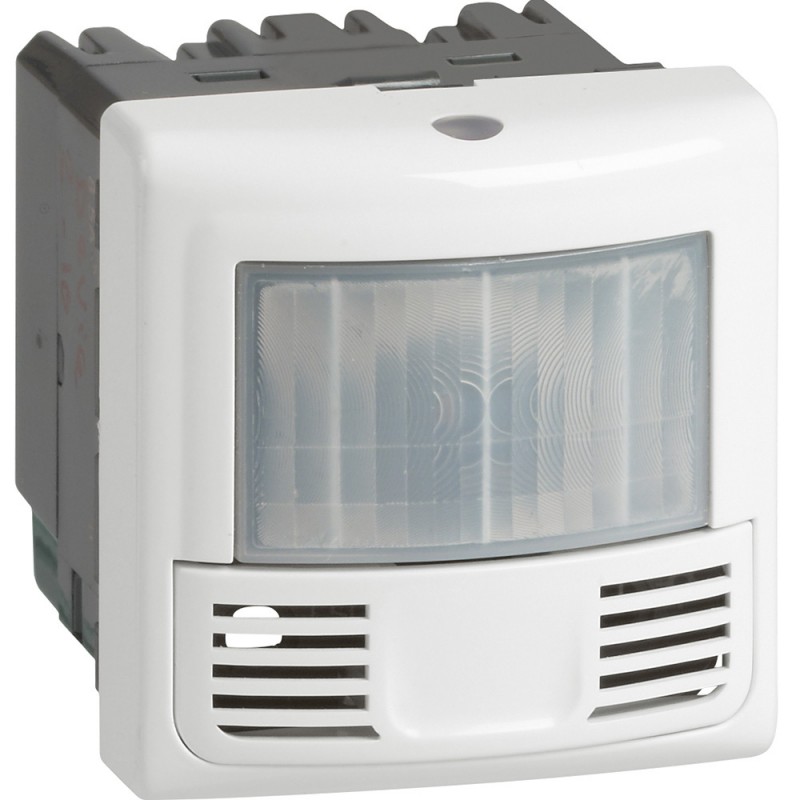

078486 LEGRAND DUAL DETECTOR 180 ° RANGE:8M
078486
LEGRAND
DUAL DETECTOR 180 ° RANGE:8M
180° switch sensor Mosaic - Dual-tech - vacancy sensor - IP41 - white
Mosaic standalone detector - recessed or surface-mounted - 15m² - IR+ultrasound
Domestic switching devices > Sensor element for movement sensor
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.229
- Weight (g)68.00
Dual technology wall, flush-mounting Lighting Management sensors, 180°
- Mosaic
- Infrared and ultrasonic detection, range 8 m
- Recommended fixing height: 1.2 m
- IP 41
- Consumption: 0.2 W on standby
- Integrated push-button
- For installation in box, depth 40 mm min., or in surface-mounting box Cat.No 0 802 81
- 2 modules
- Check presence and light level continuously, switch off when there is sufficient natural light
- Automatic switch-on/off (factory setting)
- Precise on-site adjustment using configuration tool
- Connect to controllers by cord or RJ 45 cable or BUS/SCS cable to be fitted with RJ 45 connector Cat.No 0 488 72
| Feature Name | Feature Value |
|---|---|
| Suitable for wireless transmission (EF001198) | No |
| Staircase light controller (EF001098) | Yes |
| With orientation lighting (EF008862) | No |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Mounting height (EF003874) | 1.2 m |
| Mounting method (EF000003) | Flush mounted |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Min. switch-on time (EF006589) | 30 s |
| Combination movement sensor/push button switch (EF016109) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Detection angle horizontal (EF006582) | 0 ° |
| Compatible with Google Assistant (EF014926) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Diameter reach on floor (EF003843) | 6 m |
| Networkable (EF003904) | Yes |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Operation mode switch (EF004530) | No |
| Model (EF000010) | Movement sensor |
| Animal zone (EF006311) | No |
| Constant light control (EF003863) | Yes |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Max. reach sideways (EF001323) | 3 m |
| Max. reach frontally (EF001322) | 8 m |
| Max. duty cycle (EF006590) | 256 min |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Colour (EF000007) | White |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 078486 EN_L4658N.pdf | 381 Kbytes |
 |
